Textile strope whit spliced eye| E-Oeil® 5
Textile strope whit spliced eye| E-Oeil® 5
POA
Couldn't load pickup availability
20155

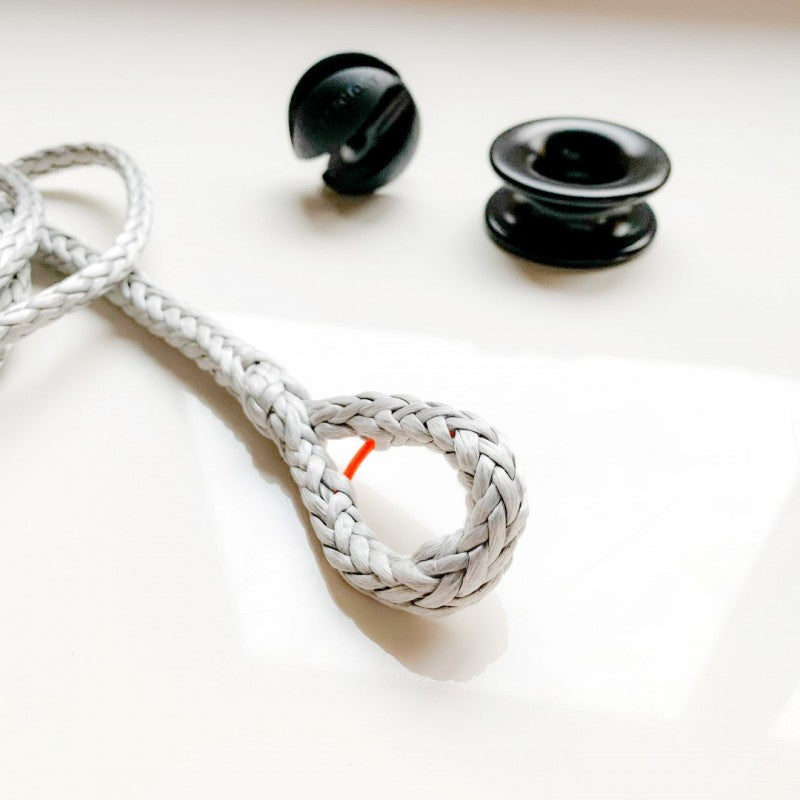

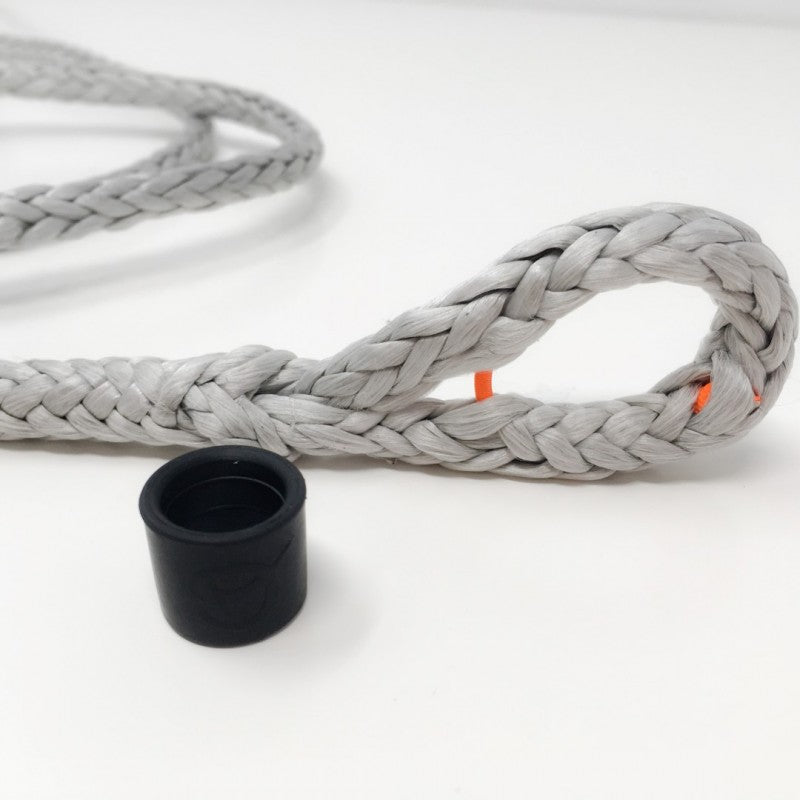

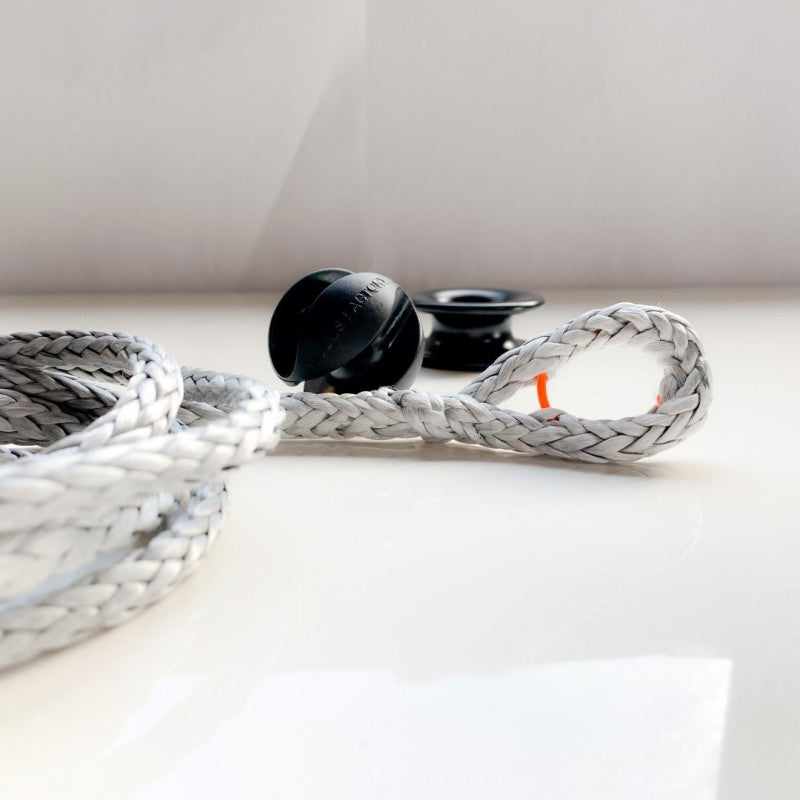

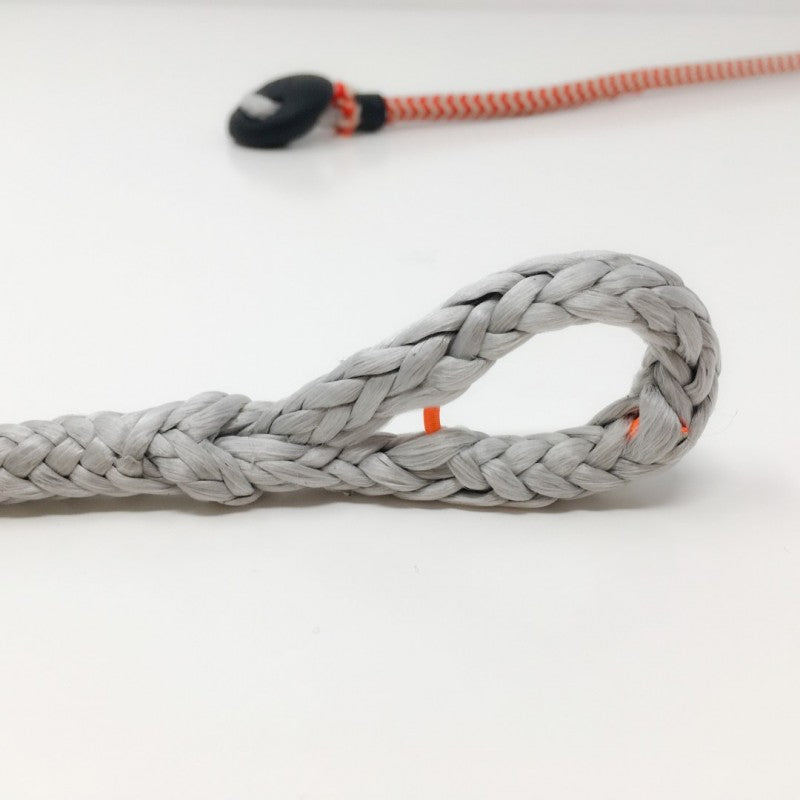

The E-eye strop is a universal soft strop in Dyneema®, ready to be used, designed to quickly attach shackle, snap-shackle, etc. It benefits from an elastic link of retaining Nub, friction ring
This product is delivered with the Block® Nodus Factory ring.
Padding made by our team in our premises.
Materials : Dyneema® / UHMWPE / Flexible TPE
Product Details
|
Product Name |
Breaking Load |
Ø Rope |
Strop Length |
Ø Eye |
Ø Rope |
Sail Aera |
|---|---|---|---|---|---|---|
| Strop | Dyneema | Straight | Useful | Halyard/Listening | 40 nds | |
| Kg | mm | cm | mm | mm | m2 | |
| E Oeil 3 | 900 | 3 | 50 | 25 | 6 | 25/40 |
| E Oeil 4 | 1800 | 4 | 60 | 30 | 8 | 40/60 |
| E Oeil 5 | 2800 | 5 | 75 | 35 | 10 | 70/90 |
| E Oeil 6 | 3900 | 6 | 90 | 40 | 12 | 90/130 |
| E Oeil 7 | 5900 | 7 | 105 | 45 | 14 | 130/180 |
Description
The eye strop is a universal soft strop, ready to be used, designed to quickly attach shackle, snap-shackle, Friction Ring, Nodus Nub, etc. The strop can be spliced directly to the halyard or sheet core.
This product is delivered with the Block® Nodus Factory ring and can be custom ordered.
+ Uses
- E Œil ¬ Textile universal eye strop ready for attaching onto halyards or sheets
- Multi-purpose eye strop for quick connection to shackle, snap-shackle, low-friction ring, etc.
- Easy to use ¬ Choker ¬ Rapid connector
Data sheet
- Strop, 100% Dyneema® Nodex R2 pre-stretched, coated ¬ Light grey / black
- Resistance certified by Veritas
"System Block®"
- Block®, clamping and holding ring, made of soft Thermoplastic TPE, which allows to quickly block and fix a low friction ring.
Avantages
- Flexible multi-purpose soft shackle, to ensure perfect in-axis loading
- Very UV-resistant
- Excellent chafe resistance
- Corrosion-free
- No damage to decks
