MsB®, textile shackle with Dyneema® diamond knot locking:
Nodusfactory® manufactures this high-quality textile shackle in pre-stretched Dyneema® sheath.
The ideal textile connector for your sailboat's fittings.
Greater durability, weight and reliability than stainless steel carabiners or shackles.
Our textile shackles are made from heat-coated Dyneema® braid, for greater resistance to fiber wear over time.
Versatility:
Replaces metal shackles, knots and karabiners.
Numerous applications: halyards, sheets, borders, barber-haulers, etc.
Description
The Ms B® textile shackle is a versatile textile connector that can be used for many sailing applications, including :
It can be used forhalyards, sheets, tacklines, barber-haulers, downhauls, topping lift and more.
Creating attachment points: e.g. for blocks, jib sheets, reefing lines, etc.
Caution: Ms B® shackles are more difficult to open under heavy loads than textile shackles with T-bone® or T-close® connectors.
Ease of use:
Quick installation and handling.
Reliable, easy-to-tighten bosco locking knot.
Opening pull and captive system.
Performance and durability:
Extremely light: up to 80% lighter than steel.
Resistant: will not rust, corrode or deteriorate under UV light.
Low friction: reduces rope wear and improves performance.
Durable: designed for intensive use in harsh marine conditions.
Data sheet

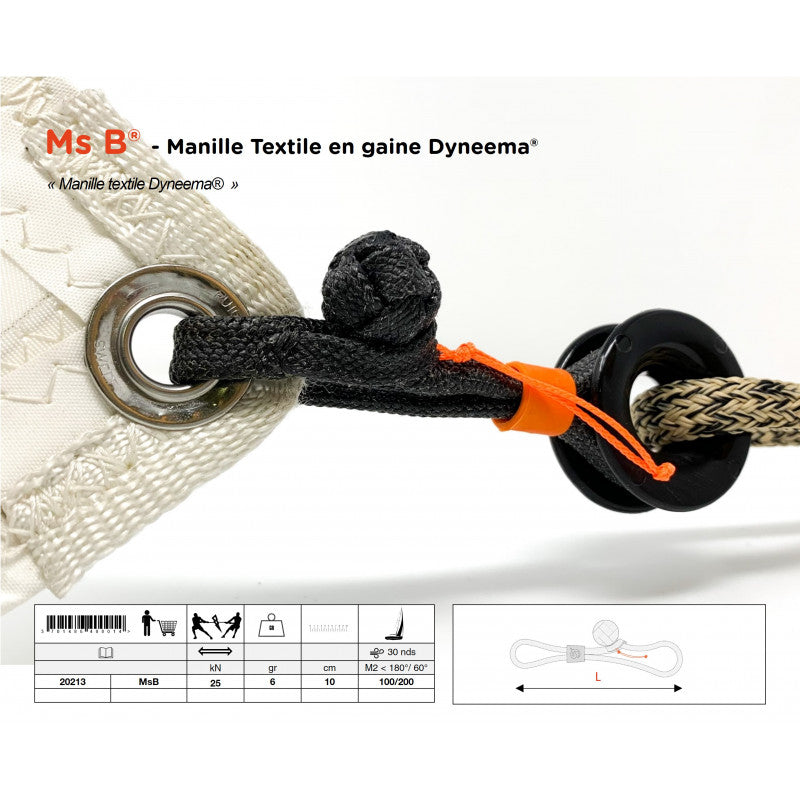

Ms B® pre-stretched Dyneema® textile shackle
Components:
- Dyneema® sheath :
- 100% Dyneema® SK78
- Lightweight, ultra-strong synthetic fiber
- Grade SK78: one of the most resistant
- 48fx pre-stretched: improved strength and dimensional stability
Ensimé: coating for improved abrasion resistance and durability
RingBlock® :
- Soft thermoplastic TPE
- Flexible and impact-resistant
- Provides quick locking and fastening
Features:
- 7 mm sheath diameter
- Breaking load: 25 kN
- Weight: 14 g
- Abrasion resistance: Excellent
- UV resistance: Excellent
- Water resistance: Excellent
- Temperature range: -40°C to +80°C
Applications :
- Sails
- Fittings
- Hiking
- Climbing
Performance and durability:
- Extremely light: up to 80% lighter than steel.
- Resistant: will not rust, corrode or deteriorate under UV light.
- Low friction: reduces string wear and improves performance.
- Durable: designed for intensive use in harsh marine conditions.
Advantages :
- Weight and performance savings for the boat.
- Increased safety: reliable bosco stopper knot.
- Versatile and adaptable to many applications.
- Safety and performance:
- Proven, reliable bosco stopper knot.
- High breaking load of 25 kN.
- Designed and manufactured in France.
Additional information:

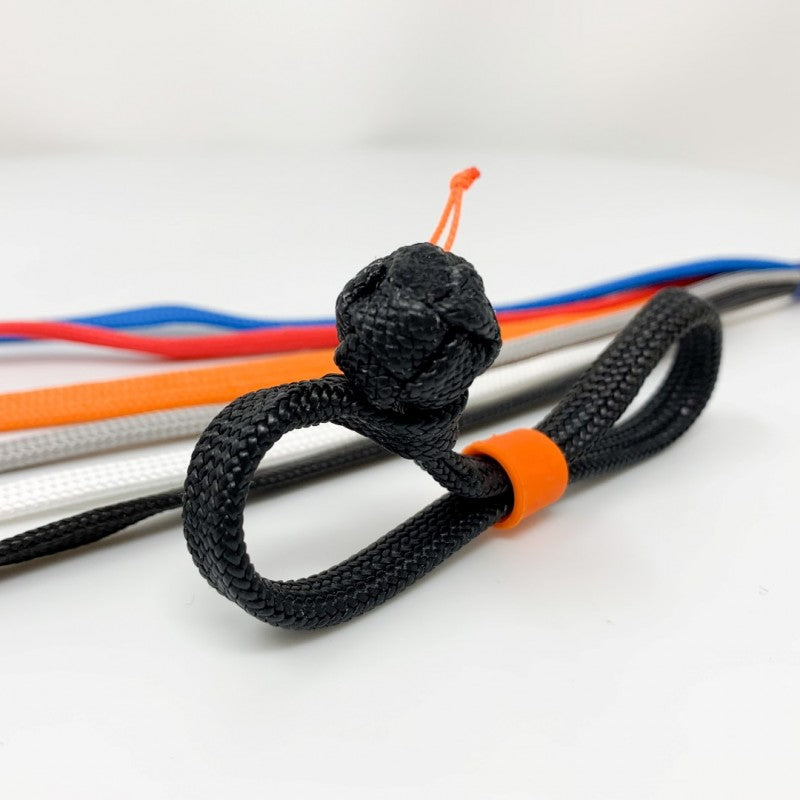

- Available in various sizes and colors.
- Complementary accessories available: lugs, pulleys, friction rings, etc.
Applications : Sailing Fittings Hiking Climbing And much more...
