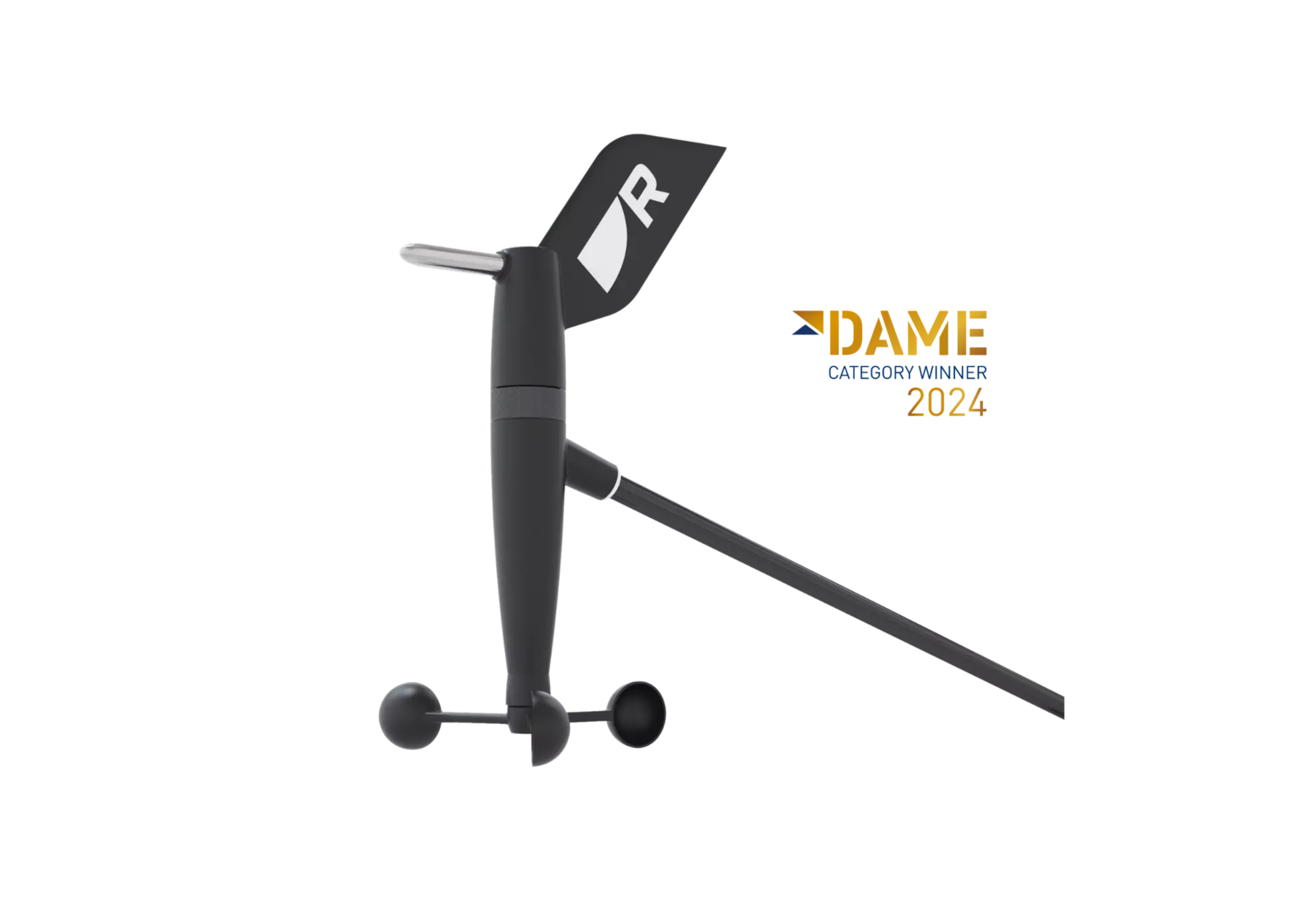

RSW - Smart Wind Transducer, Short Arm with 30m Cable
RSW - Smart Wind Transducer, Short Arm with 30m Cable
Couldn't load pickup availability
| Physical | |
|---|---|
| Length |
Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in) |
| Width |
Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in) |
| Height |
Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in) |
| Power | |
|---|---|
| Nominal supply voltage |
12 V dc (via SeaTalk NG) |
| Operating voltage range |
9 V to 16 V dc |
| Power Consumption |
< 100 mW |
| Fuse rating |
Ensure that the SeaTalk NG backbone is protected by a 5 A fuse |
| NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: | |
| Environmental | |
|---|---|
| Operating temperature range |
-25°C to +55°C (-13°F to +131°F) |
| Storage temperature range |
-30°C to +70°C (-22°F to +158°F) |
| Relative humidity |
Masthead: 100% Below deck: up to 93% @ 40°C |
| Waterproof rating |
Wind transducer: IPx6/IPx7 Wired gateway: IPx3 |
| Wind |
115 mph (185 kph) |
| Vibration |
EN 60945:2002 (exposed) |
RSW Wired
The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.
Award winning, wind sensor technology
Designed for sailors, by sailors, the transducer is lightweight but extremely strong. The 3D motion sensor accounts for pitch and roll while Raymarine Smart Wind technology compensates for mast twist and bend and up-wash against the sails.
Winner of the prestigious Dame Award, the jury of marine industry experts said; "Raymarine's completely rethought approach to wind transducers is impressive at every level, from its ease of use and physical design to its pre-calibrated operating software."
Install & Go!
Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
Finely Tuned
Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.
Sail Smarter
Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.
