Pulley for Sailboat | Block-Loop Nub® BL R-Nub 60c
Pulley for Sailboat | Block-Loop Nub® BL R-Nub 60c
POA
Couldn't load pickup availability
20382+20073

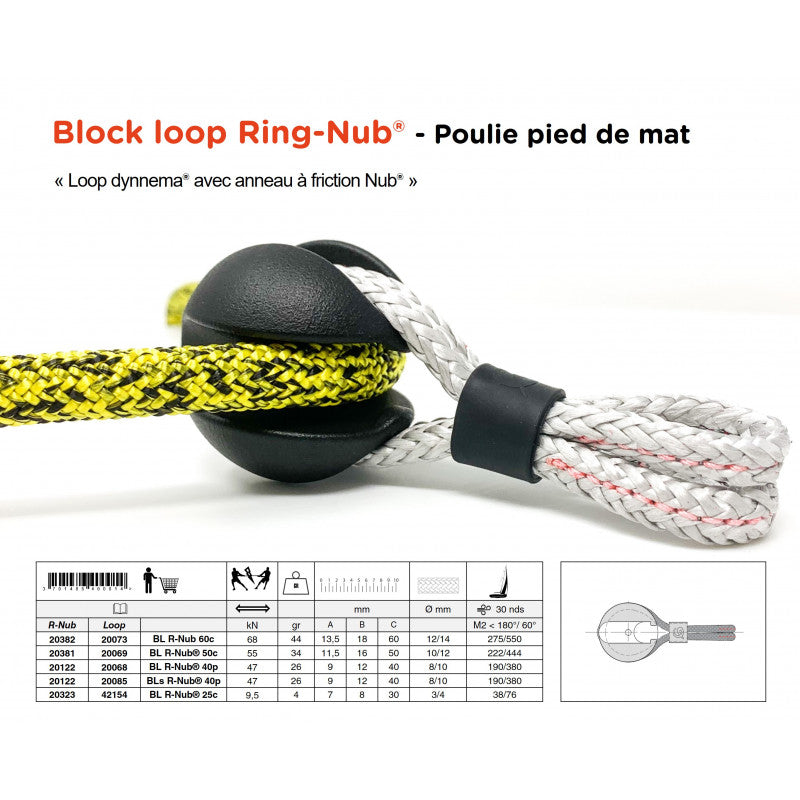

The mast foot pulley, Block loop Ring-Nub®, is a pivoting clevis pulley made of Dyneema® textile.
.This high-load, low-friction Ring-Nub pulley will be ideal at the foot of a mast.
Backstay pulley, masthead sheaves.
Supplied with the locking ring, a product from the Plug and Sail™ range.
Product Details
| Description | Breaking Load | Ø Rope |
|---|---|---|
| Connector | Running | |
| KG | mm | |
| NUB 40 HF | 4700 | 8/10 |
| Connector Nodex | Size | Beaking Load |
|---|---|---|
| cm | kg | |
| L Nub | 10 | 3800 |
| Ls Nub | 10 | 3800 |
Description

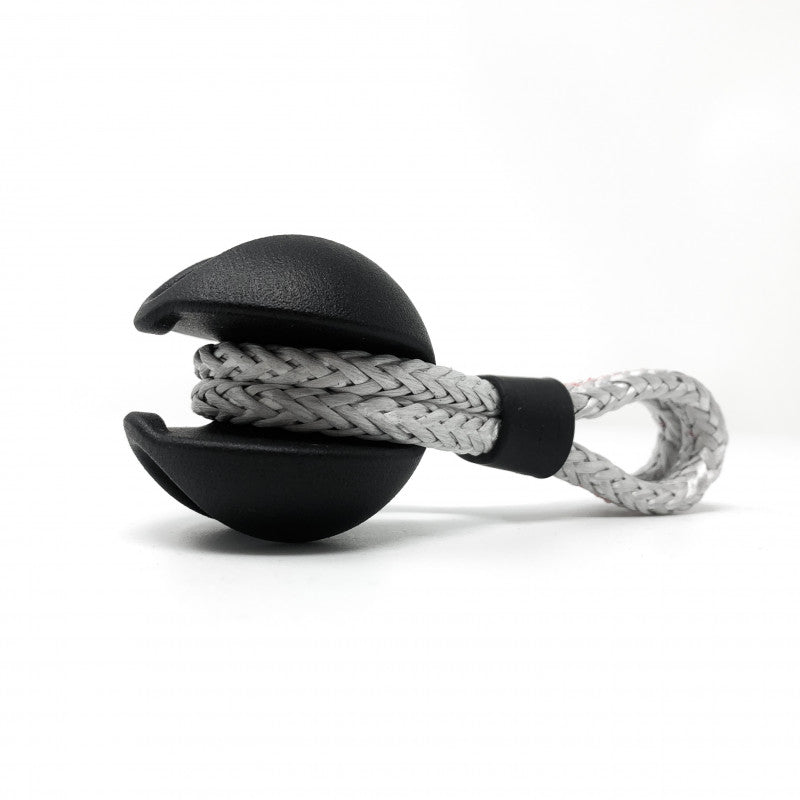

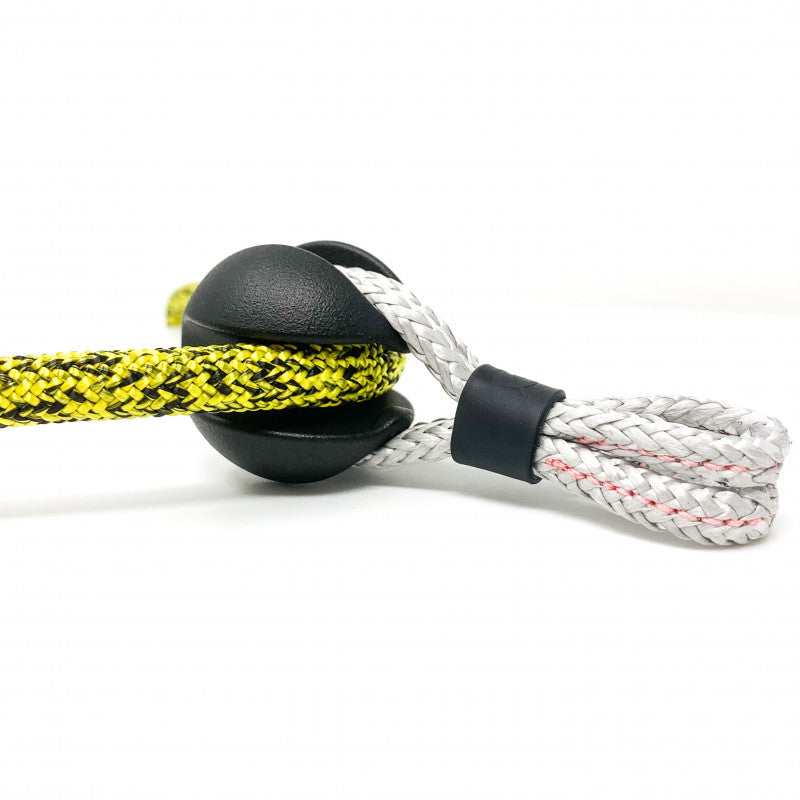

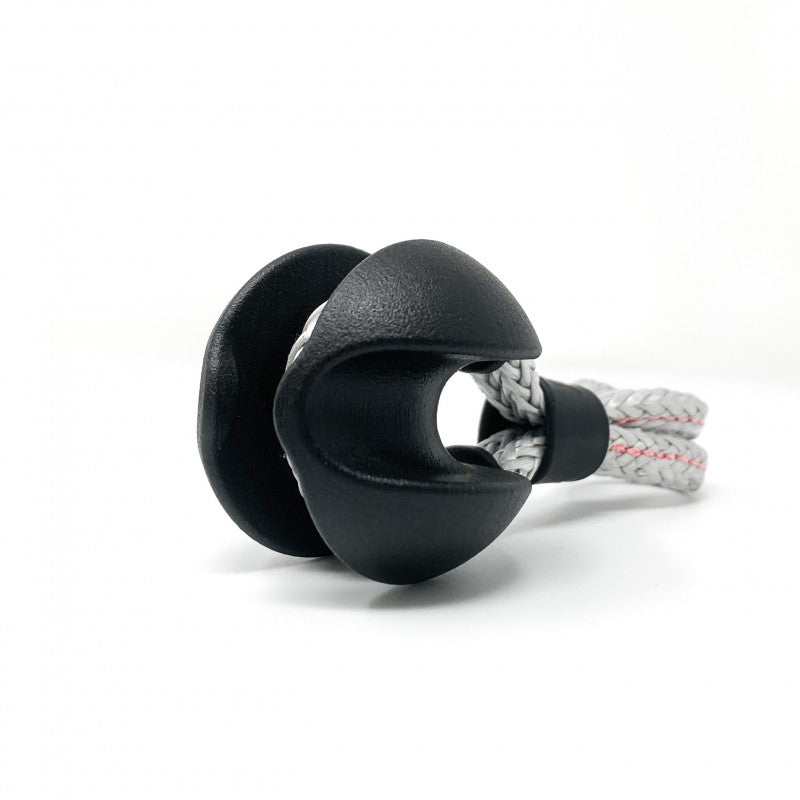

The Ring-Nub® Block loop is a mast foot pulley with textile connector for heavy loads.
- Used in a wide range of applications
- .
Use
- Ideal for mouflage, palan-cascade (backstay, vang, backstay), corner return, or even as a cap-de-sheeps on standing rigging (shrouds, under shrouds).
- Easily installed anywhere on deck, chainplate, fargue rail, mast foot...thanks to our textile connectors
Reparability
- Reparability category 3
Repairability index - (Link explanatory table)
Find all information on load forces as a function of deflection angle ICI
Data sheet
- Nodus-Nub « Low friction » ¬ in Self-lubricating technical plastic resin ¬ black
- Dyneema® textile connector
Nodus & tricks
- The textile Hook friction is captive on sheets and braces so choose it for your Spinnaker sheets returns.
Advantages
- Excellent weight/strength ratio
- High impact and UV resistance
- Low friction coeficient for all type of rope, thanks to its inherent lubrification
- 2 times lighter than the aluminium and 6 time lighter than the steel
- Completely secured thanks to its mobile rigid strand
- Reliable, maintenance free
