ePropulsion

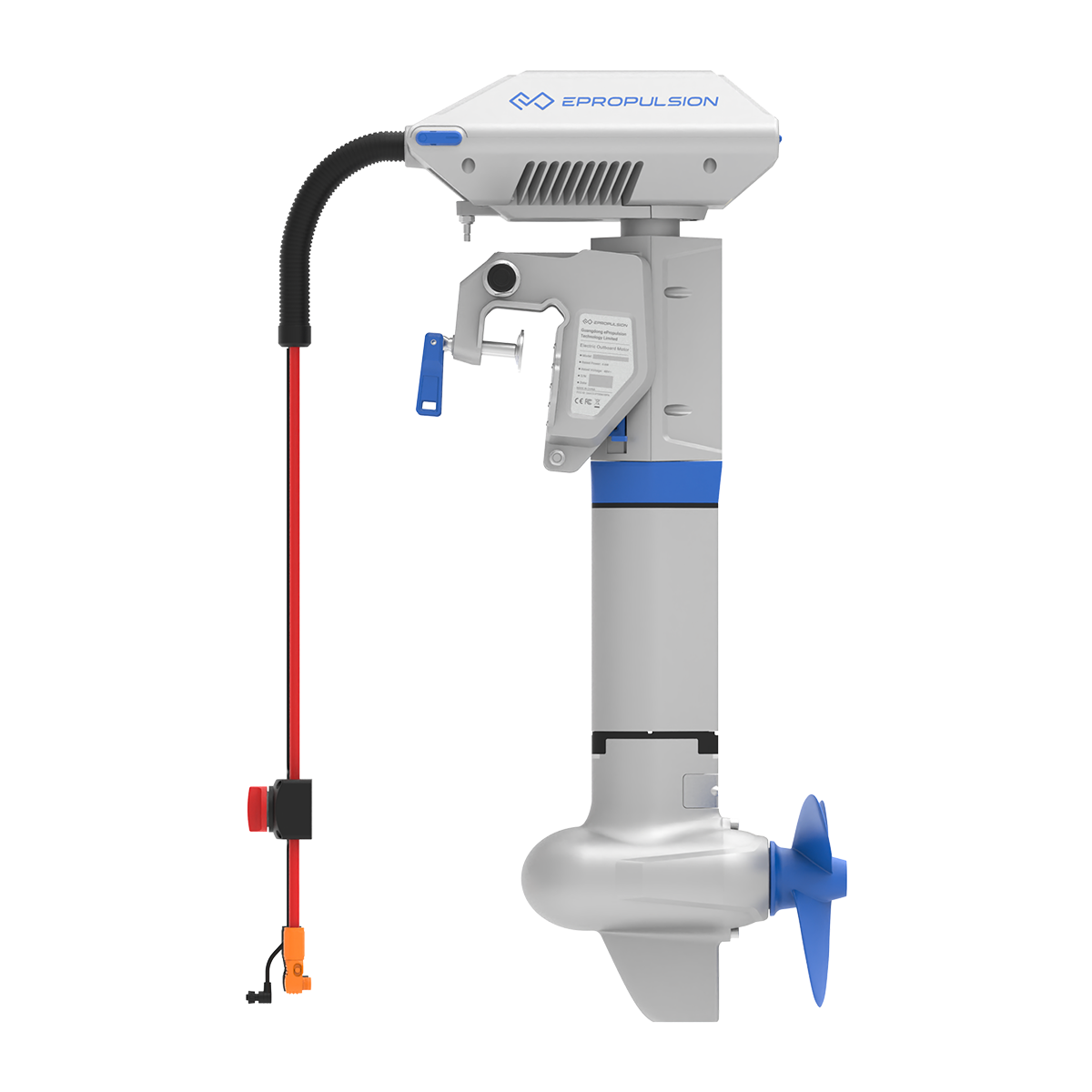

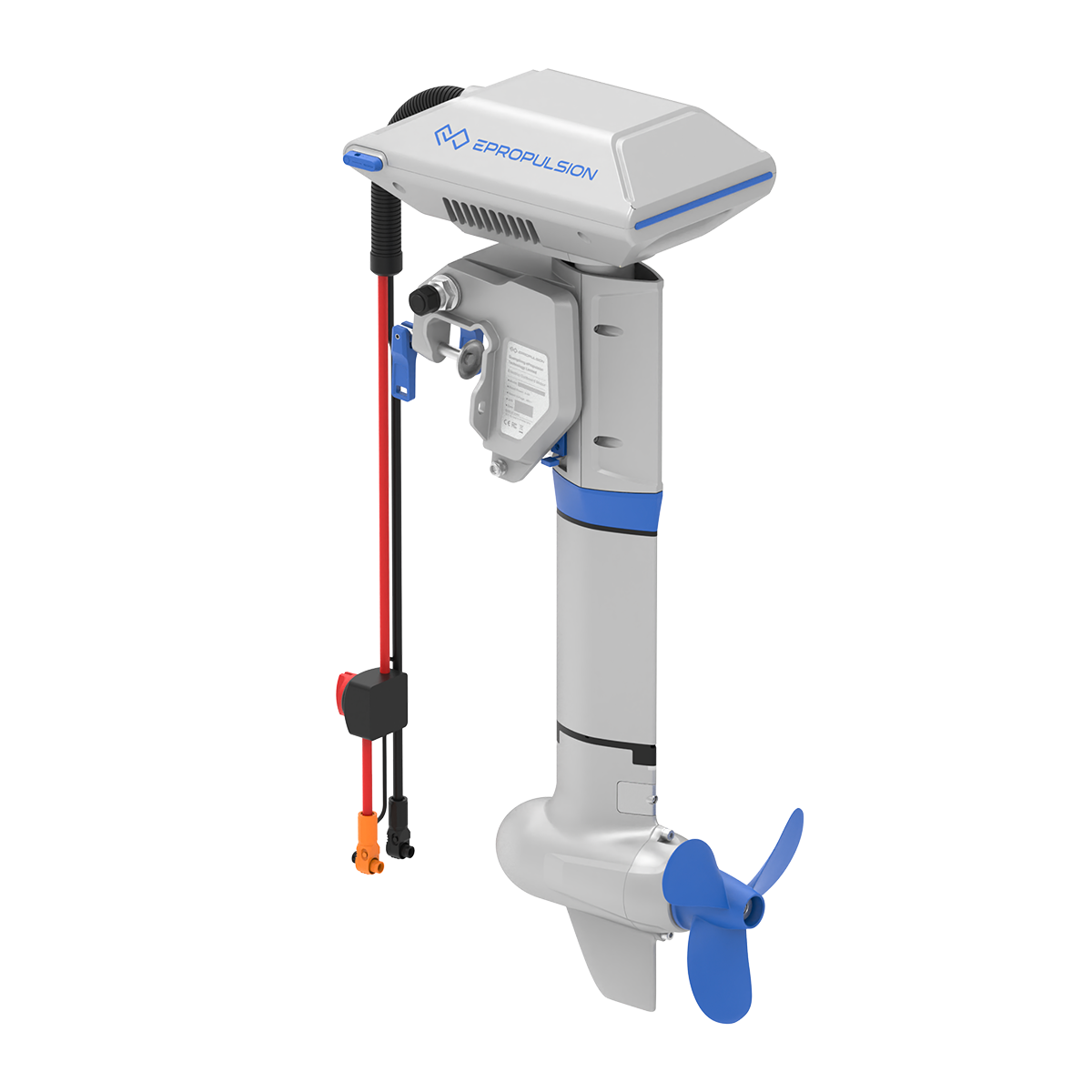

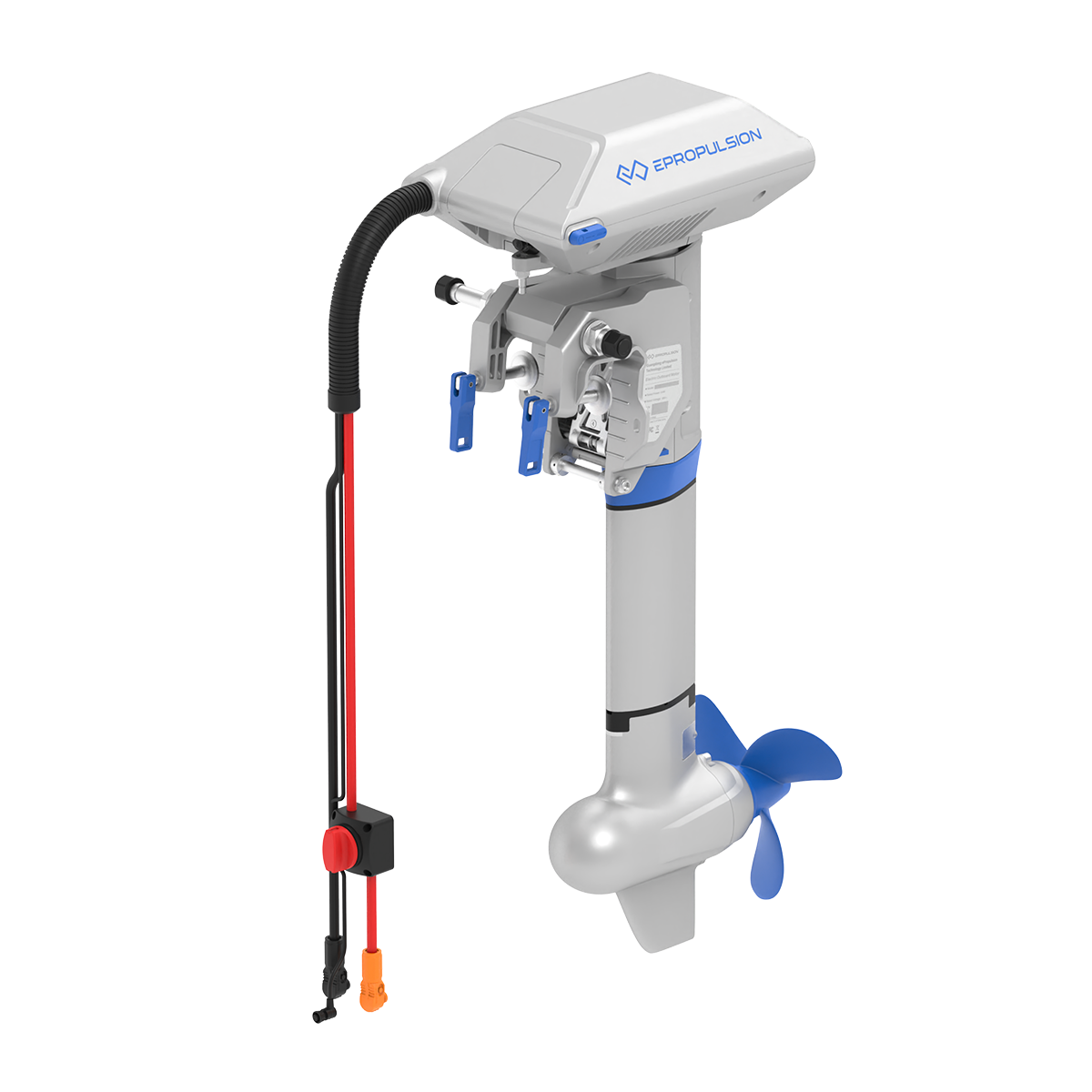

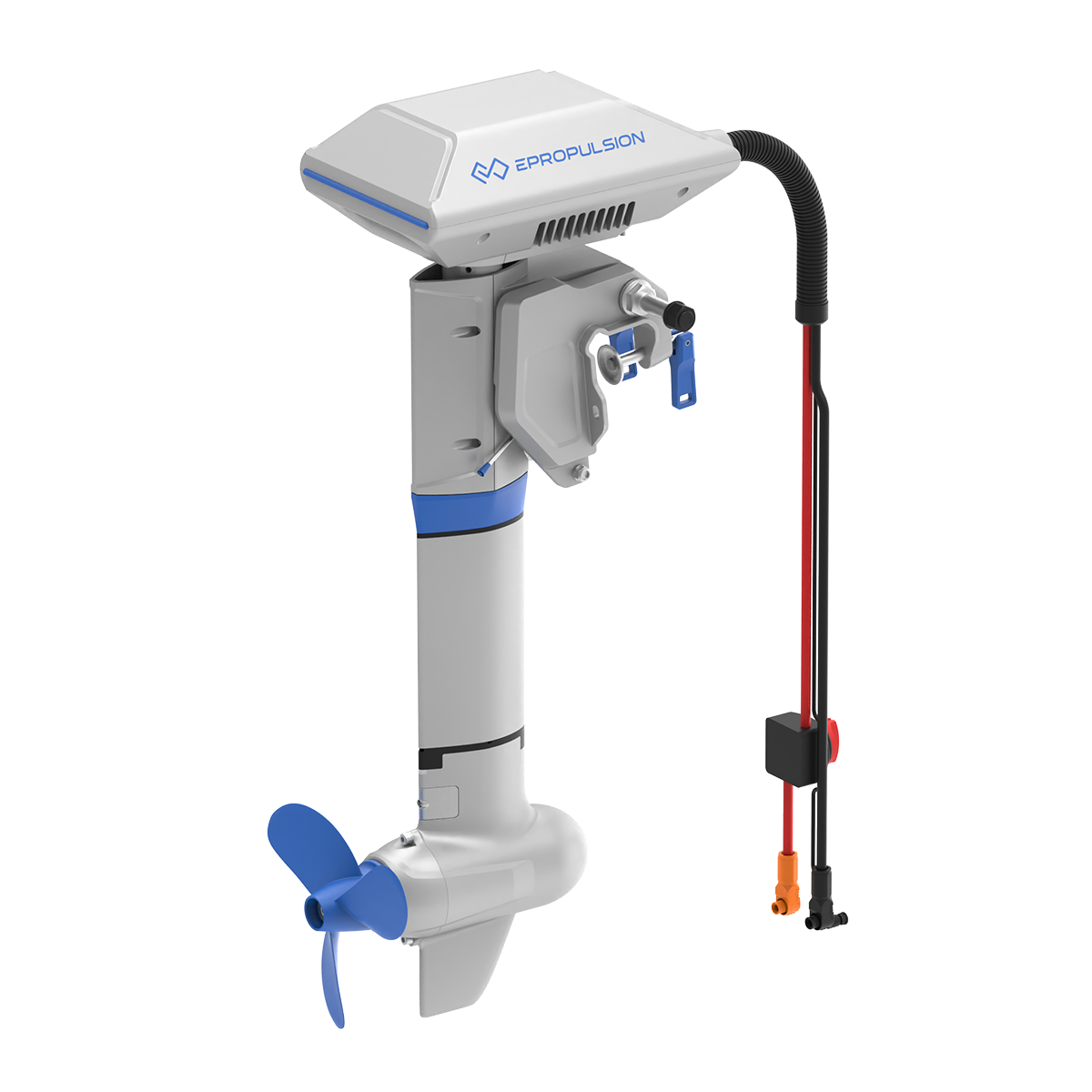

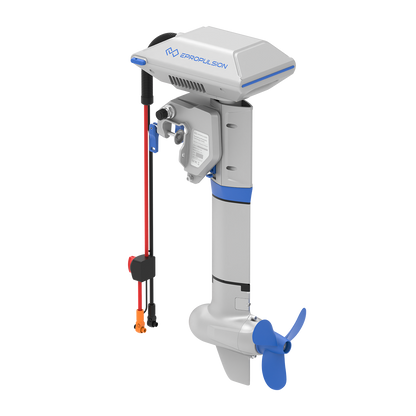

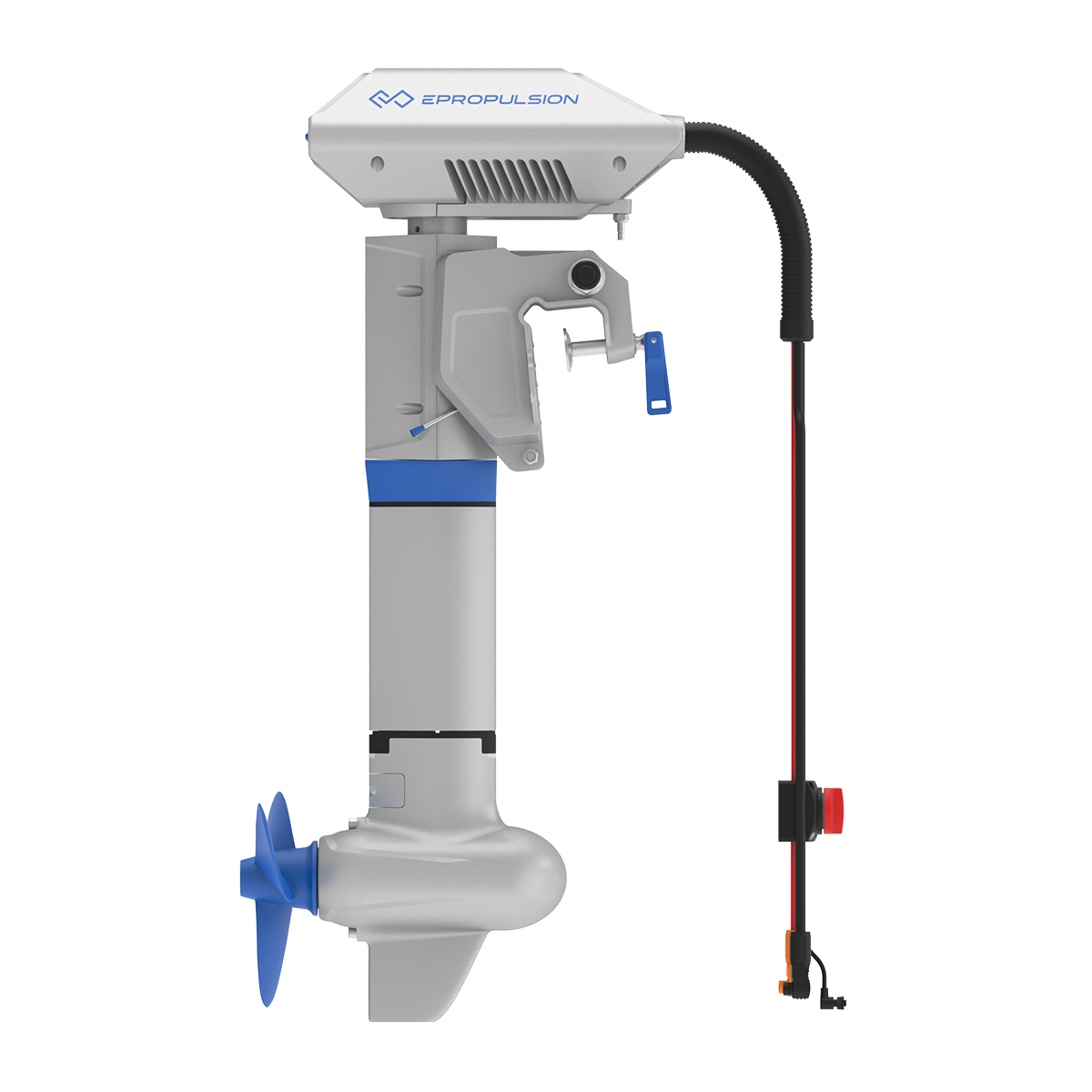

NAVY 6.0 Evo (2024) Short shaft without Control

NAVY 6.0 Evo (2024) Short shaft without Control

POA

Part Number: NE-6000-S1

Series: Navy

Type: motor

Description

The Navy 6.0 Evo delivers 6kW of power (9.9HP equivalent), making it suitable for larger boats such as motorboats, RIBs, river boats, and sailing yachts up to 5 tons. Its direct-drive design provides a quiet and maintenance-free experience. Equipped with hydrogeneration technology, it can recharge batteries while sailing under appropriate conditions, supporting longer journeys. The Navy 6.0 Evo is compatible with ePropulsion's E-Series batteries, ensuring reliable and efficient electric propulsion for your maritime adventures.

Updated Version - previous product was NE-6000-S0
This is the new version with an inline Main Switch and Aviation style connectors, not the blue Anderson connectors.
It also has a new transom bracket with updated tilt angles:

Installation position: 5°, 10°, 15°, 20°
Shallow water mode: 35°, 50°,65°
Tilt up position: 80°

Technical Specifications

Physical Dimensions

Length: 475.00 mm

Width: 314.00 mm

Height: 1055.00 mm

Net Weight: 28.50 kg

Motor Specifications

Voltage: 48.00 V

Min Power: 60 W

Max Power: 6000 W

Cooling: Natural cooling

Static Thrust: 1000 N

Codes & Identifiers

EAN Code: 6971312632415

UPC Code: 770264105741

HS Code (EU): 8501320099

HS Code (US): 8501322000
