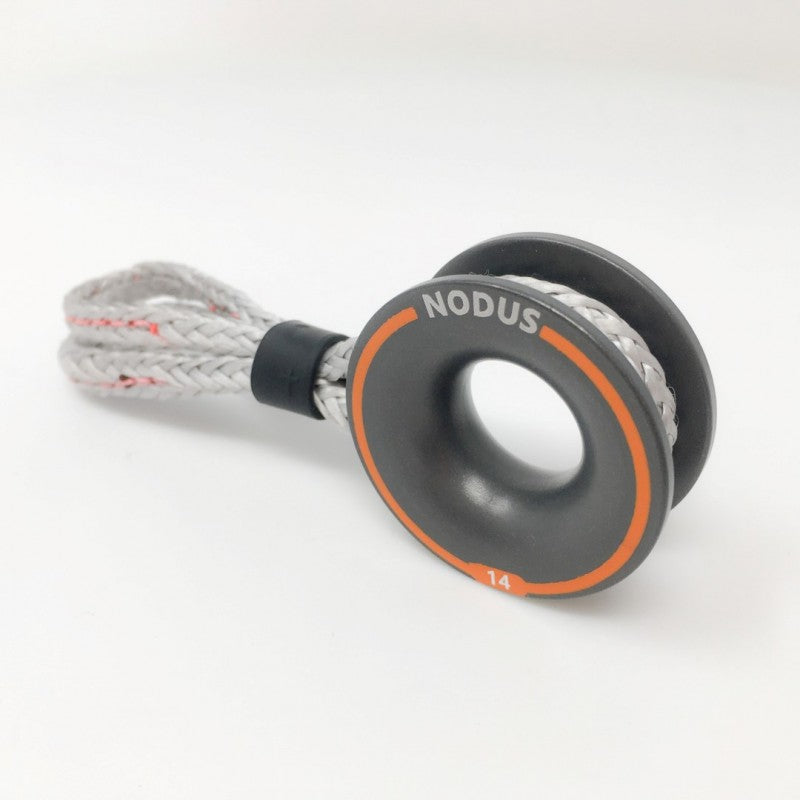

Block-loop® friction is a textile loop sheathed in Dyneema® designed for low-friction rings.
It is supplied with the locking ring, a product of the Plug and Sail™ range.
Materials: Dyneema® / Polymer / Duralumin
Loop in Dyneema® for friction ring | Block-loop® friction BL F14 small POM
Product Details

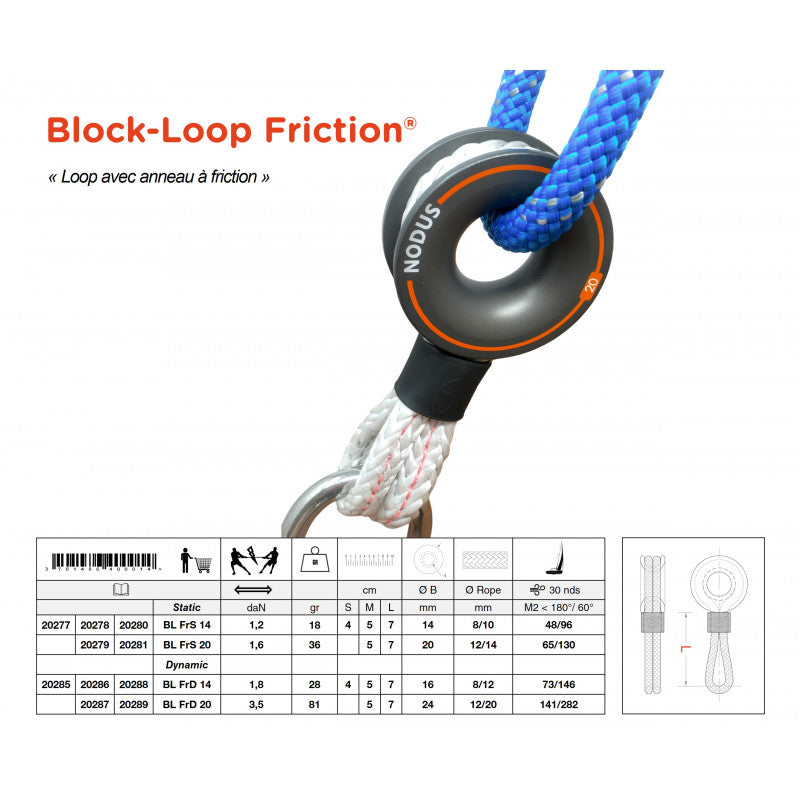

| Designation | Breaking Load |
Sail Area |
under Ring length |
Internal Ø | Rope Ø | ||
| Ring |
M2 ≥ 60° Coef 2 |
Ring | recommended | ||||
| kN | S | M | L | mm | mm | ||
| BL 14 FrP | 12 | 33 | 4 | 5 | 7 | 13 | 6/8 |
| BL 20 FrP | 16 | 44 | 5 | 7 | 19 | 8/12 | |
| BL 14 FrD | 18 | 49 | 4 | 5 | 7 | 16 | 8/12 |
| BL 20 FrD | 50 | 130 | 5 | 7 | 24 | 12/20 | |
Description
The Block-loop® friction, is a coated textile loop designed for a low-friction ring.
+ Use

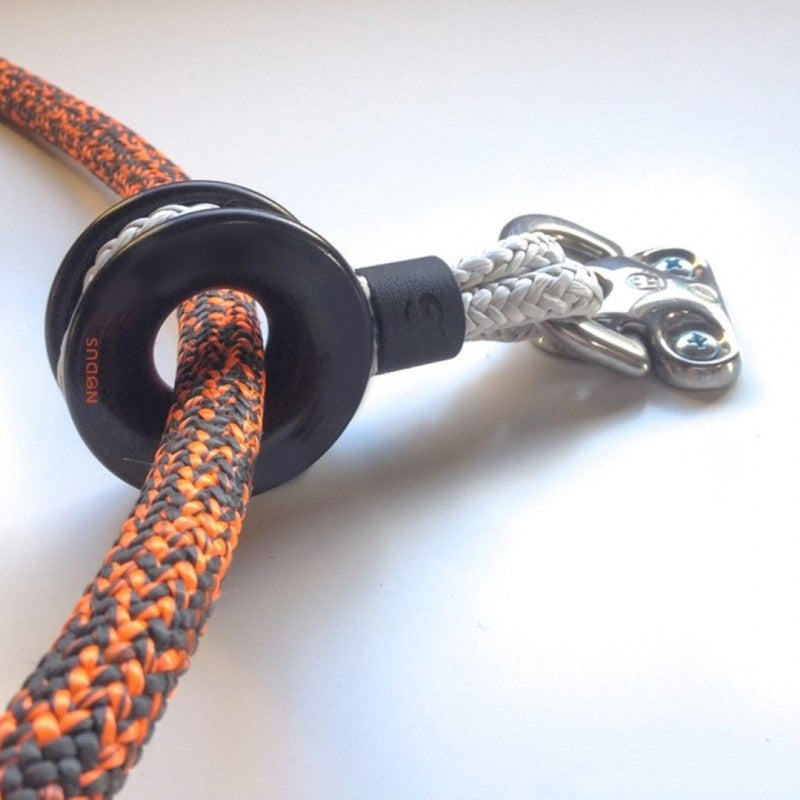

- Textile loop for rings, easy to use and designed for a heavy static load.

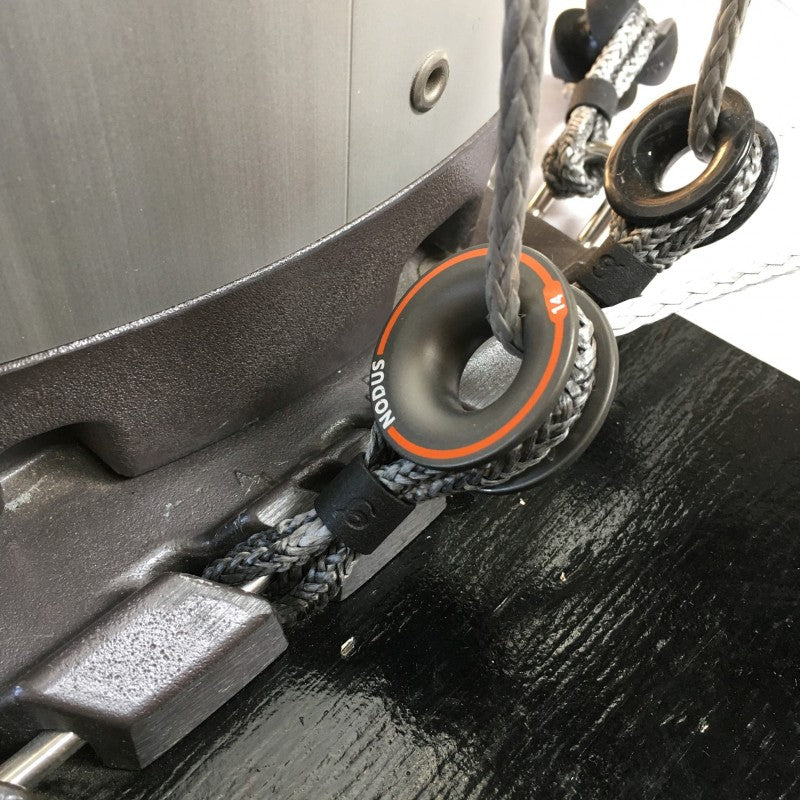

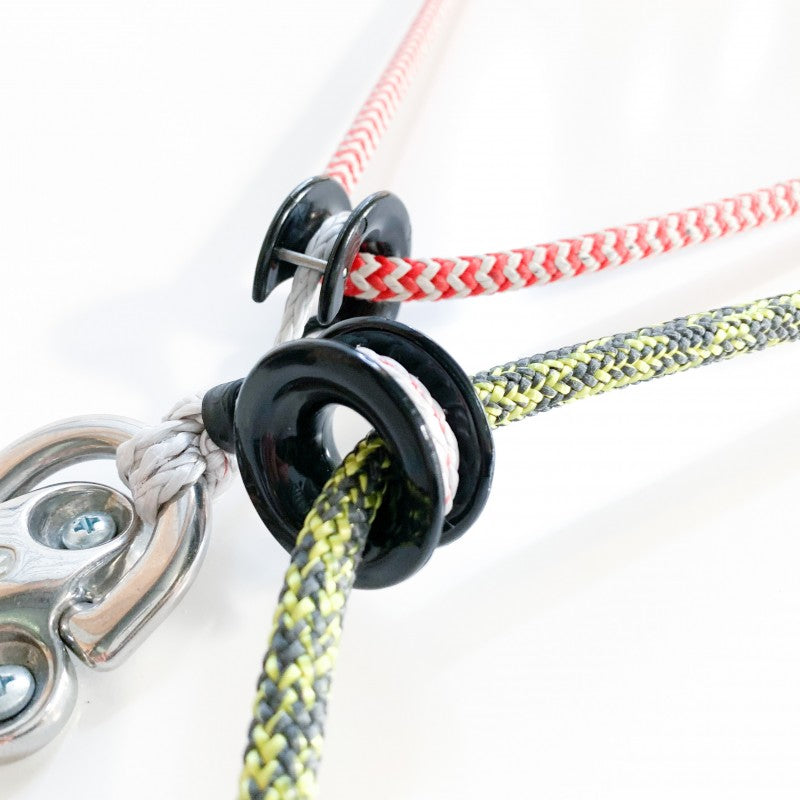

- To guide, deflect and haul any ropes, sheets for genoas, spinnakers, drum bosses barber-hauler and cascading backstay and many other applications.

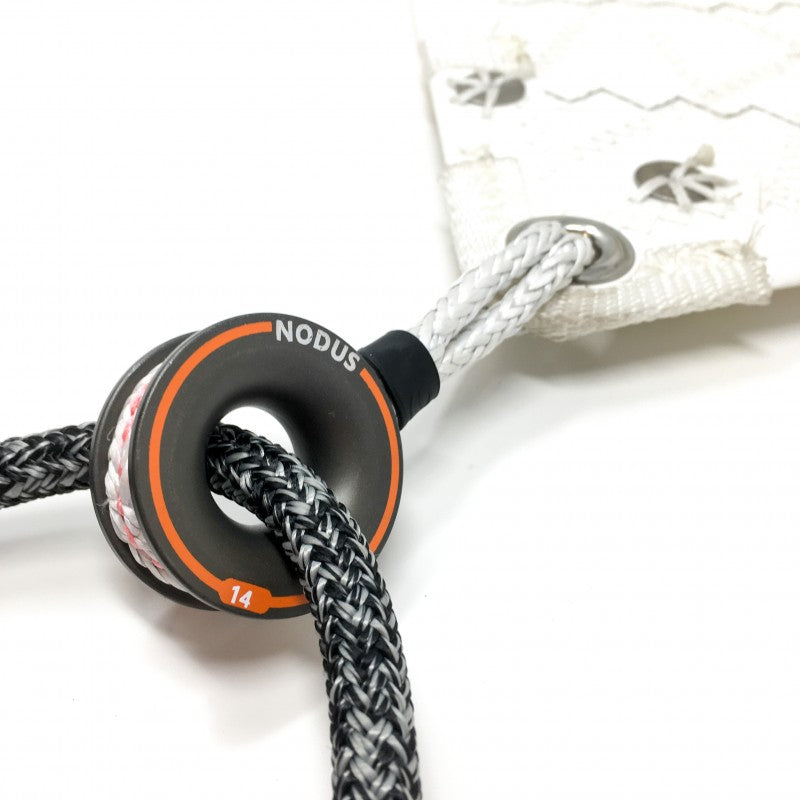

- Ideal for the tack on an asymmetric spinnaker
+ Use
- Static : friction ring Fr - resin
- Dynamic: friction ring FrD - duralumin
Data sheet

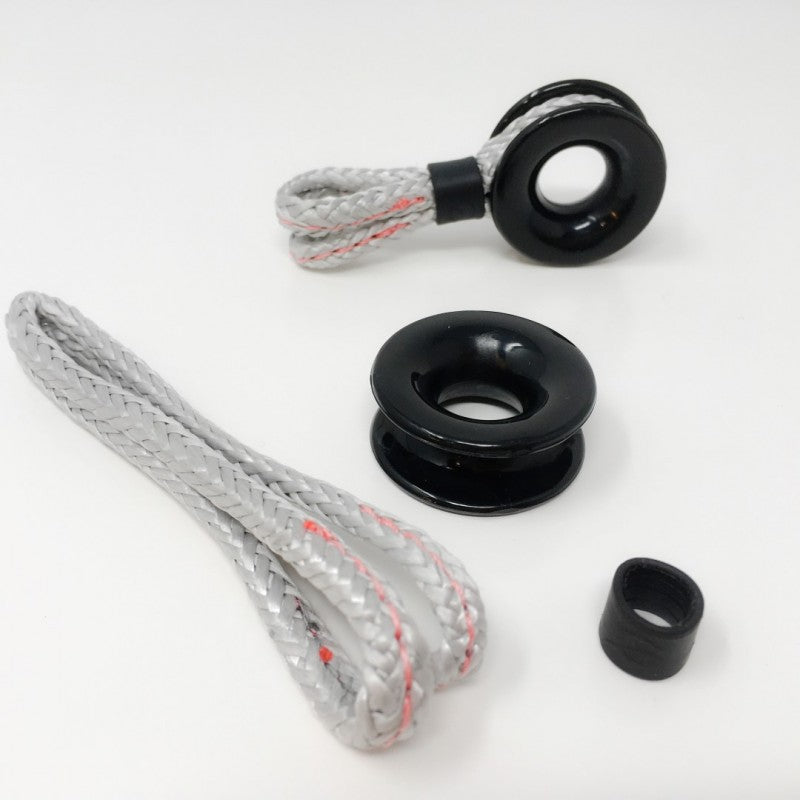

- Loop®, core and sheath made of 100% Dyneema® R2 12fx pre-stretched, coated ¬ Light grey / black
- Block®, clamping and holding ring, made of flexible TPE thermoplastic which can quickly lock and fix a low-friction ring.
- Nodus Factory low friction ring™ made of Self-lubricating technical plastic resin ¬ black or FrD ring in duralumin ¬ grey / orange
