Karver Systems
KSO8 ADDITIONAL SHEAVE
KSO8 ADDITIONAL SHEAVE
Couldn't load pickup availability
Please contact us at sales@alveussupply.com to order this product.

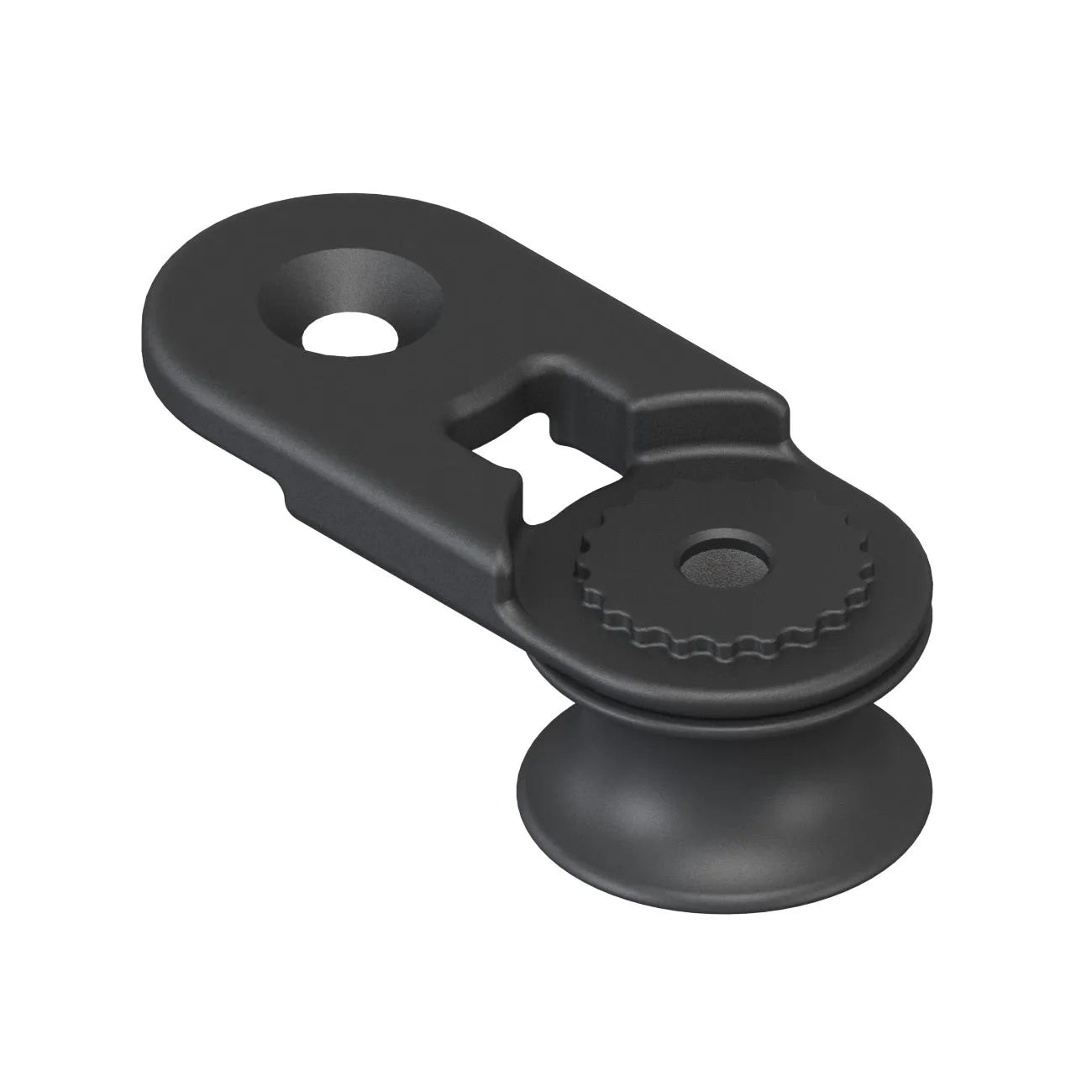

The KSO8 additional sheave is the second component of a KSO fairlead. The KSO8 is a low friction fairlead provided by a self-lubricated sheave, it is made up of several interlocking elements that can be installed in an arc. The center distance of the screws makes it possible to mount a KJ2 or KJ3 blocker on top. With 3 elements (start – middle – fire), you compose the fairlead you want. Straight or curved. A 1, 2, 3,. 30 sheaves. Simple or superimposed. An ultra versatile product that adapts to all situations.
Specifications
| Ref | PF784533 |
| Weight | 0.087 kg |
| Boat size | 10 to 60″ |
| Workload | 0,85 T |
| Breaking load | 1,70 T |
Strengths
– Only 3 references for all imaginable configurations
– Load capacity greater than market standards. 850 kg at 60 °
– Self lubricated sheave
– The center distance of the screws makes it possible to install a KJ2 or KJ3 jam cleat from above.
– Open the fields to the many possibilities : straight, in an arc, stacked, surmounted by a cam cleat, …
– A modern design that easily stands out from the others
– An excellent quality / price ratio
– Available individually or in sets of 25 for construction sites
Tips
– The beginning KSO8 integrates a sheave
– The end KSO8 does not integrate any
– The middle KSO8 integrates a sheave
– A KSO8 [1] is therefore a complete KSO with a single sheave and composed only of a beginning KSO8 and an end KSO8
– A KSO8 [2] additionally integrates a middle KSO. With the start of the KSO8 sheave, it therefore becomes a 2 sheave KSO8
