Karver Systems
KRTI45 (65X40X16)
KRTI45 (65X40X16)
Regular price
$276.57 NZD
Regular price
Sale price
$276.57 NZD
Unit price
per
Couldn't load pickup availability
Please contact us at sales@alveussupply.com to order this product.

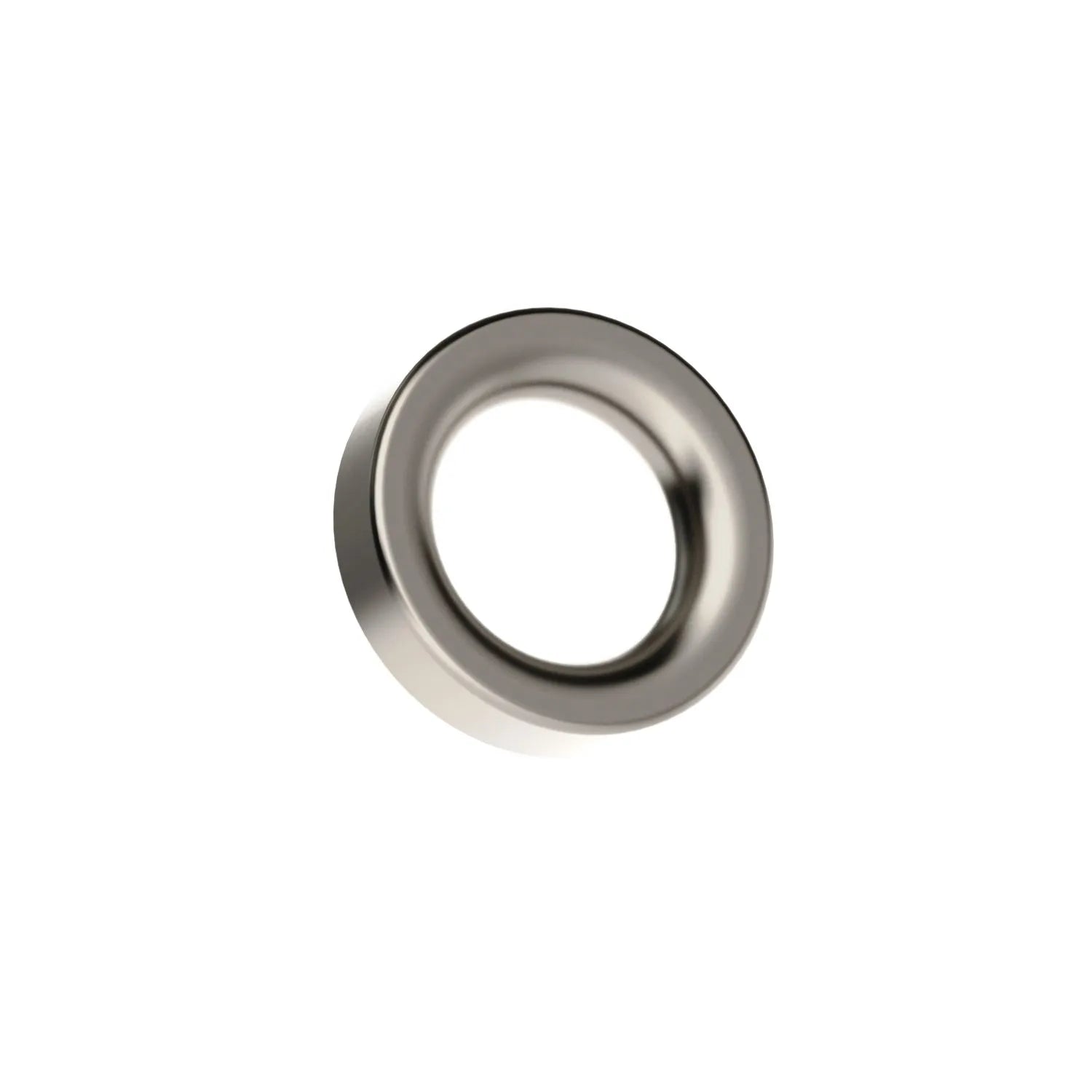

KRTi45 titanium ring. The friction ring 100% Titanium according to Karver.
Specifications
| Ref | PL1024602 |
| Weight | 0.127 kg |
| Boat size | 40 to 110″ |
| Workload | 4,50 T |
| Breaking load | 9,00 T |
| External diameter (mm) | 65 |
| External diameter (mm) | 40 |
| Thickness (mm) | 16 |
Strengths
– Range from 3.5 to 40 T (working load)
– High quality titanium machined in the mass
– Large stock. Availability
– Different shapes and sizes achievable easily and quickly
– Attractive price compared to a pulley with the same load
Tips
– Even a titanium ring remains a friction ring and will never perform as well as a block
– It remains an excellent choice for deflecting a rope a few degrees but beyond 45 ° friction at high load becomes very important.
Documentation
