Karver Systems
KRS50 REEFING FURLER COMPLETE KIT 10 X KP54R PROFIL (20M)
KRS50 REEFING FURLER COMPLETE KIT 10 X KP54R PROFIL (20M)
Couldn't load pickup availability
Please contact us at sales@alveussupply.com if you wish to order this product.

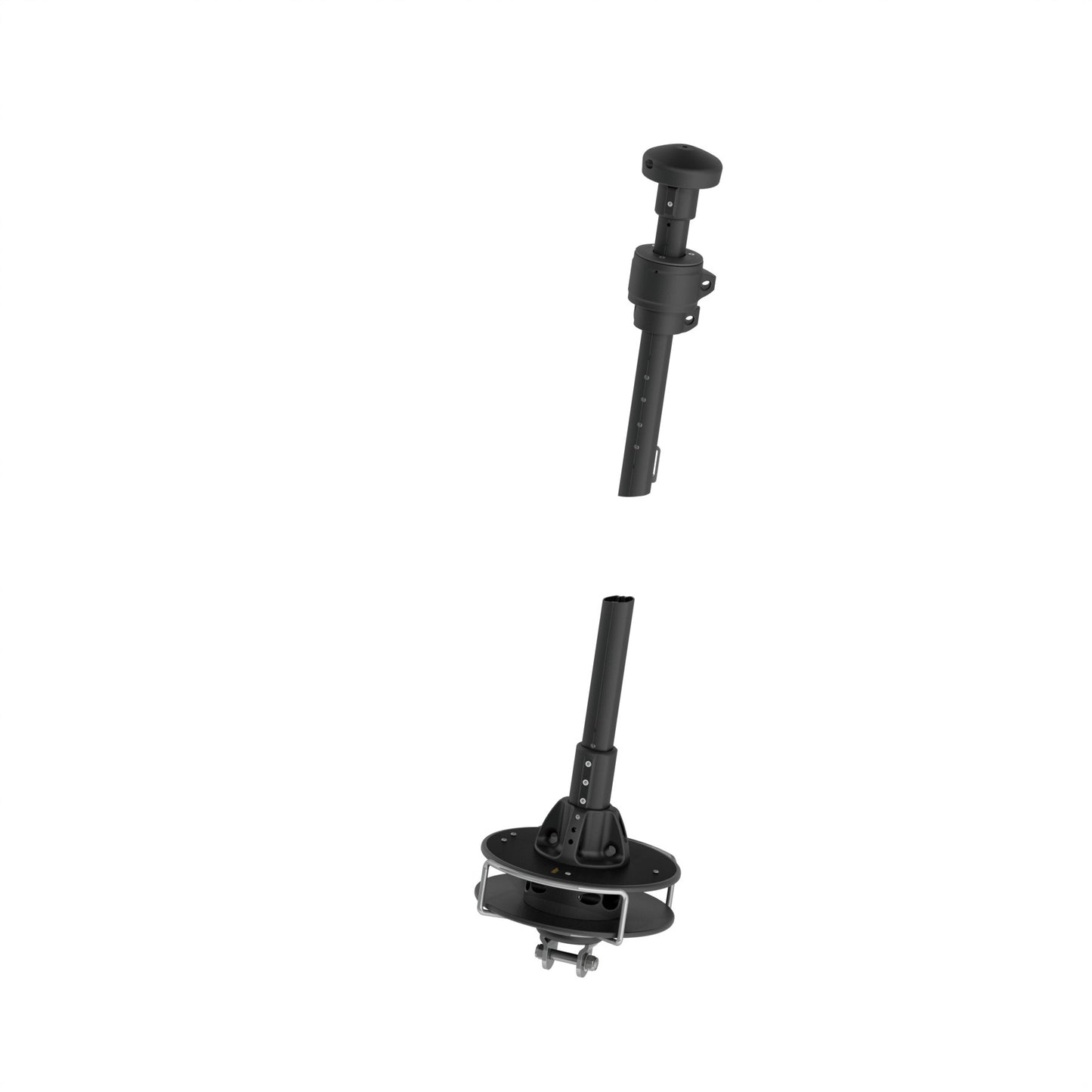

The KRS50 is a manual reefing Furler dedicated to all sailboats from 60 to 80 feet (20 to 26 meters) equipped with sails from 150 to 220m². The KRS50 accepts props from 14 mm to 20 mm.
It is delivered by default with 20 m of profiles (10 x 2m), short plates and a Ø 22 mm chainplate pin.
The reefing furler by Karver is an aesthetic eco-designed reefing furler, very robust, easy to install and use. It is a reefing furler with all options (elliptical profiles, double rope, removable drum, etc.) for a competitive price.
Specifications
| Ref | PF333500 |
| Weight | 47.295 kg |
| Boat size | 60 to 80″ |
| Max stay diameter WITHOUT removable fitting | 14 |
| Max stay diameter WITH removable fitting | 20 |
| Max genoa area (m²) | 220 |
| Boat length (m) | 20-26 |
| Boat length (ft) | 60-80 |
| Delivered profil length | 20 (10×2) |
Strenghts
Aesthetics : Harmonious drum and swivel dimensions
– Aesthetics : Black profiles with hard anodizing (thicker)

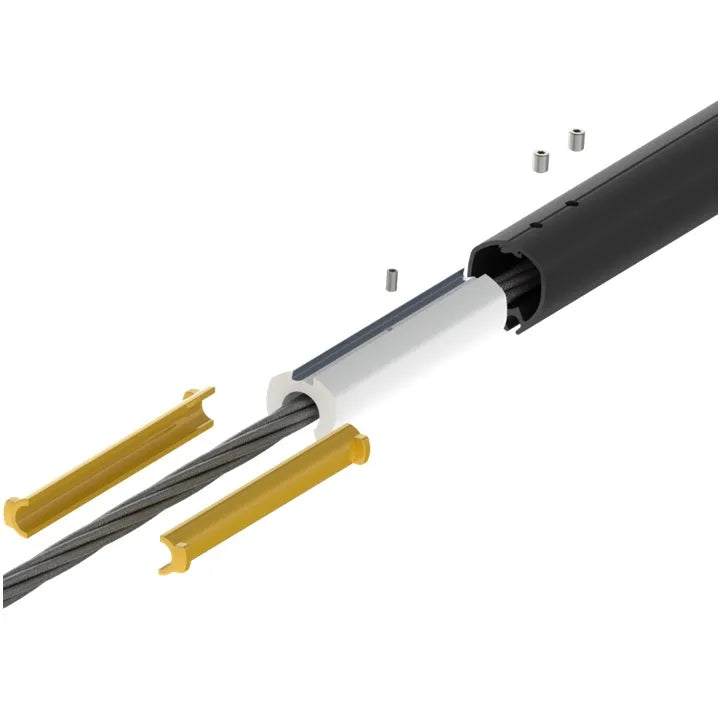

– Robust : Profiles designed for very high torsion resistance
– Robust : Using high strength 6082T6 aluminum
– Robust : Reinforced profile junction
– Robust : Double bearing on the swivel and maintenance-free drum
– Robust : insulation of materials against corrosion
– Robust : 3 year warranty (+ 2 years if you register online)
– Ease of use : Wide drum to reduce furling effort
– Ease of use : Fixing of the sail by soft shackle (delivered) or stainless steel shackle.
– Ease of choice : You no longer have to ask yourself the question of a cruise-oriented or race-oriented model. We offer only one model tuned to the highest expectations of each type of user.
– Competitiveness : Our reefing furlers are “all options included » : elliptical profile, double groove, …
– Performance : Compact drum and swivel. Reduced weights.
– Performance : The design of each element allows installation flush with the deck, which optimizes the sail surfaces. We might be the most compact reefing furler on the market.
– Eco conception : To limit the impact of our products, we use bio-sourced plastics and we do everything we can to increase the lifespan. More compact drums & swivels / less material, robust profiles and bearings, etc,
Documentation
