KJSK15 STASYAIL KIT (LASHING FIXATION)

please contact us at sales@alveussupply.com to order this product.

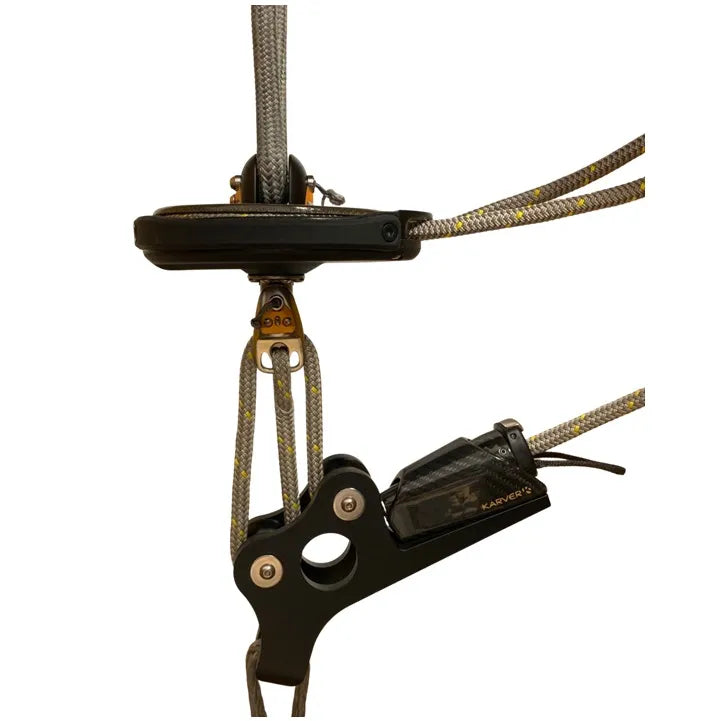

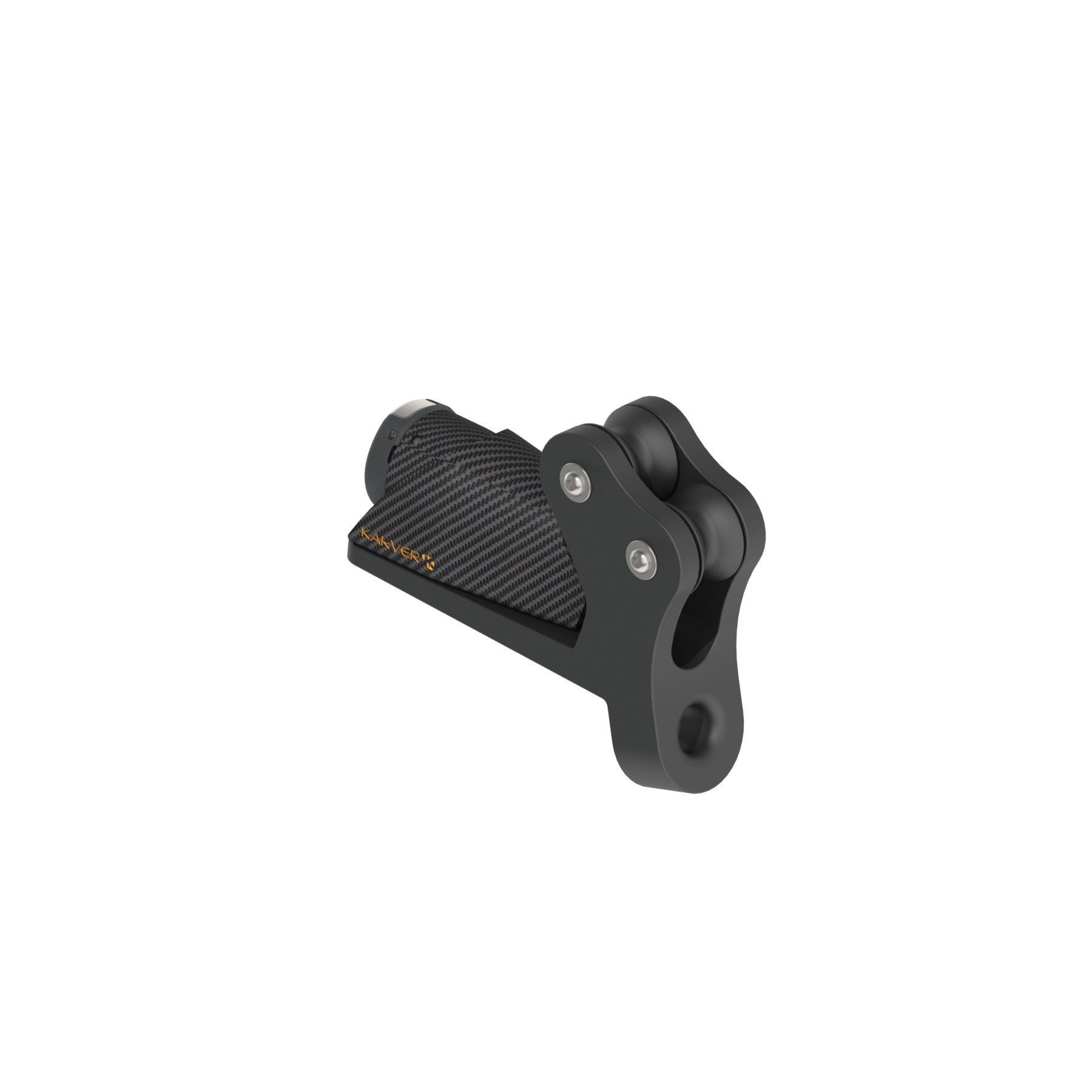

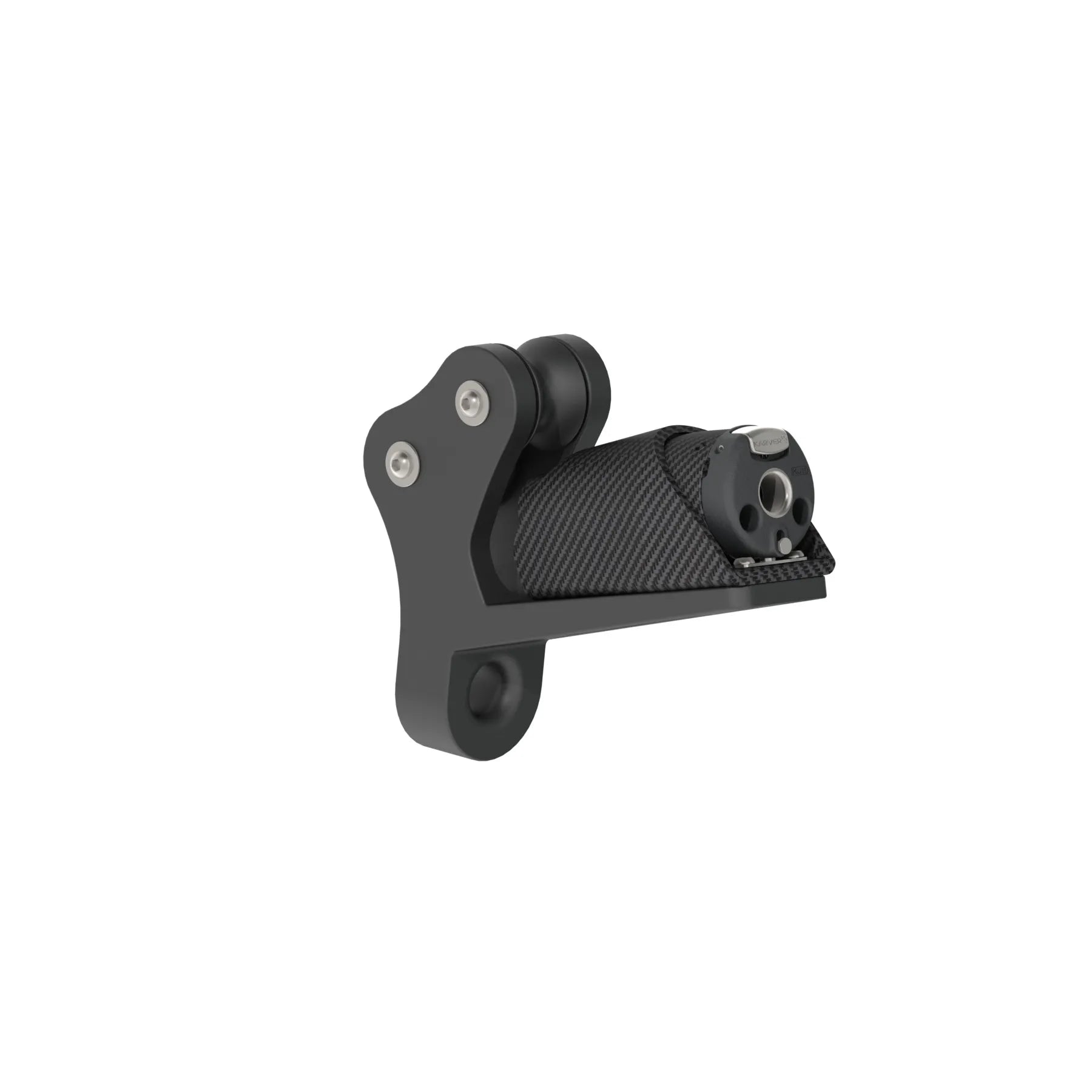

The KJSK15 is a support perfectly adapted to our now famous KJC10 jammer and equipped with 2 high load flared sheaves for the installation of a 3:1 tackle. Fixing on the deck is provided by a lashing.
The KJSK kit makes it easy and quick to install a flying staysail. Once the staysail is stowed, the deck is clear.

Specifications

Strengths

– Greatly simplifies the installation of a flying staysail
– No more need to install the jammer on the deck (no drilling)
– Simple & quick installation, use & storage
– Large high load, low friction flared sheaves make for a very efficient and robust 3:1 tackle
– The 3:1 tacke divides the efforts by 3. Less physical effort when powering up. Using a smaller diameter rope.
– The KJ jammer is our famous 3 Jaw jammer. The rope is damaged a lot less than a classic jammer. The rope does not slip despite the heavy load.
– Compact set to keep the tack close to the deck.
– The KJSK is available for attachment to the deck by lashing or by pin of different diameters
– The KJSK is particularly effective for using a staysail on a furler but also works very well for tensioning a simple releasable forestay.
– The use of a KFH lock and a textile forestay makes the assembly extremely performing and efficient.

Tips

– Carefully check the dimensions of the deck plate to ensure compatibility with the KJSK
– Remember to communicate the KJSK dimensions to your rigger and your sailboat to adjust the lengths of cable and staysail luff.
– If you already have a furler for your gennaker or your code zero, you can probably use it to furl your staysail as well. Just check its max workload. The loads present on a staysail are often greater than those of a code 0.
– Respect the maximum diameter of the KJ jammers.
