KF0.9 FURLER
KF0.9 FURLER
Couldn't load pickup availability
Please contact us at sales@alveussupply.com to order this product.

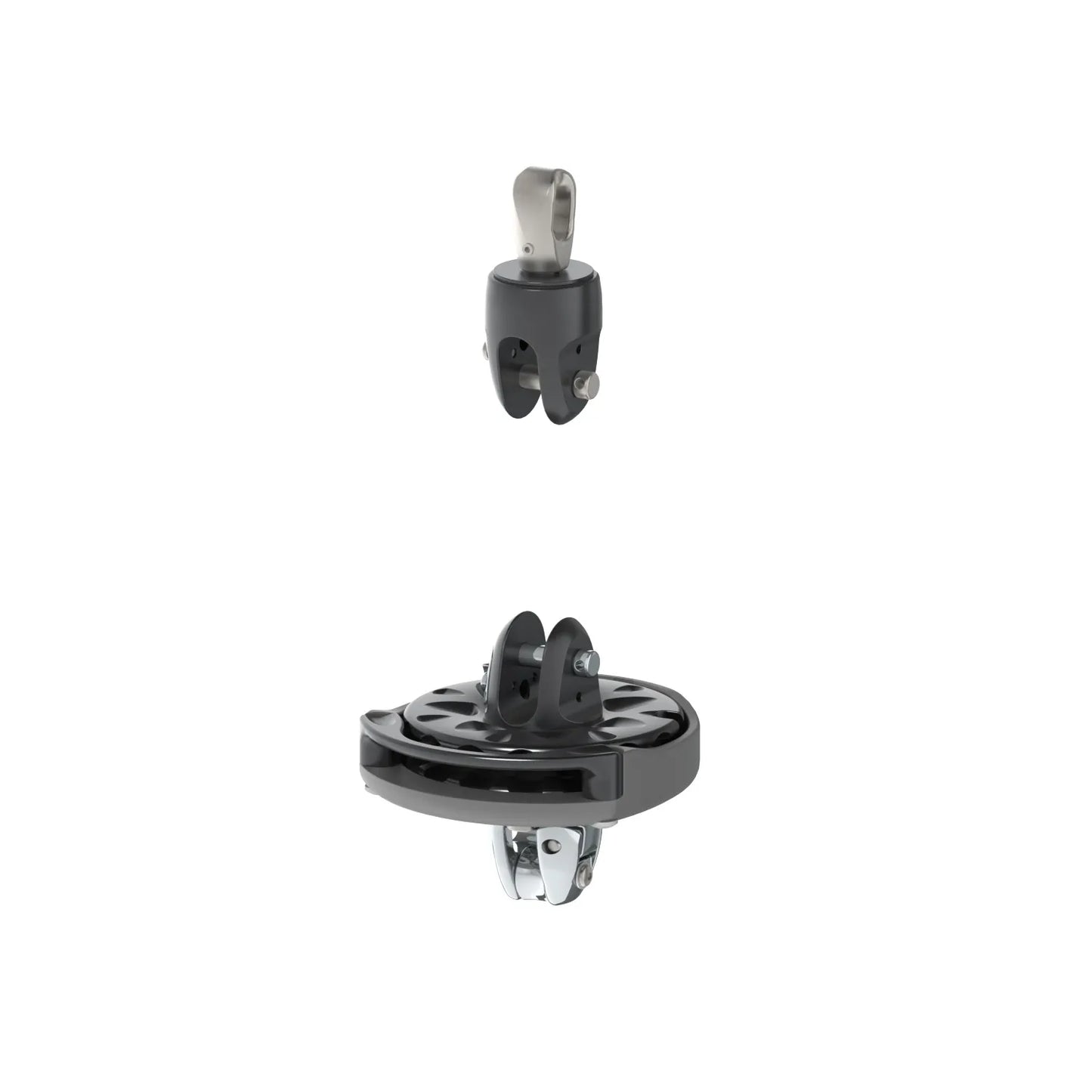

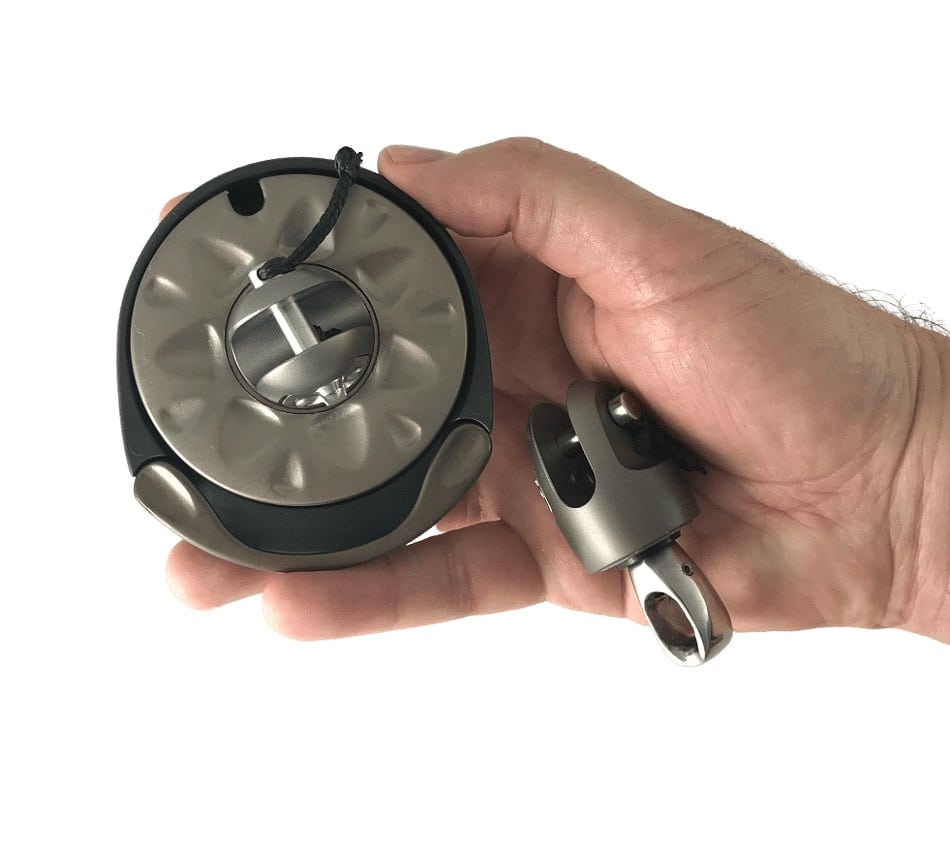

The KF0.9 is the smallest furler Karver ever designed !
This furler is devoted to the smallest sailboats and to all sailors. For sailboats from 10 to 30″.
We took a long time to design this furler because we wanted it to be as efficient and innovative as its big brothers.
Most of small furlers are extremely basic. Faithful to our rebellious spirit, we therefore offer a furler “all options” with in addition a unique fixing system developed by our design office. We have also done our best to control production costs and thus offer a furler at a reasonable price.
Specifications
| Ref | PF350000 |
| Weight | 0.35 kg |
| Boat size | 15 to 30″ |
| Workload | 0,90 T |
| Breaking load | 1,80 T |
| Drum wheel diameter (mm) | 87 |
| Fork width (mm) | 10.2 |
| Pin diameter (mm) | 6 |
| Furling line diameter (mm) | 6 |
| Cutting length (mm) | 106.8 |
The datas are presented as an indication and are not contractual
Strengths
– Extremely compact for a furler able to withstand 900 kg of load
– Captive fast pins
– Very resistant to shocks thanks to its composite plastic protection Manufacture in anodized aluminum : light and resistant
– Lashing eye on the swivel to optimize weight and dimensions
– 2 in 1 fixing under the very innovative drum : Snap schackle + 2: 1 friction sheave
– Quick installation of the furling line
– Maximum sail area : 50 to 60 m²
Tips
– Make sure to use a quality anti-torsion line. This is a point often overlooked on smaller sails.
– This furler is the only one in the range delivered without a continuous line wheel locking system or swivel protection
– If you do not want to tie a knot on the lashing eye of the swivel, you can use a textile shackle
– If the chain plate on which you want to hang the snap shackle directly is too big, you can add a small dyneema loop
– The KF0.9 in black anodization (V2) can use the grey KF1 thimbles and the grey KTS1
– Attention ! The KTS1.5 spinnaker adaptor does NOT fit the KF0.9
