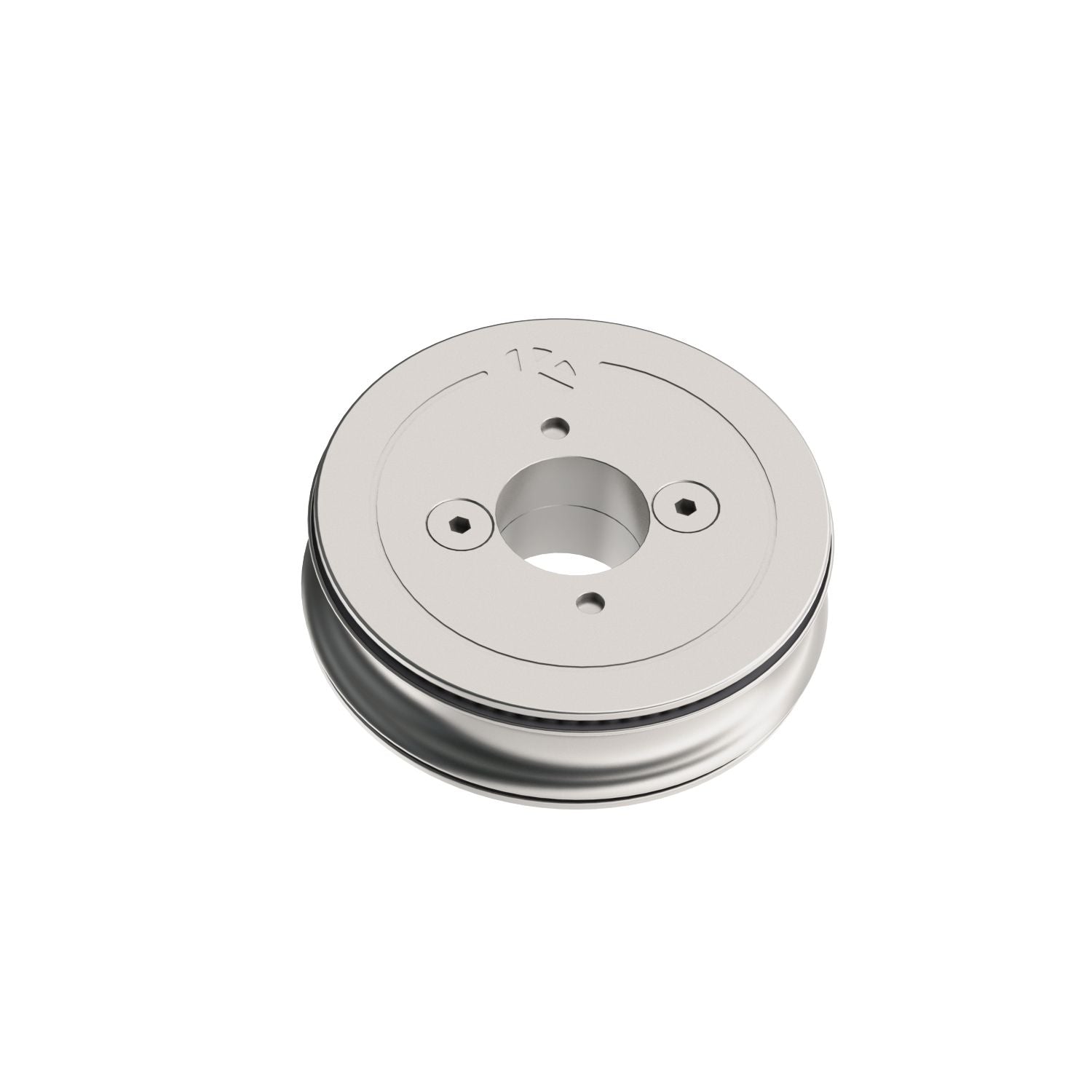

KDSTi160 (135 mm sheave) RACING TITANIUM SHEAVE 2026 NEW PRODUCT
KDSTi160 (135 mm sheave) RACING TITANIUM SHEAVE 2026 NEW PRODUCT
Couldn't load pickup availability
The KDSTi160 is a “full titanium” sheave fitted with roller bearings and ceramic balls. The technology of our KBR blocks in a titanium deck or mast sheave. Sheave designed for the heaviest loads where minimal friction is required. The major advantage of titanium is its durability. The KDSTi is a very high-end product designed for the most demanding programs. The KDSTi is the assurance of a sheave that will continue to rotate with low friction even with its maximum load.
| Ref | PF985260 |
| Weight | 1.691 kg |
| Boat size | 90 to 110 ft |
| Workload | 16,00 T |
| Breaking load | 32,00 T |
Strengths
– High performance sheave and bearings in all respects identical to our KBR pulleys
– Durability of titanium
– Very wide range (1.5 to 40 T)
– Extremely low friction : 2%
– Long life bearings
– Compact titanium sheave
– Titanium cheeks

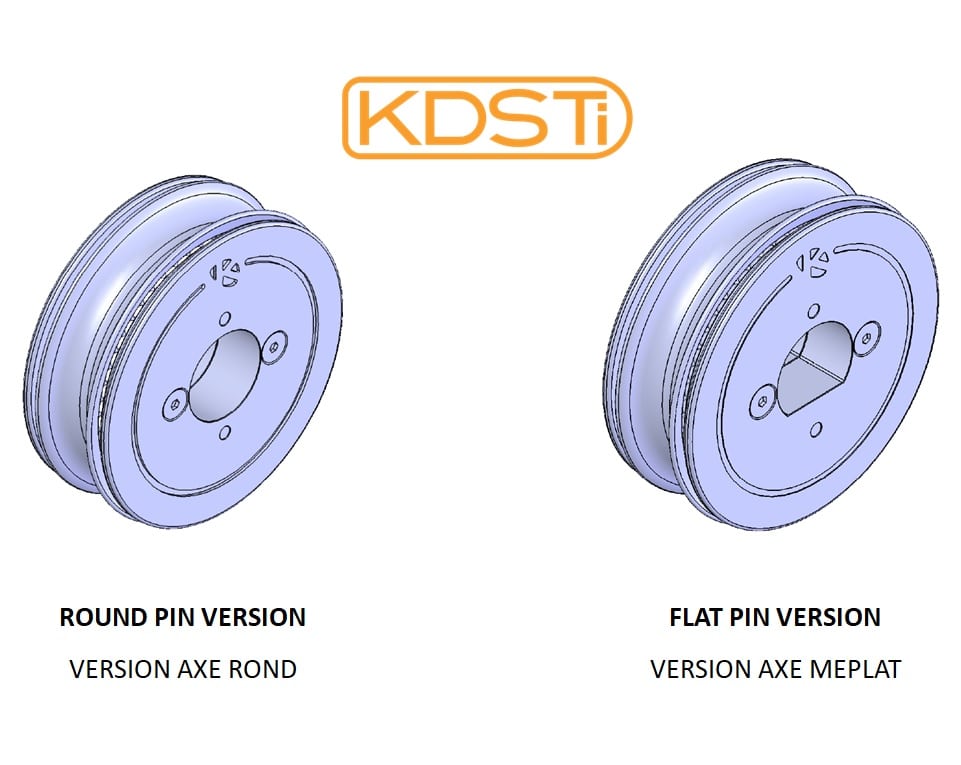

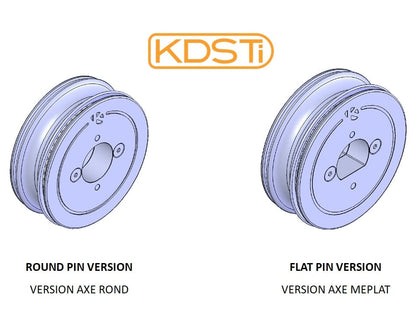

– Available for round or flattened shafts
K tips
– When designing, consider the accessibility of the sheaves to facilitate access and maintenance
– The number in the name of the model corresponds to its workload. KDSTi40 = 4T workload. KDSTi400 = 40 T working load.
