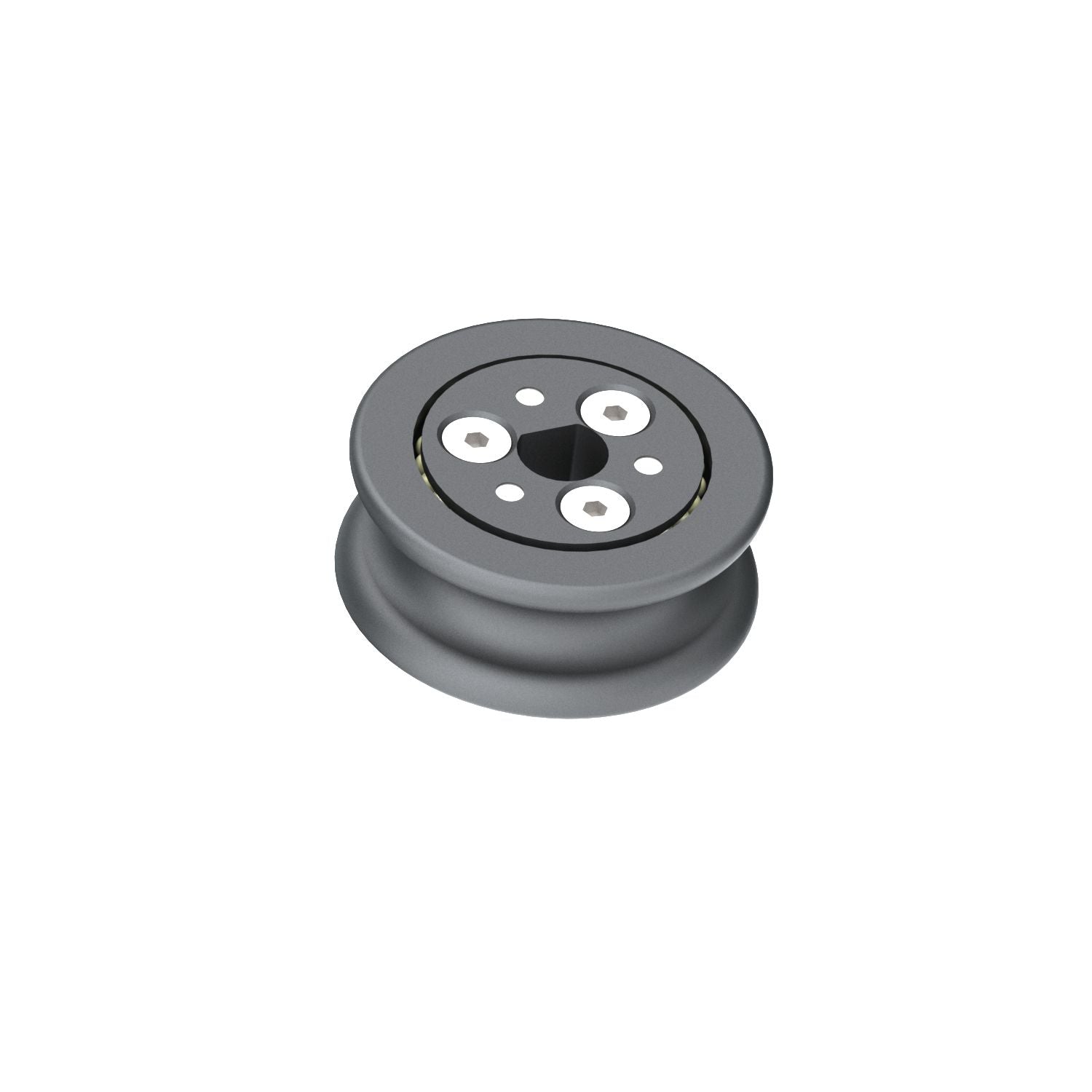

KDS40 – SHEAVE 80 MM 2026 NEW PRODUCT

Specifications

Strengths
– High load & low friction
– Equipped with low friction bearings for high loads, and balls for lateral forces.
– Excellent weight / resistance ratio
– Available for round or flat axles
– Quick production of made-to-measure sheaves (drawings & production)

K tips
– Be careful ! Following the takeover of the Grec Marine company which initially designed this range of sheaves, we have made several changes. If you want to replace a KDS sheave, we advise you to provide us with as much information as possible. Consult us.
– A Karver KDS80 sheave is a sheave capable of holding 8T (80 = 8T). For Grec Marine, a KDS80 sheave was a sheave equipped with an 80 mm diameter sheave.
– As far as possible, we recommend the use of a flat shaft (extension of code FP).
– Heavy duty sheaves, whatever their brand, must be perfectly aligned.
– Like any part of the fittings, the sheaves must be cleaned and maintained. For the design offices in charge of their positioning, remember to keep the possibility of disassembly.



Spare parts

SACHET OF 20 Ø5MM TORLON BALLS
