KBS10 BLOCK FOR 6MM SHACKLE
KBS10 BLOCK FOR 6MM SHACKLE
Regular price
$133.71 NZD
Regular price
Sale price
$133.71 NZD
Unit price
per
Couldn't load pickup availability
KBS10 POUR MANILLE HR DE 6

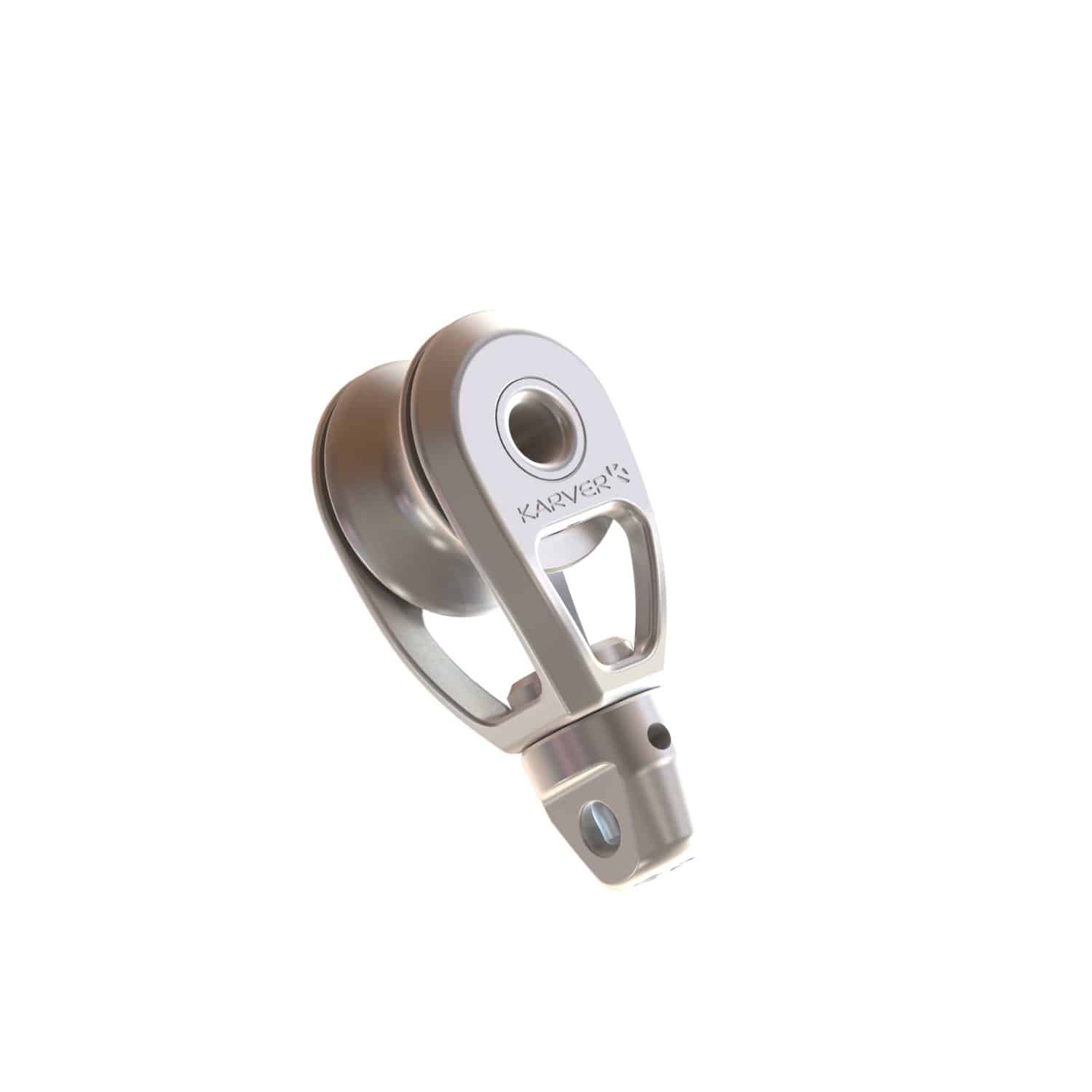

KBS10 Stainless Steel Block. Version equipped with a swivel for a block or snap shackle with a 6mm pin. Note: block is delivered without the shackle.
| Ref | PF4000030 |
| Weight | 0.124 kg |
| Boat size | 10 to 110 ft |
| Workload | 0,60 T |
| Breaking load | 1,20 T |
| Sheave diameter (mm) | 30 |
| Groove diameter (mm) | 20 |
| Recommended max line (mm) | 12 |
| Best max line diameter (mm) | 12 |
| Overall dimensions (mm) | 64×25,4 |
| Thickness (mm) | 25.4 |
| Center diameter (mm) | 7.2 |
| Side material | Stainless steel / inox |
