KBS10 SCREED PULLEY Ø16
KBS10 SCREED PULLEY Ø16
Regular price
$149.65 NZD
Regular price
Sale price
$149.65 NZD
Unit price
per
Couldn't load pickup availability

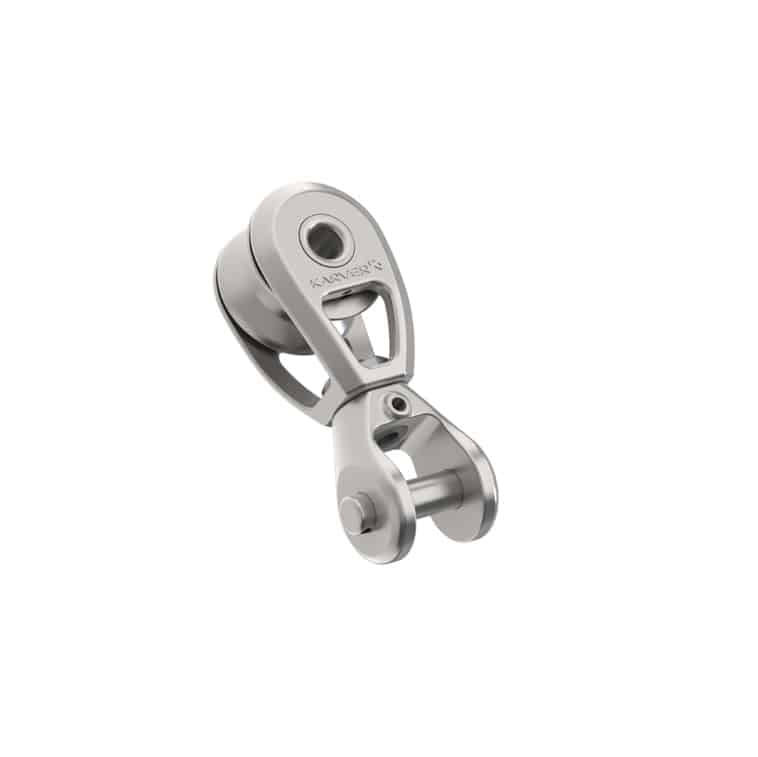

KBS10 stainless steel pulley. Fixed screed version.
| Ref | PF4000020 |
| Weight | 0.157 kg |
| Sailboat size | 10 to 110 feet |
| Workload | 0.60 T |
| Breaking load | 1.20 T |
| Rea diameter (mm) | 30 |
| Diameter at the bottom of the groove (mm) | 20 |
| Max rope diameter (mm) | 12 |
| Recommended rope diameter (mm) | 12 |
| Dimensions excluding tax (mm) | 78×25.4 |
| Thickness (mm) | 25.4 |
| Center diameter (mm) | 7.2 |
| Flaccid material | Stainless steel/stainless steel |
