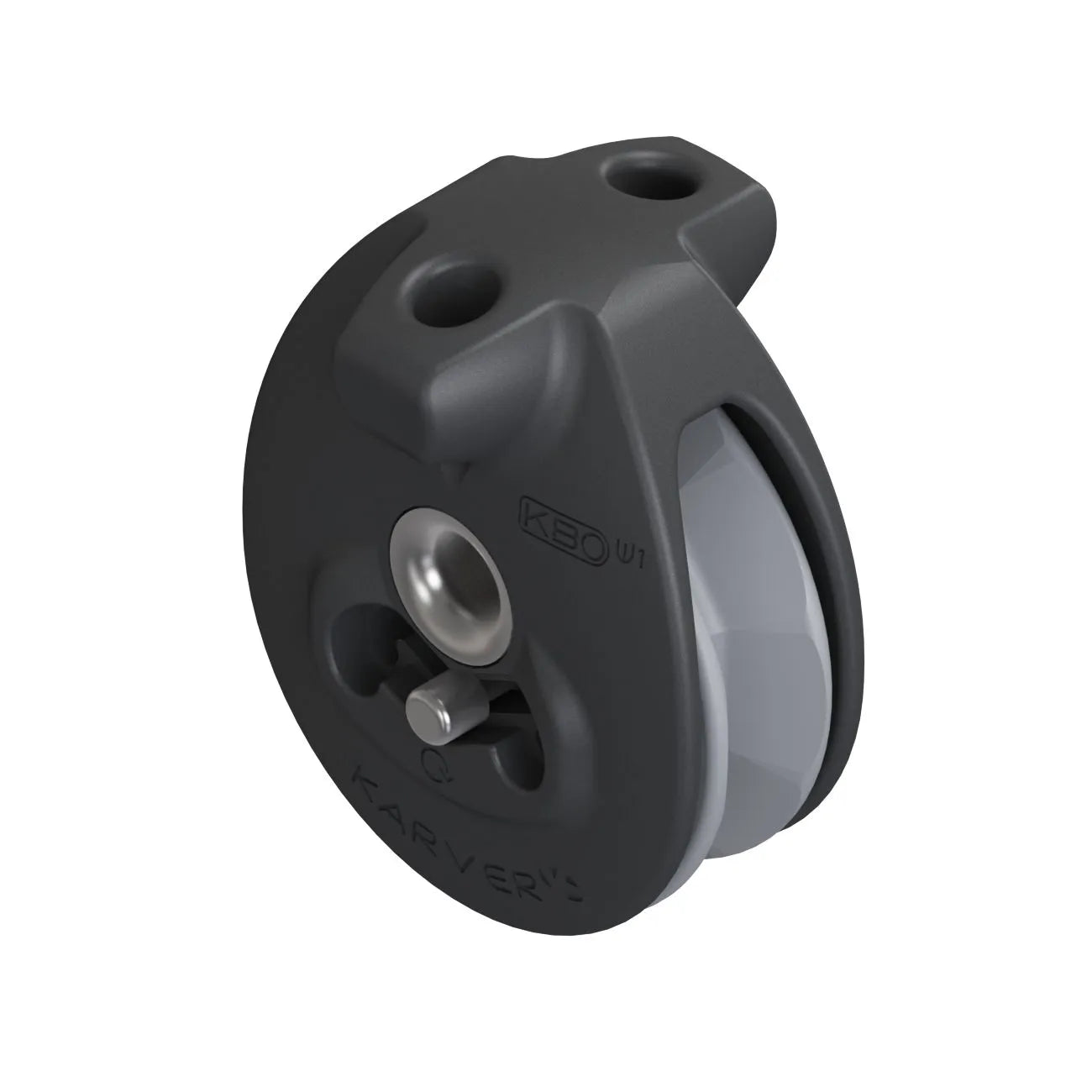

KBOW RATCHET BLOCK
KBOW RATCHET BLOCK
Regular price
$196.13 NZD
Regular price
Sale price
$196.13 NZD
Unit price
per
Couldn't load pickup availability
Please contact us at sales@alveussupply.com to order this product.
The KBOW block is the only winch block on the market to be offered in a lashing version (attached by textile shackle) and with a button to choose the direction of rotation. No more worrying about the direction of installation of the rope !
Specifications
| Ref | PF760030 |
| Weight | 0.073 kg |
| Boat size | 20 to 110″ |
| Workload | 0,30 T |
| Breaking load | 0,60 T |
| Sheave diameter (mm) | 55 |
| Groove diameter (mm) | 40 |
| Recommended max line (mm) | 10 |
| Best max line diameter (mm) | 8 |
| Overall dimensions (mm) | 68 x 55 |
| Thickness (mm) | 32 |
| Center diameter (mm) | 8 |
| Side material | NYLON PA6 |
Strengths
– A button on the pulley allows you to choose the braked direction of rotation
– In the central position, the winch function is no longer active
– The only lashing winch pulley with rotation choice on the market !
– Pulley delivered with its textile shackle
Tips
– Unique model. No bigger or smaller model
– Max rope diameter : 10 mm
