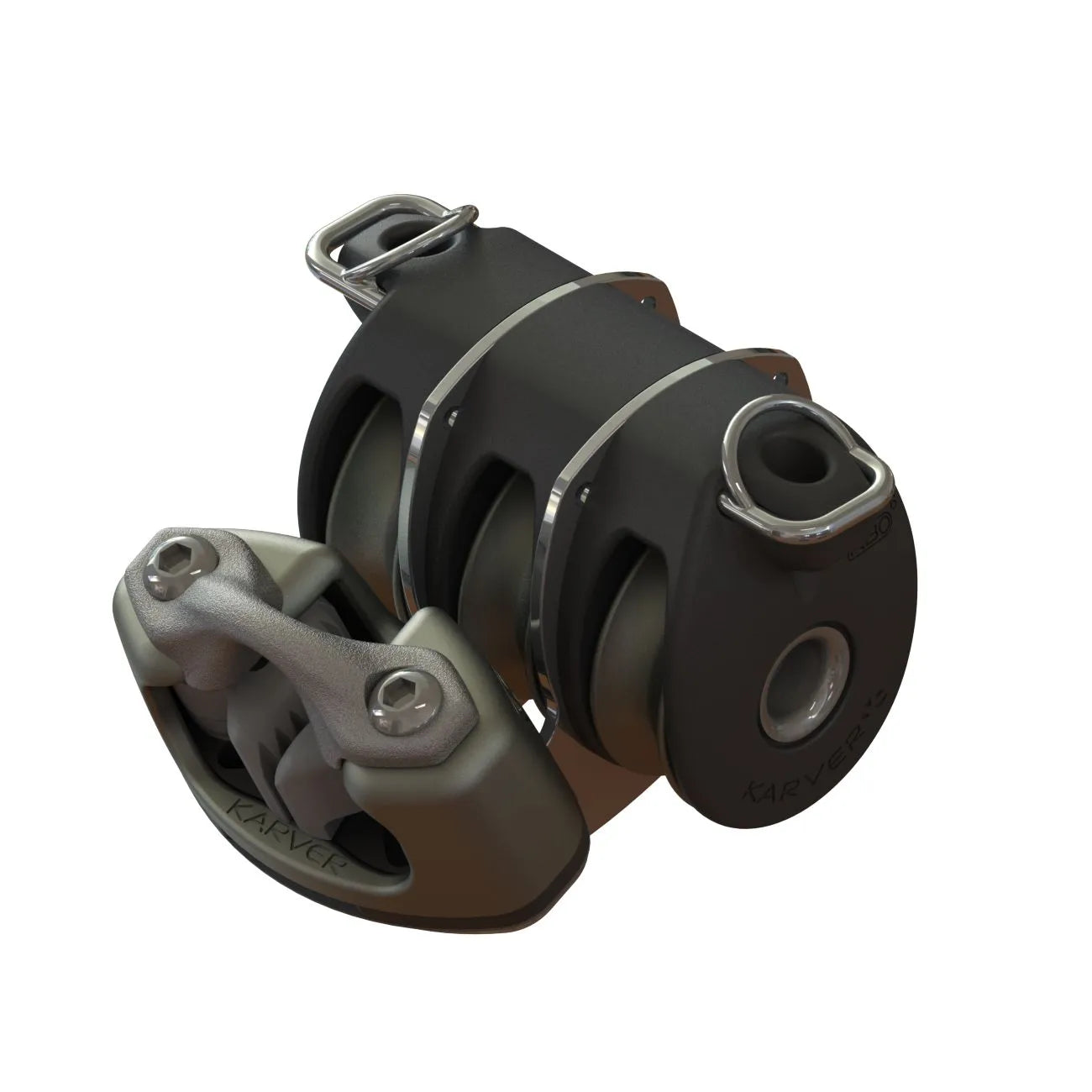

KBO6J TRIPLE + CAM CLEAT
KBO6J TRIPLE + CAM CLEAT
Regular price
$607.96 NZD
Regular price
Sale price
$607.96 NZD
Unit price
per
Couldn't load pickup availability
Please contact us at sales@alveussupply.com to order this product.
The KBO6J is a variation of our KBO6 triple block equipped with our high load KJ3 cam cleat. It is the basis of a compact, light and efficient 6-fall hoist. A unique configuration.
Specifications
| Ref | PF800030 [TKJ3] |
| Weight | 0.348 kg |
| Boat size | 20 to 110″ |
| Workload | 0,80 T |
| Breaking load | 1,60 T |
| Sheave diameter (mm) | 38 |
| Groove diameter (mm) | 30,6 |
| Recommended max line (mm) | 10 |
| Best max line diameter (mm) | 9 |
| Overall dimensions (mm) | 83,5 x 59,2 |
| Thickness (mm) | 59,90 |
| Center diameter (mm) | 8 |
Strengths
– Unique : Transfixed by its center, this 6-fall hoist incorporates a jam cleat whose inclination is adjustable without tools. Compact & light
– Adjustable blocker angle
– Fixing by lashing
– High load capacity : 800 kg
– Equipped with the excellent KJ3 blocker
Tips
– Max rope diameter : 10 mm
Documentation
