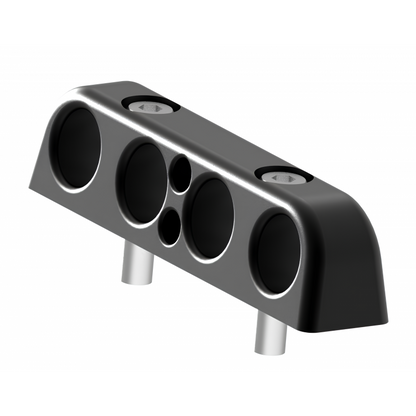

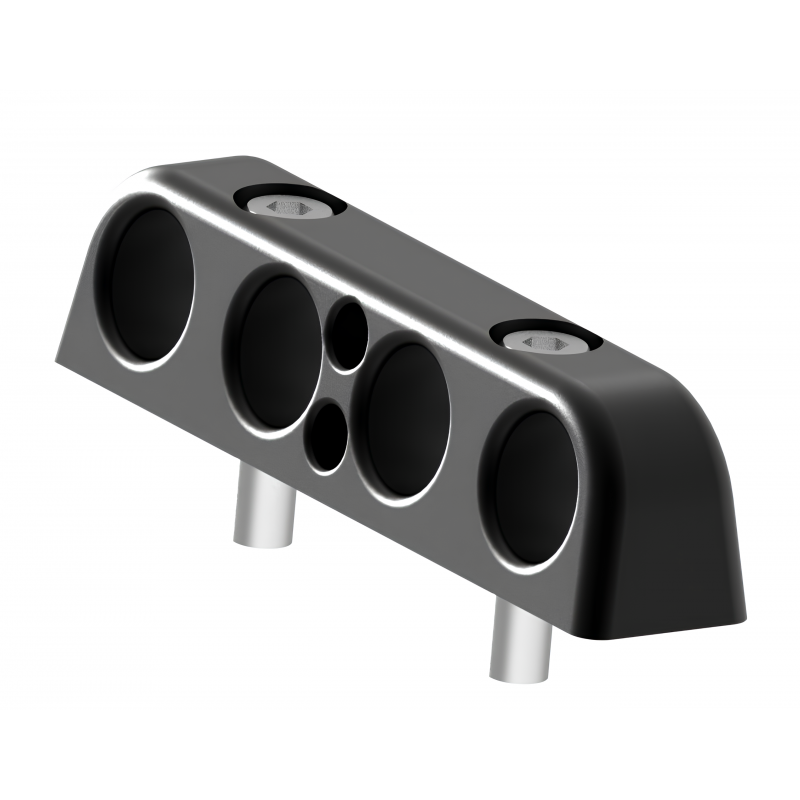

Bolt-Down Fairlead Nodus Factory | Fairlead Thimble Alu F1 A / 8
Bolt-Down Fairlead Nodus Factory | Fairlead Thimble Alu F1 A / 8
Couldn't load pickup availability

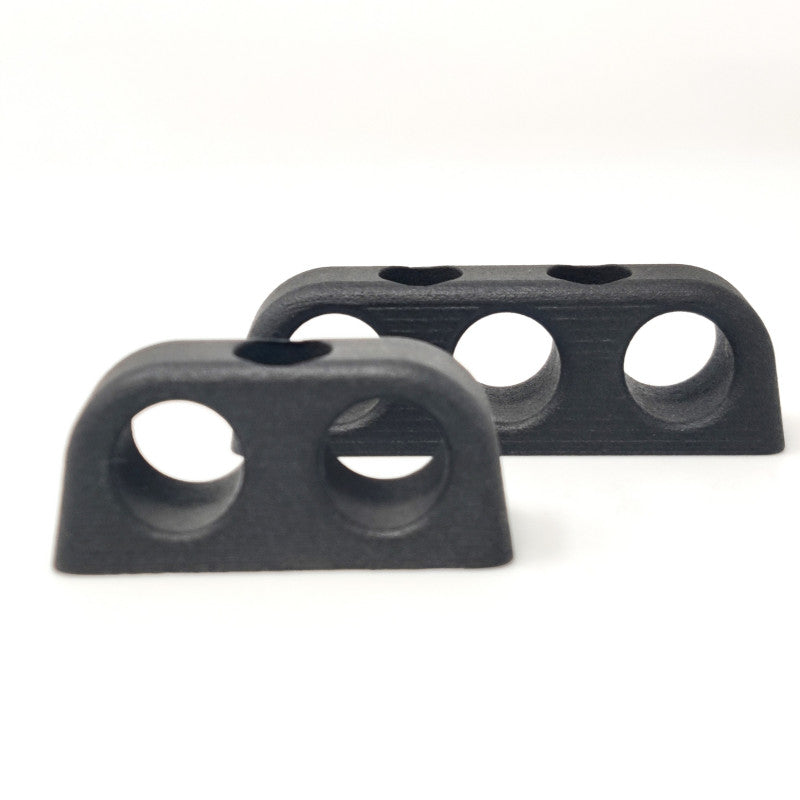

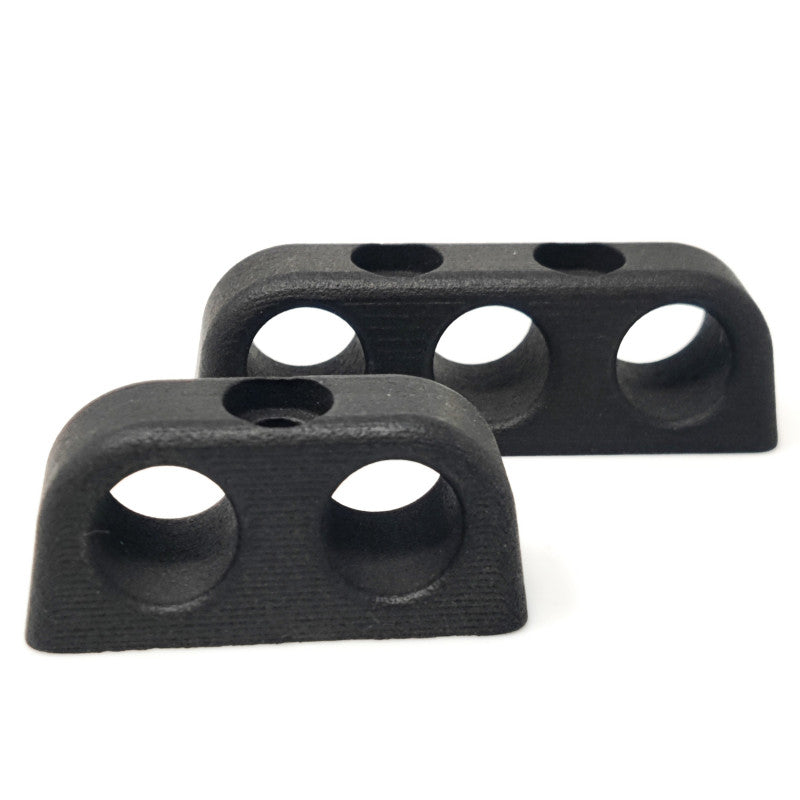

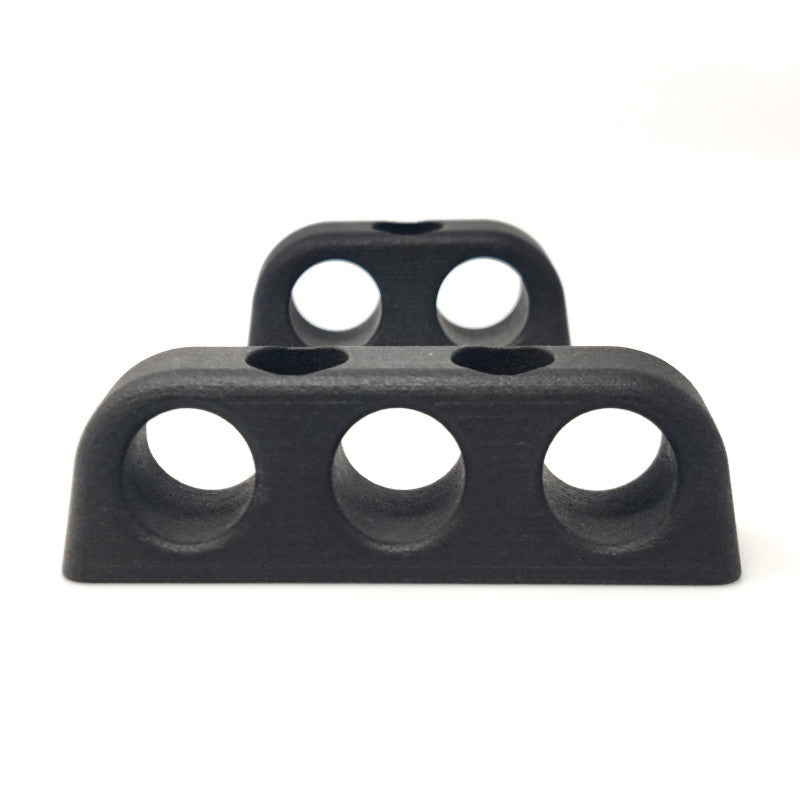

A "single or multiple" fairlead with very low friction for improved performance, less friction and longer rope life for less wear.
Specifically designed to be screwed or glued to the deck.
Thimble Aluminum
Description
Applications
Halyard, sheet, furling line, sheaves, deck plan improvement
Ø 12 mm maximum rope
The line is used to guide and/or slightly deflect sheets, halyards or other lines on the deck of the sailboat.

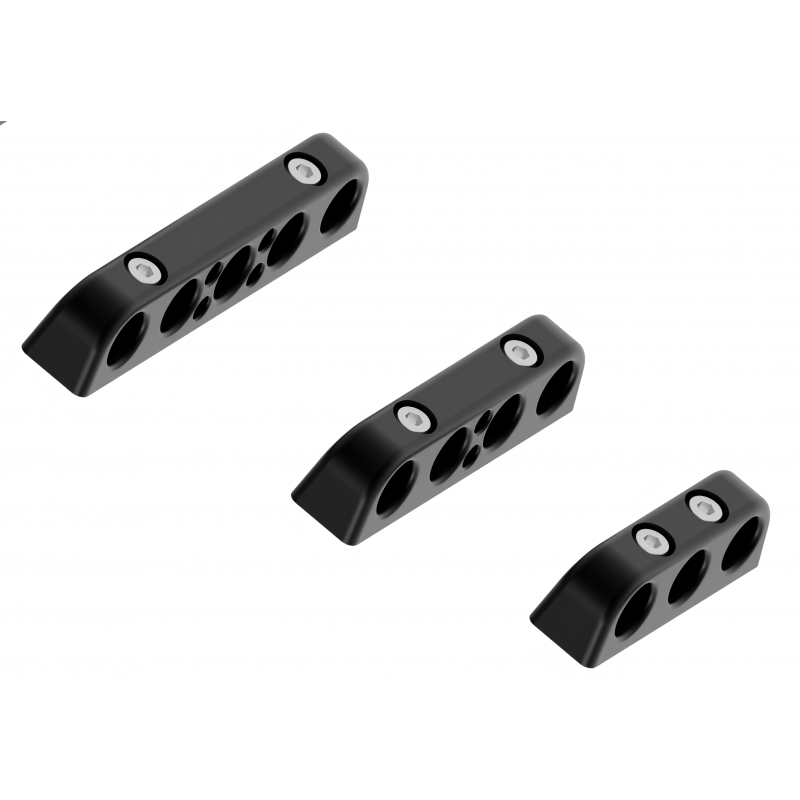

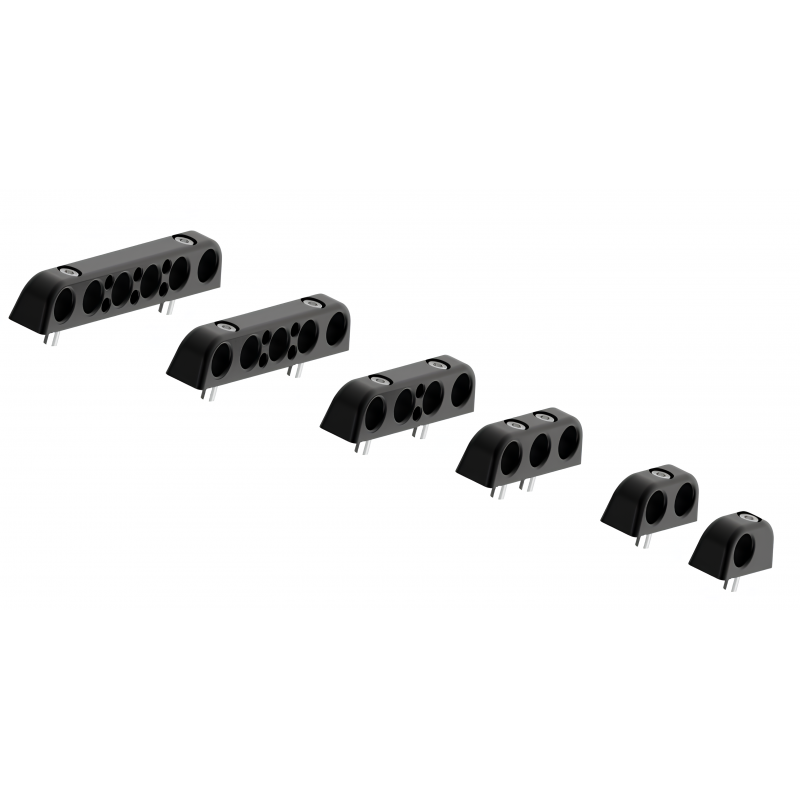

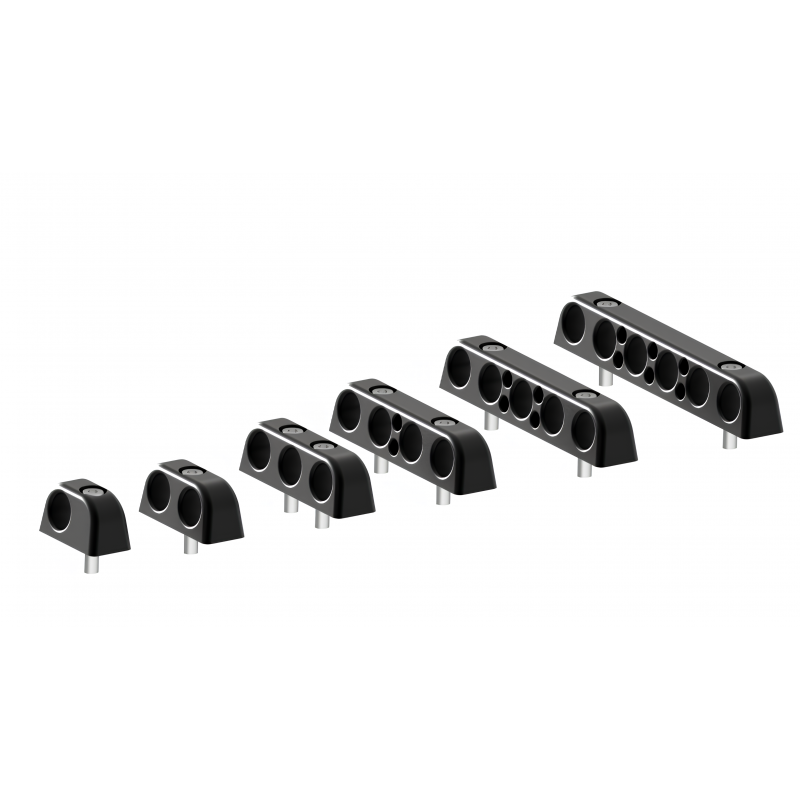

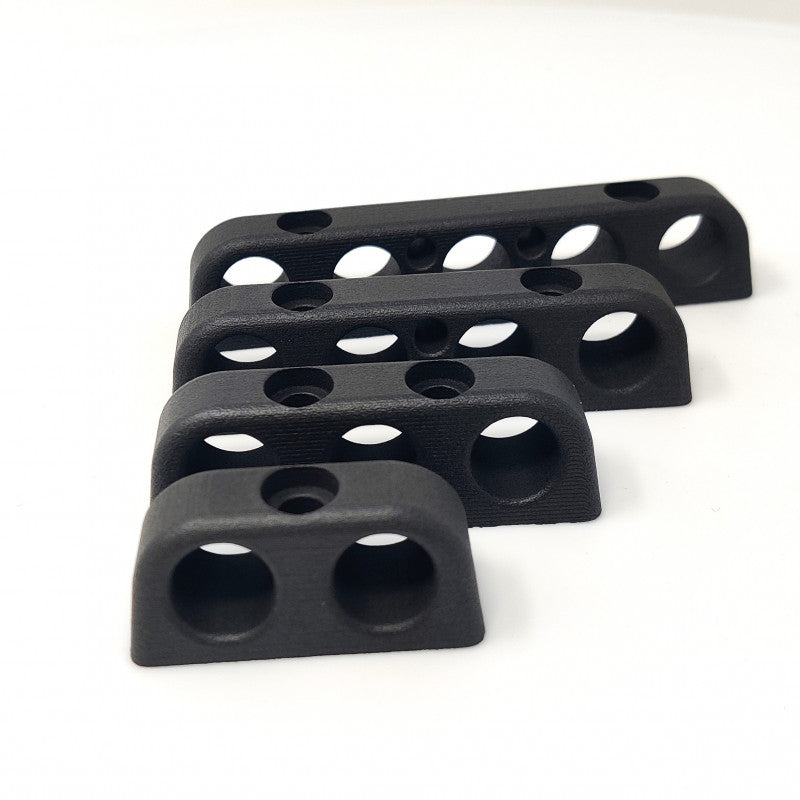

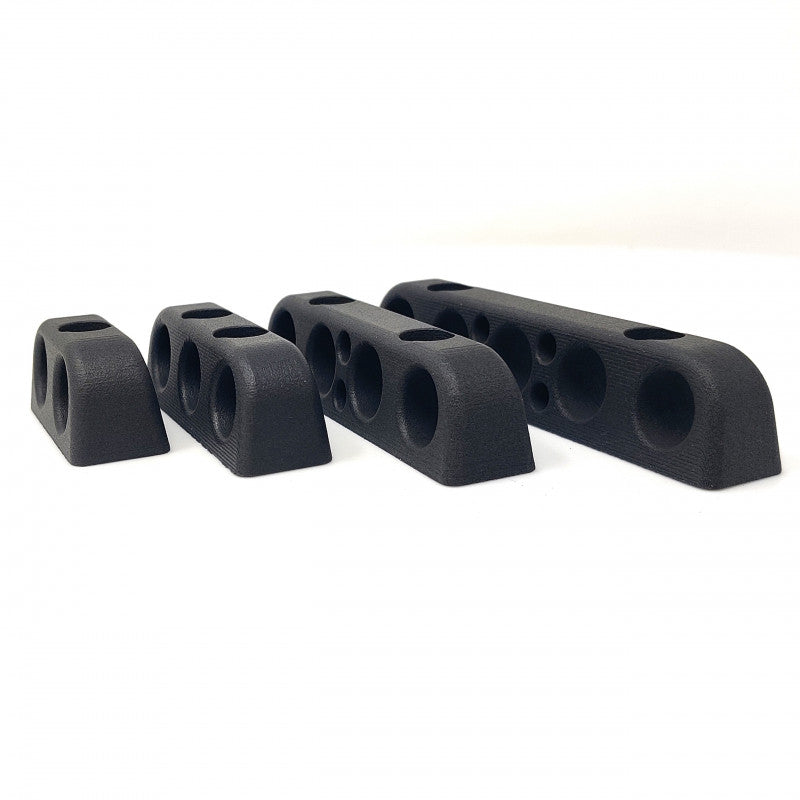

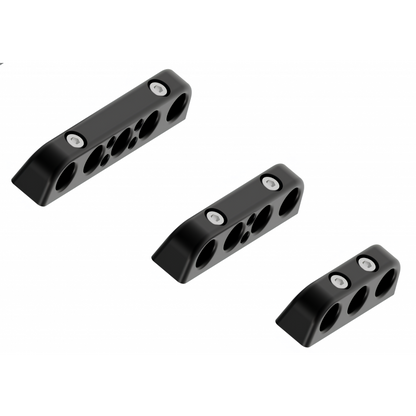

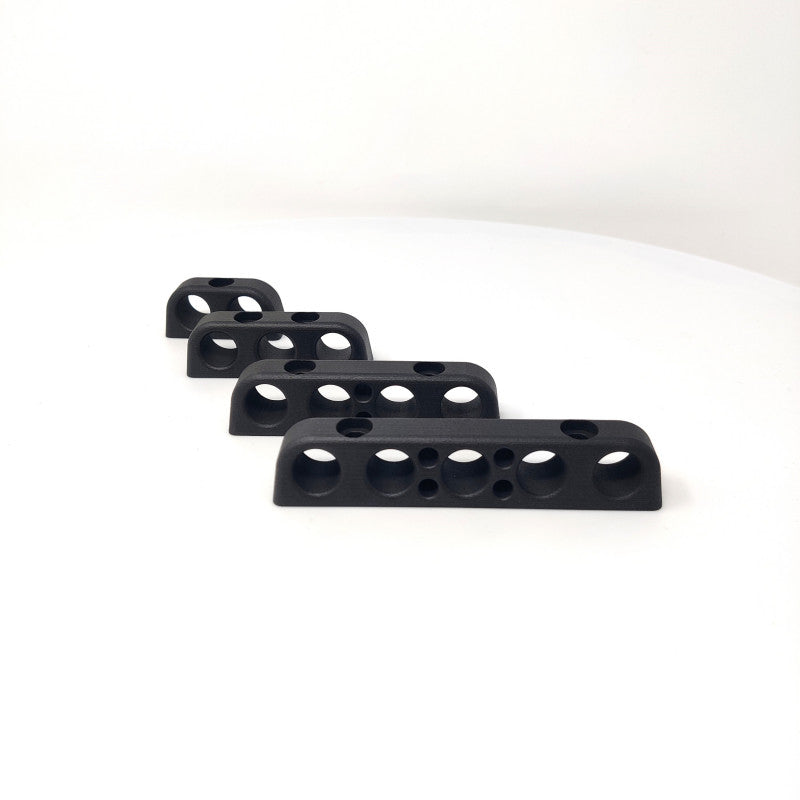

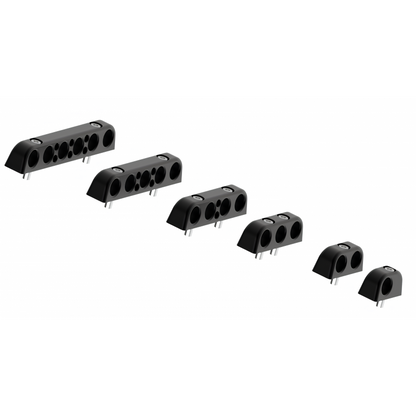

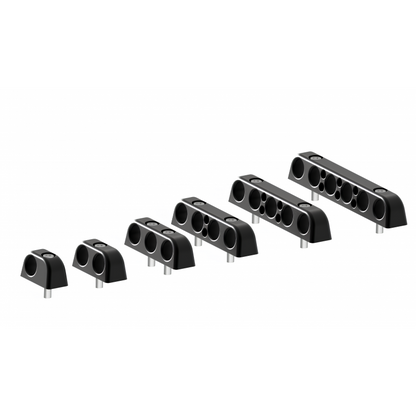

The Nodus Factory multiple fairlead is available with 1 to 6 ends for yachts from 6 to 15 metres.
Assembly
Fixing by screwing or gluing (Option)
1- Prepare and clean the surface.
2- Drill Ø 5 mm holes or tap.
3- Mix and apply the two-component adhesive
4- Glue and maintain pressure for at least 5'.
Wait 24 hours before use

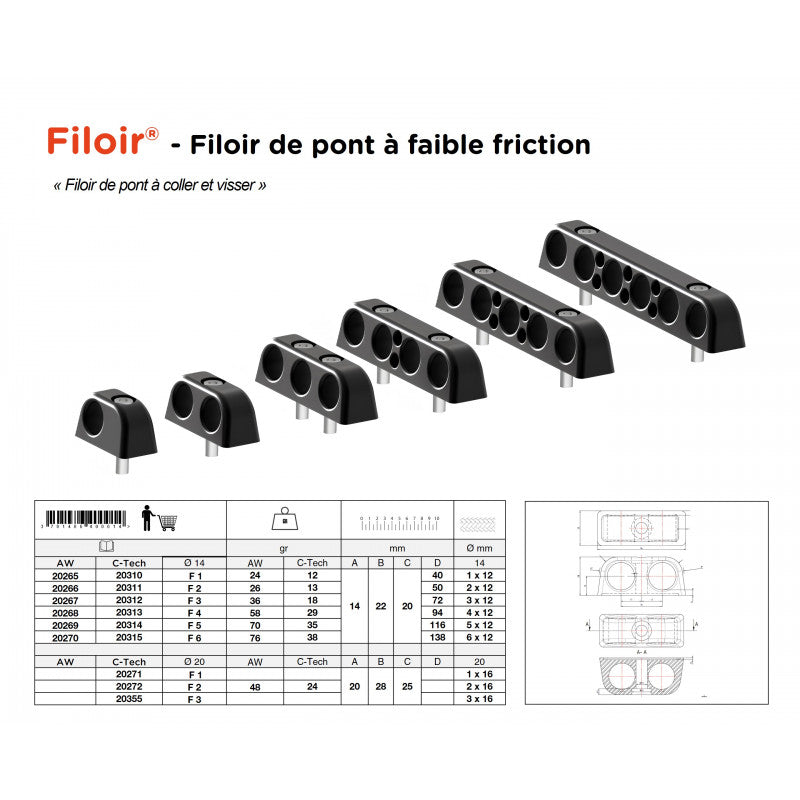

Data sheet
Deck Fairlead for gluing or screwing on:
Available in two materials
- C-Tech : 30% carbon-filled polyamide 6
- Aluminium AW-7075 T6 EN 573
Subbase :
- Diameter of hole 14 mm
- Height 22 mm
- Base width 20 mm
- Weight according to dimensions
Fixings :
- Hexagon socket head cap screws ISO 7380 - M6 × 30
- Two-component Nodus-Loc® glue
- Glue and screw with our bi-component glue
- Simple and easy to install
- Lightweight and strong
