ALUMINUM THIMBLE FOR KF1.5
ALUMINUM THIMBLE FOR KF1.5
Couldn't load pickup availability
Please contact us at sales@alveussupply.com to order this product.

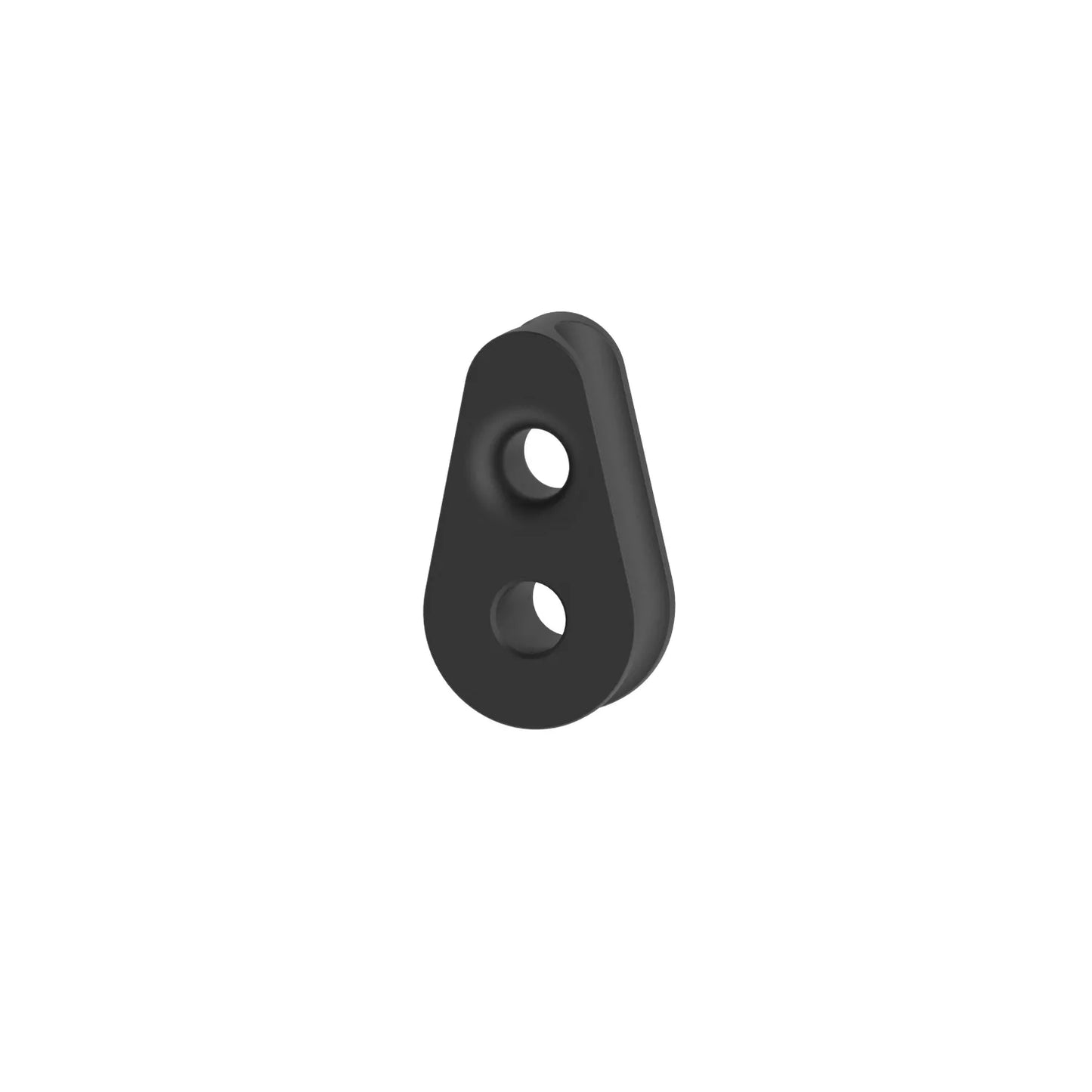

Aluminum thimble for KF1.5, KTS1.5 and KFH1.5
The thimble is the link between the anti torsion of the sail and the furler. It is an anodized aluminum part which adapts perfectly to the forks of our furlers. An unsuitable thimble quickly damages the feeder forks and decreases performance. Do not hesitate to ask your sailboat to install the thimbles adapted to your furler.
Specifications
| Ref | PF350150 |
| Weight | 0.02 kg |
| Boat size | 10 to 40″ |
| Workload | 1,50 T |
| Breaking load | 3,00 T |
| Max line diameter (mm) | 11 |
| Thimble thickness (mm) | 14 |
| Pin diameter (mm) | 8,5 |
| Lashing hole diameter (mm) | 8 |
| Bushing (Y/N) | no |
Strengths
– Perfect integration into the forks of our furlers
– Ultra light and resistant (anodized aluminum)
– Be careful ! This thimble is not compatible with our old models KF1 / KSF1 / KTS1 / KFH1 because it is wider and deeper
– The use of other thimbles decreases the performance and longevity of our furlers
Tips
– Be careful ! This thimble is not compatible with our older models KF1 / KSF1 / KTS1 / KFH1 because it is wider and deeper
– It is not mandatory to have a Karver thimble for a Karver furler … but it is highly recommended to ” use a thimble that fits perfectly to our fork
– Basic stainless steel thimbles are to be avoided
