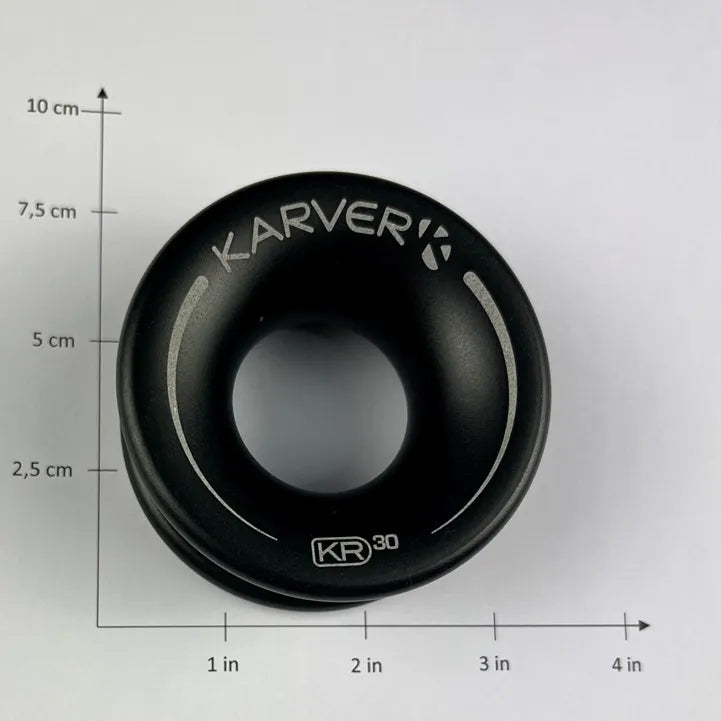

ALUMINUM LOW FRICTION RING KR30
ALUMINUM LOW FRICTION RING KR30
Couldn't load pickup availability
Please contact us at sales@alveussupply.com to order this product.
The KR30 is a low-friction aluminum ring with a maximum internal passage for a 7 mm rope.
Low-friction rings have been a staple in deck equipment for several years for their versatility, compactness, weight and price. They are real assets for performance and comfort.
Specifications
| Ref | PF1023000 |
| Weight | 0.105 kg |
| Boat size | 10 to 110″ |
| Workload | 6,00 T |
| Breaking load | 12,00 T |
| Material | Alu. |
| External diameter (mm) | 30 |
| Groove diameter (mm) | 20 |
| External diameter (mm) | 67.75 |
| Thickness (mm) | 32 |
Strengths
– Versability : use for many applications
– 6082T6 high performance aluminum
– Performance : ultra light and ultra compact
– Zero maintenance
– Teflon hard anodizing : abrasion resistance and low friction
– Wide range of rings
– Production of custom-made products possible
– Personalization possible
Tips
– A low friction ring remains a ring with higher friction than a bearing block. For applications where there is a lot of rope to pick up, prefer a block to a ring.
– Friction rings are ideal for rope deviations up to 25°.
– Depending on the applications, open rings (KRO) or Titanium (KRTi) may be more suitable
