Ray Marine

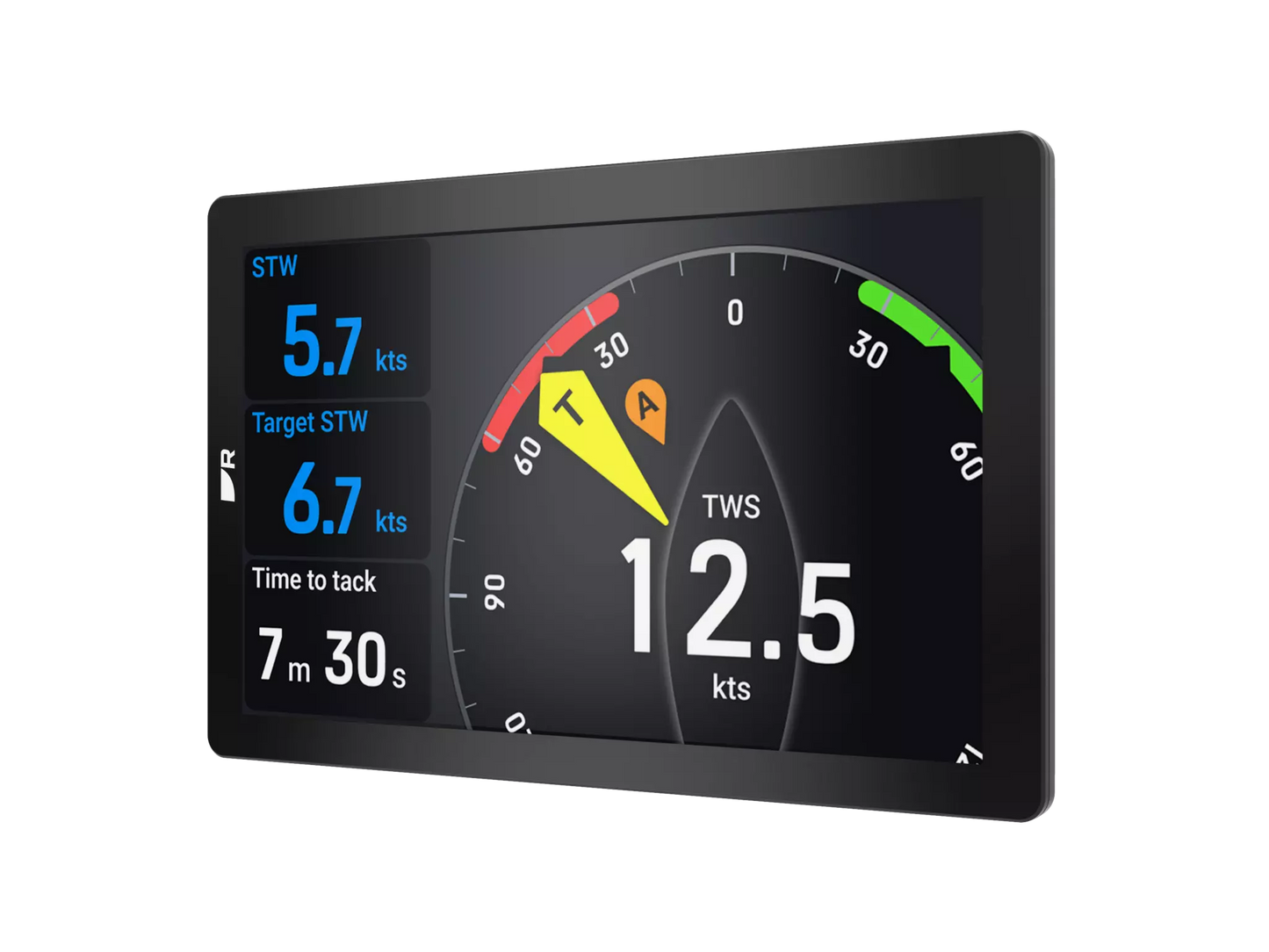

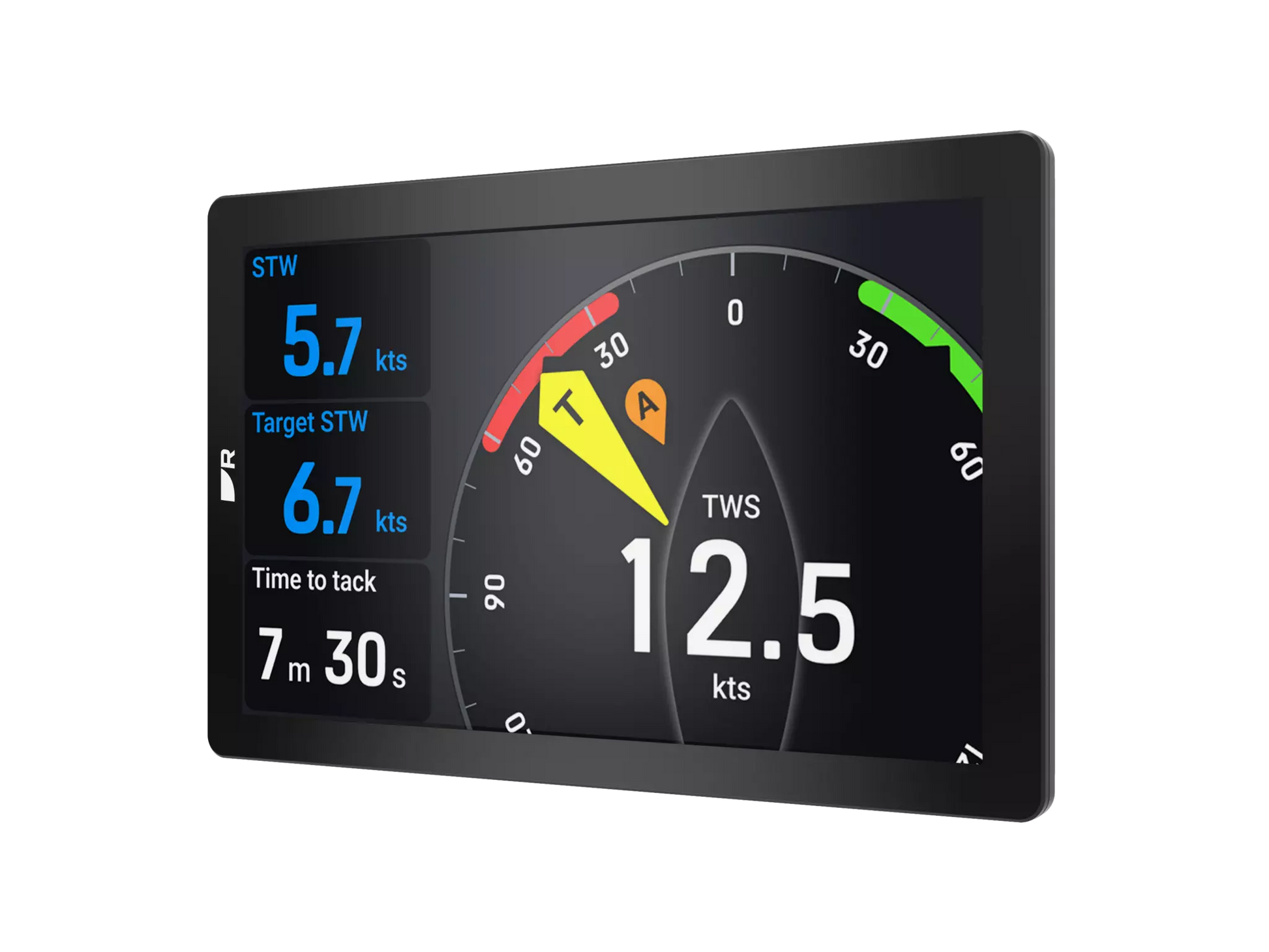

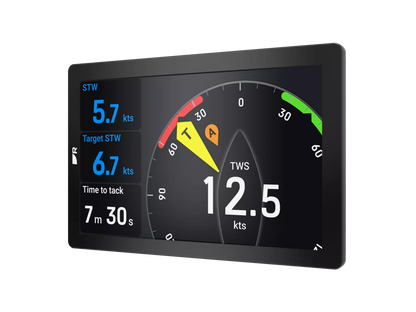

Alpha 7" Performance Display
Alpha 7" Performance Display
Couldn't load pickup availability
| Physical characteristics | |
|---|---|
| Width |
7" Alpha Display - 120.1 mm (4.72 in) Alpha 9" Display - 148.9 mm (5.86 in) |
| Height |
7" Alpha Display - 188.4 mm (7.42 in) Alpha 9" Display - 235.9 mm (9.29 in) |
| Thickness |
Alpha 7" Display - 32 mm (1.26 in) Alpha 9" Display - 34 mm (1.34 in) |
| Door separation distance |
5.71 mm (0.22 in) |
| Weight |
7" Alpha Display - 0.72 kg (1.59 lbs) Alpha 9" Display - 1.18 kg (2.60 lbs) |
| Feeding | |
|---|---|
| Voltage rating |
12/24 V DC |
| Operating supply voltage |
10.8 V to 32 V DC |
| Current |
7" Alpha Display - 0.84 A (nominal) @ 12 VDC / 0.43 A (nominal) @ 24 VDC 9" Alpha Display - 1.02A (nominal) @ 12VDC / 0.52A (nominal) @ 24VDC |
| Power consumption |
7" Alpha Display - 10W (maximum) 9" Alpha Display - 12W (maximum) |
| In-line fuse |
8 A |
| Thermostatic switch |
8 A |
| Network | |
|---|---|
| Axiom |

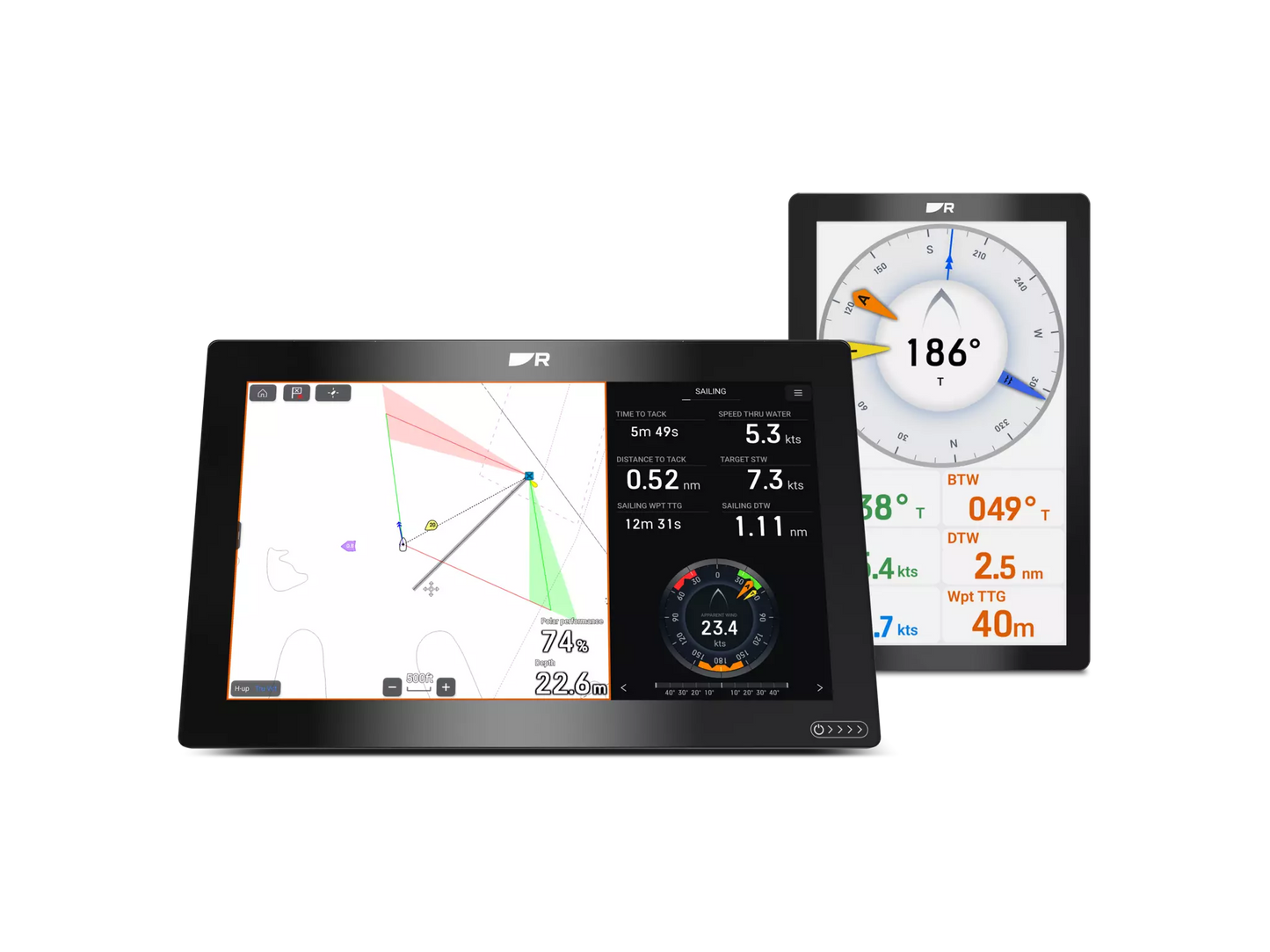

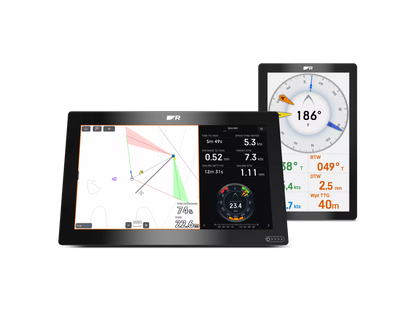

Alpha Performance displays require an Axiom chartplotter to operate. |
| Data Link |
1 x Daisy chain connector. 1 x RayNet Power/Ethernet Connector |
| Environmental Specifications | |
|---|---|
| Operating temperature range |
-25°C to +55°C (-13°F to +131°F) |
| Storage Temperature |
-30°C to +70°C (-22°F to +158°F) |
| Relative humidity |
93% max. |
| Impermeability |
IPx6 and IPx7 |
| Display | |
|---|---|
| Display screen |
7" Alpha Display - 7" TFT IPS LCD 9" Alpha Display - 9" TFT IPS LCD |
| Brightness |
1500 nits / 1500 cd/m2 |
| Visual angles |
Vertical - 85+/85+ Horizontal - 85+/85+ |
| Resolution |
7" Alpha Display - 1024 (H) x 600 (V) Alpha Display 9" - 1280 (H) x 720 (V) |
| PPI (pixels per inch) |
Display Alpha 7" - 170 PPI Display Alpha 9" - 163 PPI |
| Color |
24-bit color (16.7 million colors) |
| Refresh Rate |
60 Hz |
Become a better sailor

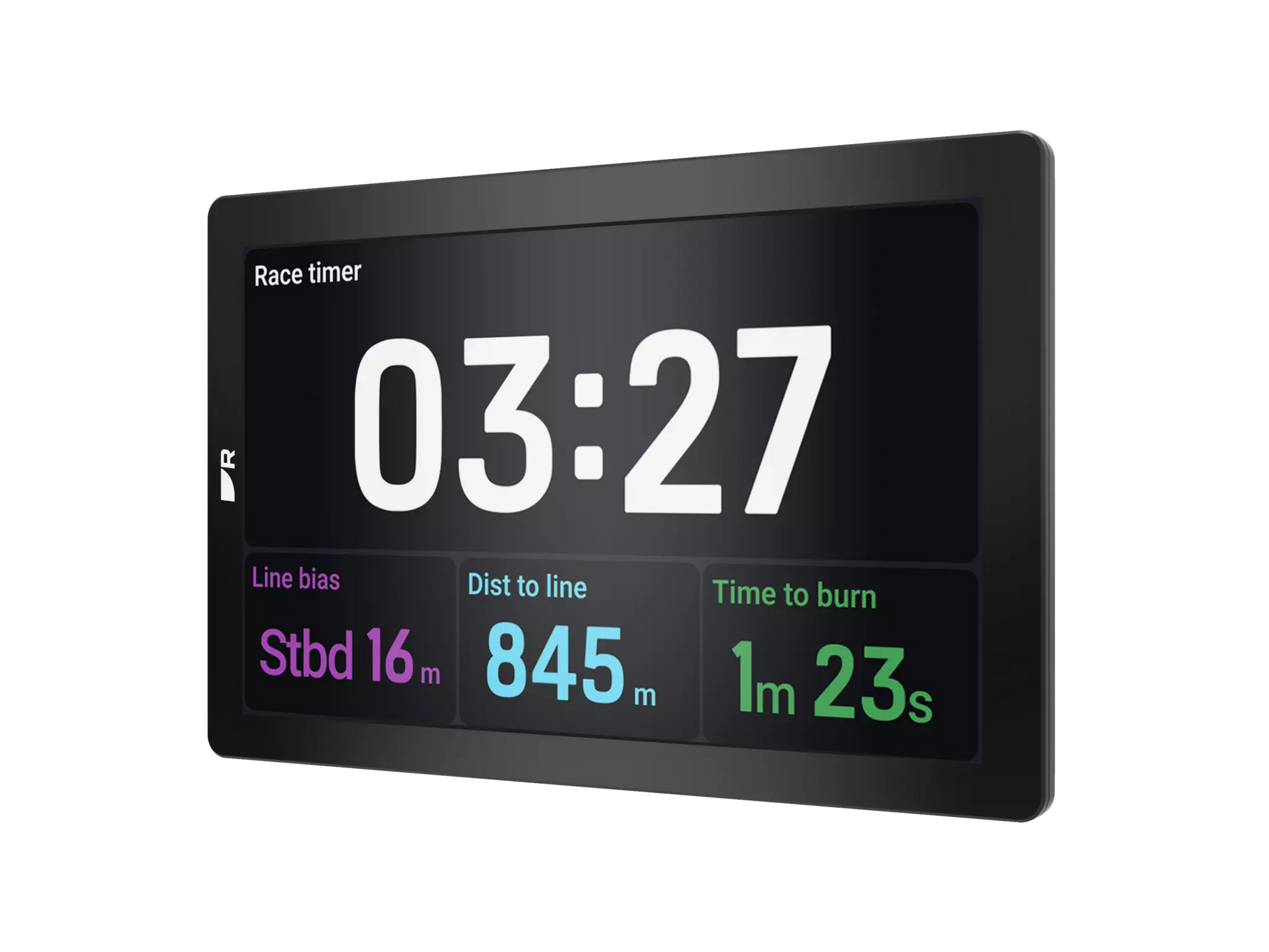

Tactical Awareness
Intuitive graphical displays to improve tactical awareness and facilitate decision-making on the water.
Dynamic wind
The dynamic wind display includes an automatic zoom on the most important section of the instrument display based on the direction of the instrument.

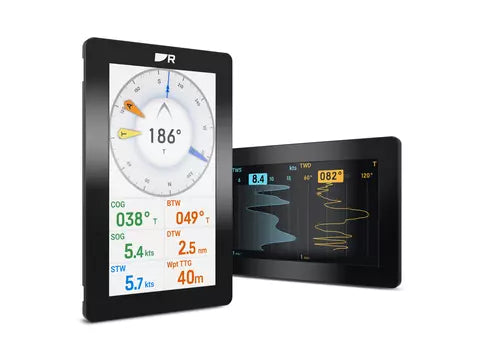

High visibility
The polarized displays, compatible with sunglasses and with very wide viewing angles, can be viewed on the tree or from a distant location.
Robust construction
Tested under extreme conditions and built with our exclusive HydroTough TM nano-coatingwho Repels water and oils for reliable touchscreen control at all times.
Fully scalable
A single power and data cable reduces the number of cables running through the bridge and mast. Support for daisy-chaining up to 4 Alpha displays

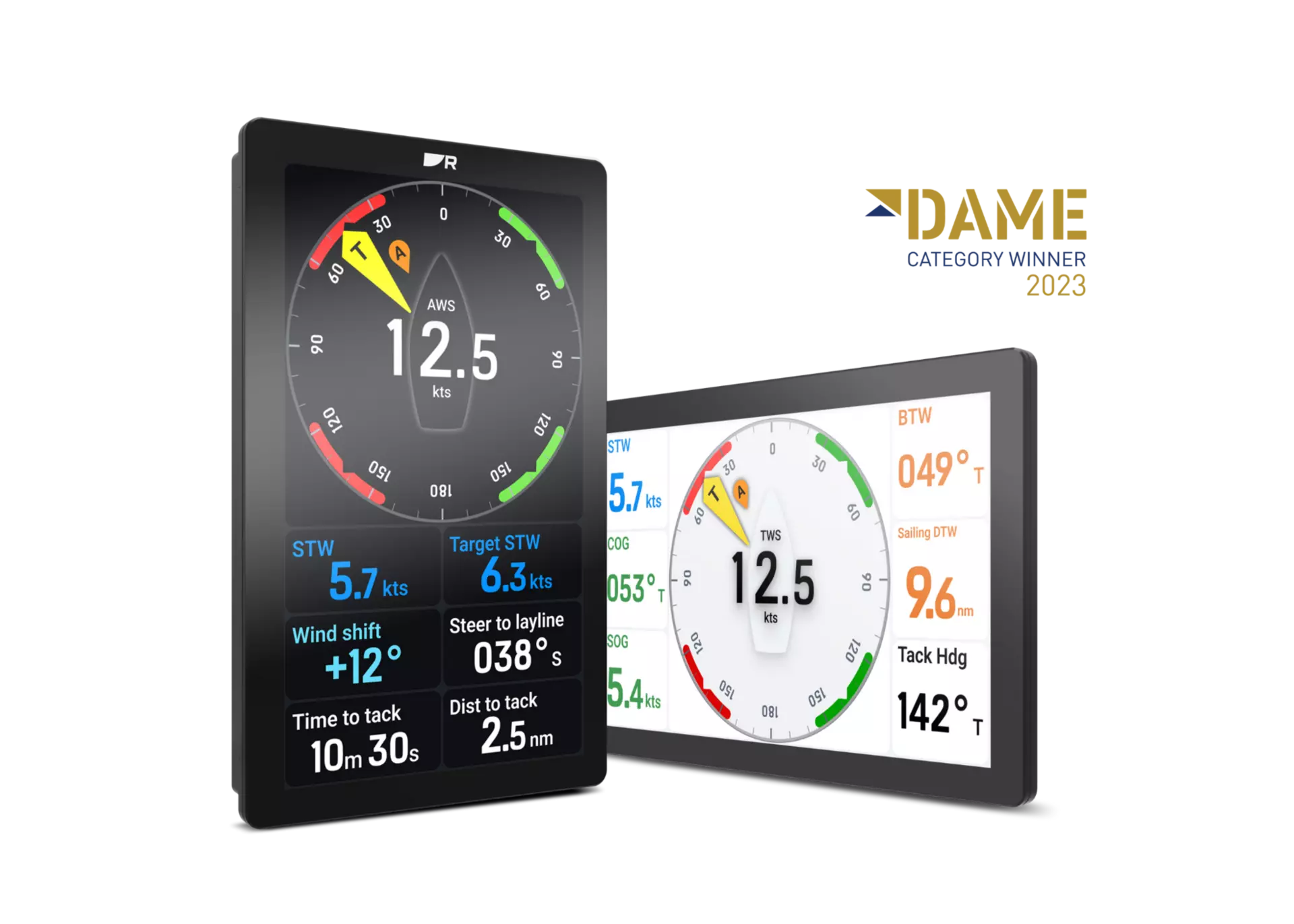

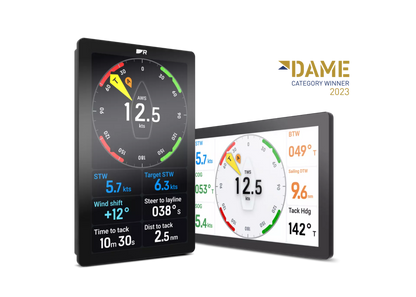

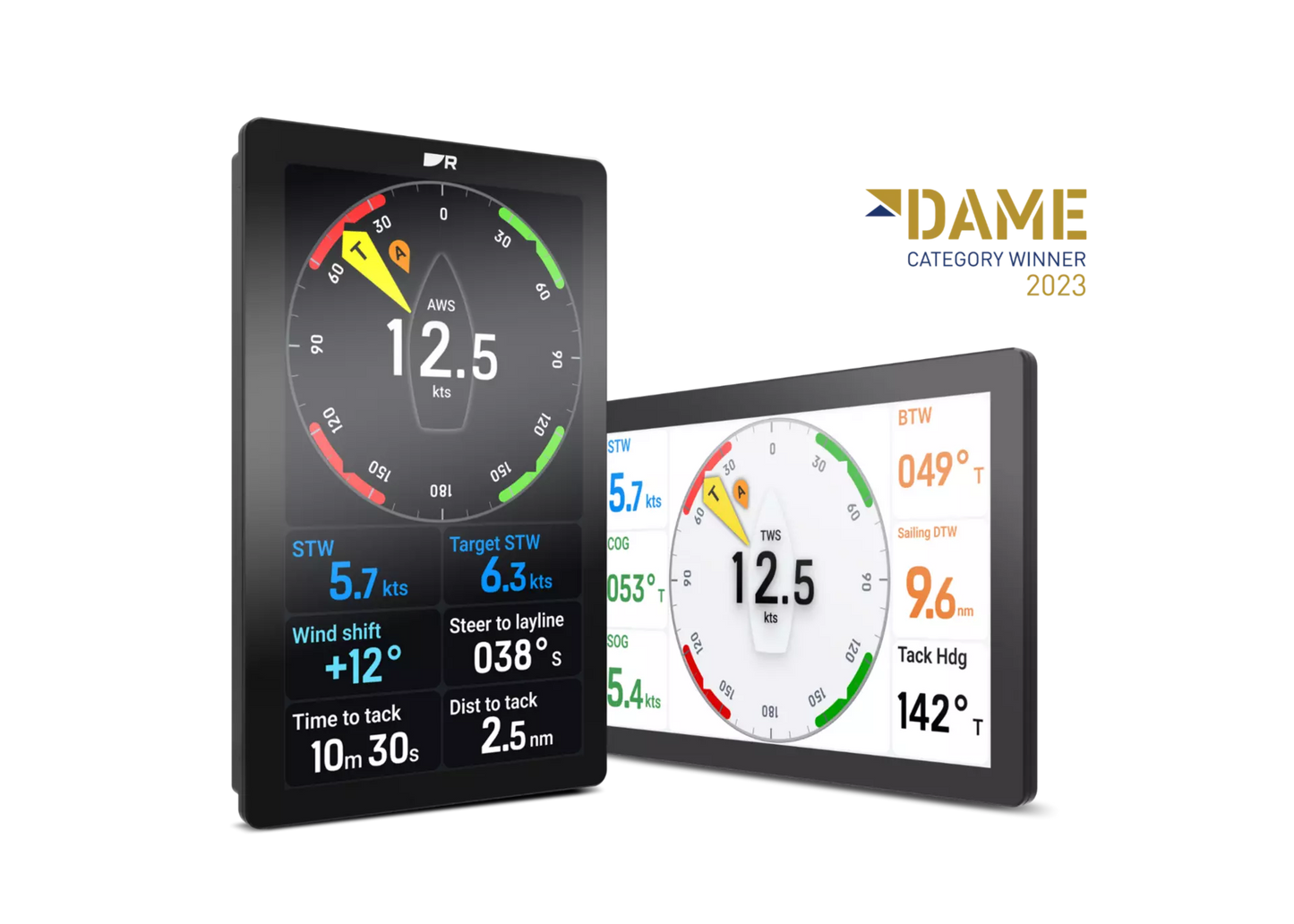

The ultimate award-winning sailboat display
Our most versatile displays for viewing navigation data. High-brightness touchscreen instruments with wide viewing angles provide excellent visibility from anywhere on board. Alpha's numerous options and data control panel widgets make it easy to interpret all important navigation and engine data at a glance.
The jury, made up of experts in the nautical sector, of the prestigious Dame Award declared it the winning product; "Given the lower than expected selling price, we are impressed with the performance of the Alpha Performance displays. This makes it more accessible to a greater number of users to have high-resolution browsing data on the big screen."
