Soft Shackle in Dyneema® for Block | T-close® T2
Soft Shackle in Dyneema® for Block | T-close® T2
POA
Couldn't load pickup availability

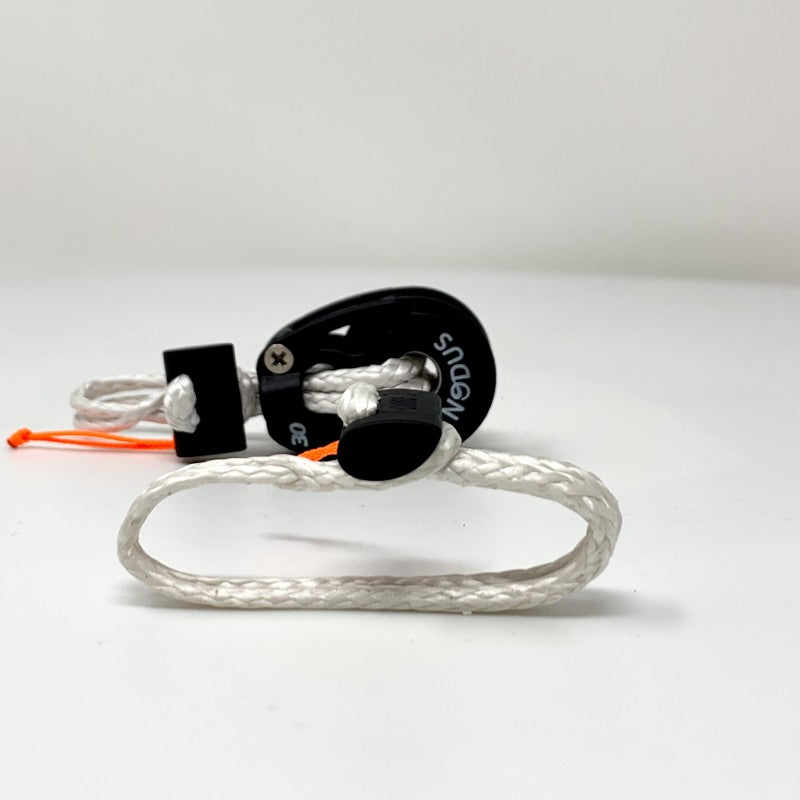

he T® shackle is a Dyneema® textile shackle specially designed for use with wire rope pulleys. It's easy to install, very light and can withstand heavy loads.
This shackle is compatible with most wire rope Pulleys as Hi-Tech Nodus Factory, Harken, Karver, Ronstan, Selden, Rutgerson... pulleys.
Materials: Dyneema® / Tech Polymer
Description
The textile T®shackle, specially designed for pulleys, is easy to use, very light and can withstand heavy loads. This product can be custom ordered.
+ Use
Textile shackle specially designed for pulleys
Easy to use ¬ Locking ¬ Cap® knot ¬ Quick to open, even under heavy loads
Data sheet
- T-close® connector ¬ Glass-fibre reinforced PA Tech
- 100% Dyneema® SK78 rope, pre-stretched and coated ¬ Light grey / black
- T® shackles are pre-stretched and glued® to prevent elongation when loaded
- Strength certified by Veritas / Calculation of load factor: example A 45° deflection has a load factor of 75%, so if I pull 100 kg, the pulley will only take 75 kg
Product Details
|
Designation |
Breaking Load |
Rope Ø | Lenght | Ø Interne | Weight |
|---|---|---|---|---|---|
| Straight | SK78 | Close | Pulley sheave | ||
| Kg | mm | cm | mm | gr | |
| T2 | 500 | 2/4 | 5 | 15/30 | 2 |
| T3 | 840 | 2.5/5 | 7 | 30/40 | 4 |
| T5 | 2450 | 4/8 | 9 | 40/50 | 14 |
| T6 | 2900 | 5/10 | 10 | 40/50 | 18 |
Avantages
- Textile connector for wire rope pulley
- The flexibility of the soft shackle connector ensures an in-line work with the forces.
Nodus & Tricks
- Refit your existing pulleys with a T shackle by removing the metal becket, valid only for pulleys with an open central axis.
