NODUS

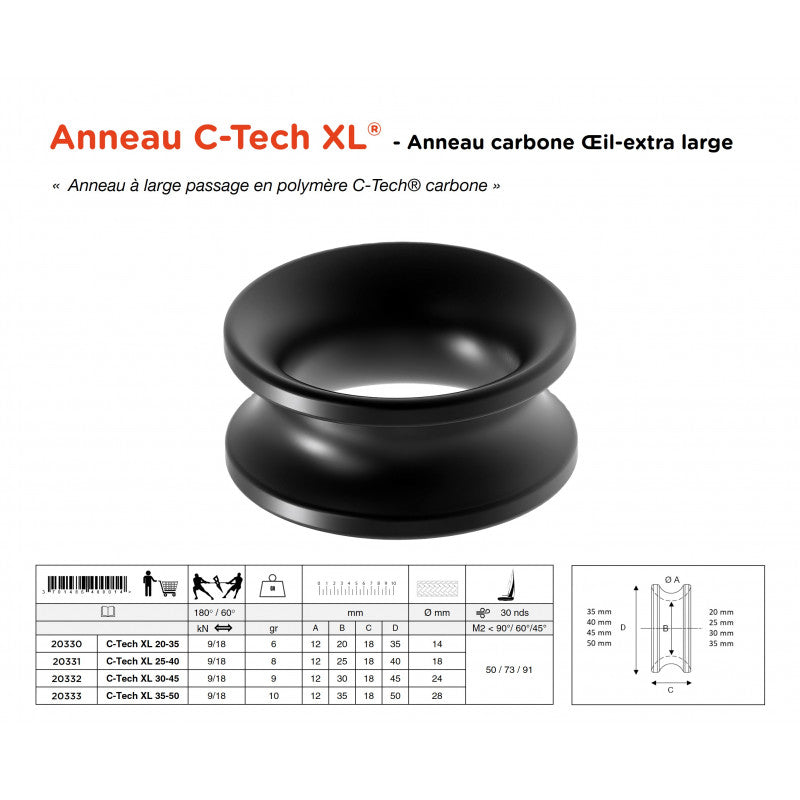

Low friction eye-extra large | C-Tech XL® carbon ring 30-45
Low friction eye-extra large | C-Tech XL® carbon ring 30-45
POA
Couldn't load pickup availability
REF: 20332
The Nodus Factory C-Tech XL low-friction carbon ring is specially designed for multiple maneuvering systems (3D genoa clew adjustment).
Unlike conventional low-friction rings, the C-Tech XL ring has a larger inner eye, while maintaining very high working loads.
Friction Ring choice- C-Tech XL 30-45
Description
Low-friction ring - Dynamic use C-Tech XL carbon
- Extra-wide passage
- 3D headsail adjustment
- Double-sheeted crossings
... just about everything, depending on the load requirements!
Dynamic use, high friction speed T°C continuous use T °C + 170 /191
P-tech C coefficient of friction 0.38 compared to aluminum 1.35
Benefits
Large inner eye (multi-cording depending on Ø)
Low, wide groove reduces impact
- the recommended Ø8 mm connector textile acts as a shock absorber
- Minimal throat height
Very low coefficient of friction
Good tensile and bending strength
