NODUS
Low friction eye-extra large | C-Tech XL® carbon ring 20-35
Low friction eye-extra large | C-Tech XL® carbon ring 20-35
Couldn't load pickup availability

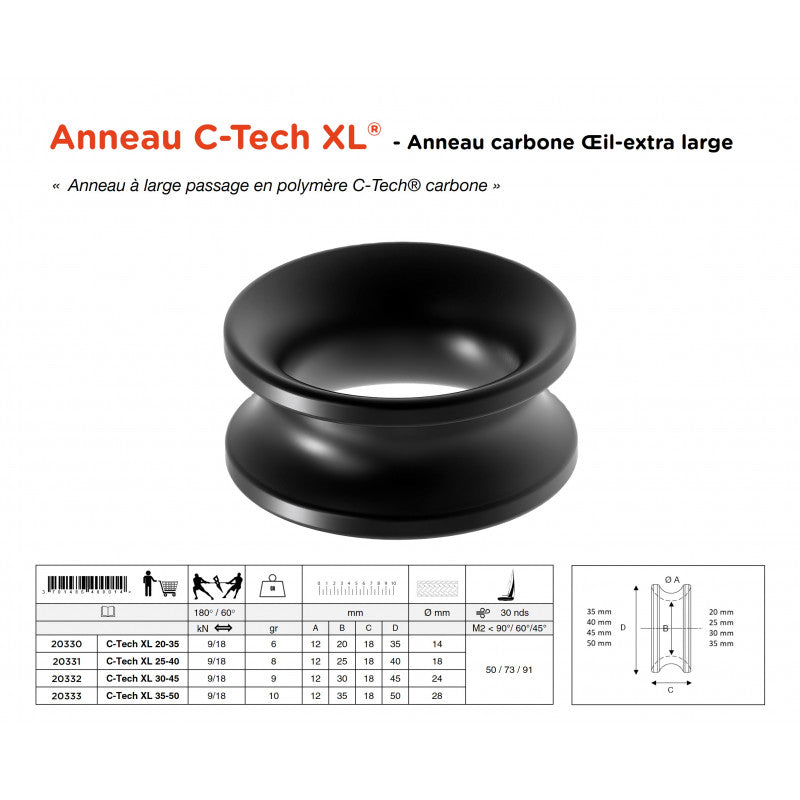

The Nodus Factory C-Tech XL low-friction carbon ring is specially designed for multiple maneuvering systems (3D genoa clew adjustment).
Unlike conventional low-friction rings, the C-Tech XL ring has a larger inner eye, while maintaining very high working loads.
Friction Ring choice - C-Tech XL 20-35
Description
Low-friction ring - Dynamic use C-Tech XL carbon
- Extra-wide passage
- 3D headsail adjustment
- Double-sheeted crossings
... just about everything, depending on the load requirements!
Dynamic use, high friction speed T°C continuous use T °C + 170 /191
P-tech C coefficient of friction 0.38 compared to aluminum 1.35
Data sheet
C-Tech XL carbon, low-friction ring in carbon-filled polyamide
- High Friction ¬ Technical polyamide C-Tech® Pa 11 ¬ 30% carbon Black
Thermoplastic polymer from the aliphatic polyamide family, derived from castor oil and therefore of renewable origin.
- 2 components / Base polymer, recycled carbon fibers
Strong and rigid: Carbon reinforces PA11, making it ideal for parts subject to high loads.
Lightweight: PA11 is lighter than other composite materials.
Chemical resistance: PA11 is resistant to a wide range of chemicals, making it suitable for many industrial applications.
