Hook opening pulley | TH-M® Dynamics TH-Mc 16
Hook opening pulley | TH-M® Dynamics TH-Mc 16
Couldn't load pickup availability
The opening pulley with friction -Textile-Hook® Th-M
Allows control and return of live sheets
Allows you to pass a rope quickly in any situation
Allows you to multiply efforts and redirect a maneuver, halyard or sheet, move a load in a different direction.
Designed to support two types of load:
static load: Textile-Hook Ms
dynamic load: Textile-Hook Mc
Description

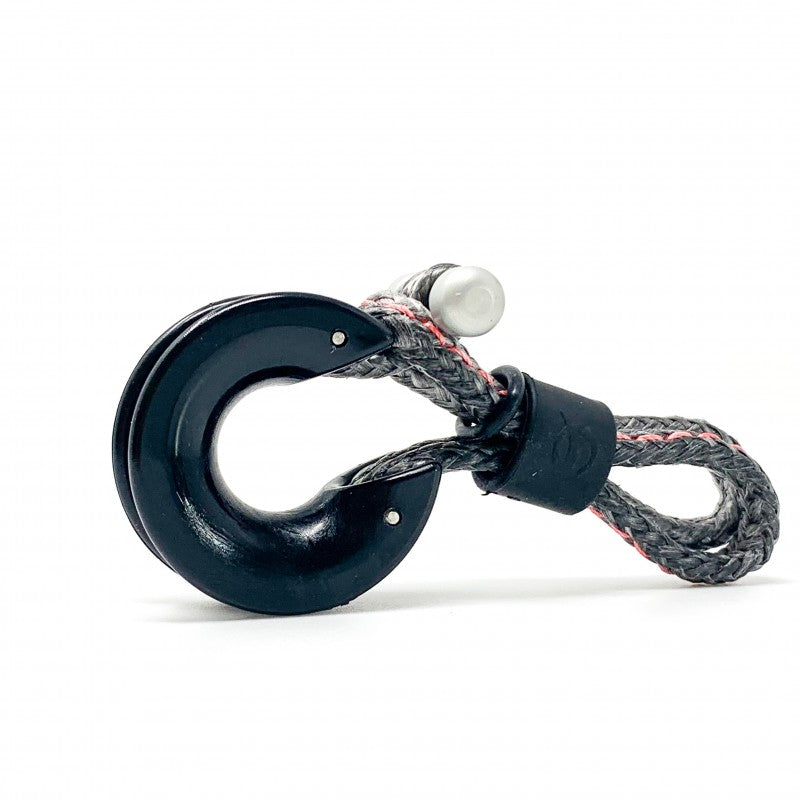

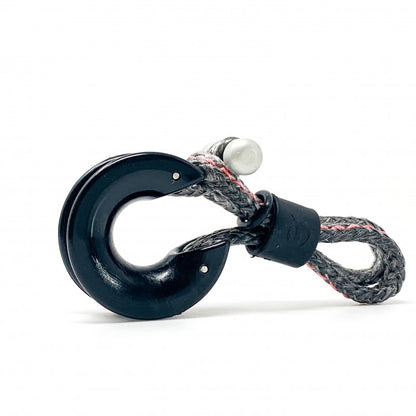

TH-M®, the Textil Hook opening friction ring is the lightest and strongest removable sheet control solution.

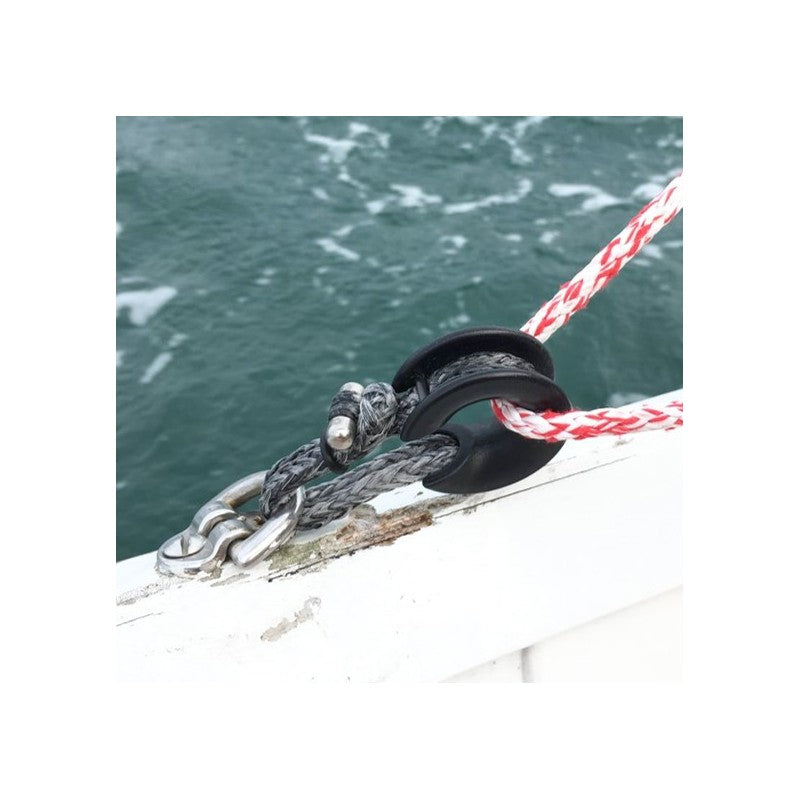

It allows the control and the return of the sheets under tension. This opening friction ring is easy to position on the rope and its textile attachment system prevents any opening under load.
WARNING, this product does not replace an opening pulley (HK 16 | HK16.2), which is designed for dynamic use
+ Uses
- Enables rope to be quickly passed in any situation
- Barber, in-haulers or spare pulley
- Can be installed anywhere or on the deck
- Hoist (mainsail, vang, running backstay,…etc)
- Not recommended for a hoist, opt for our Hook-NUB 60c
+ Spreadability
- Repairability category 3
Repairability index - (Link to explanatory table)
Data sheet
- Nodus Factory opening friction ring made of Self-lubricating technical plastic resin ¬ black
- Block® ring, clamping and holding ring, made of technical PA, which can lock and quickly fix a textile hook friction
- Shackle High Load®, core and sheath made of 100% Dyneema® Nodex R2 12fx pre-stretched, coated ¬ Light grey / black with Dog bone in Aluminium

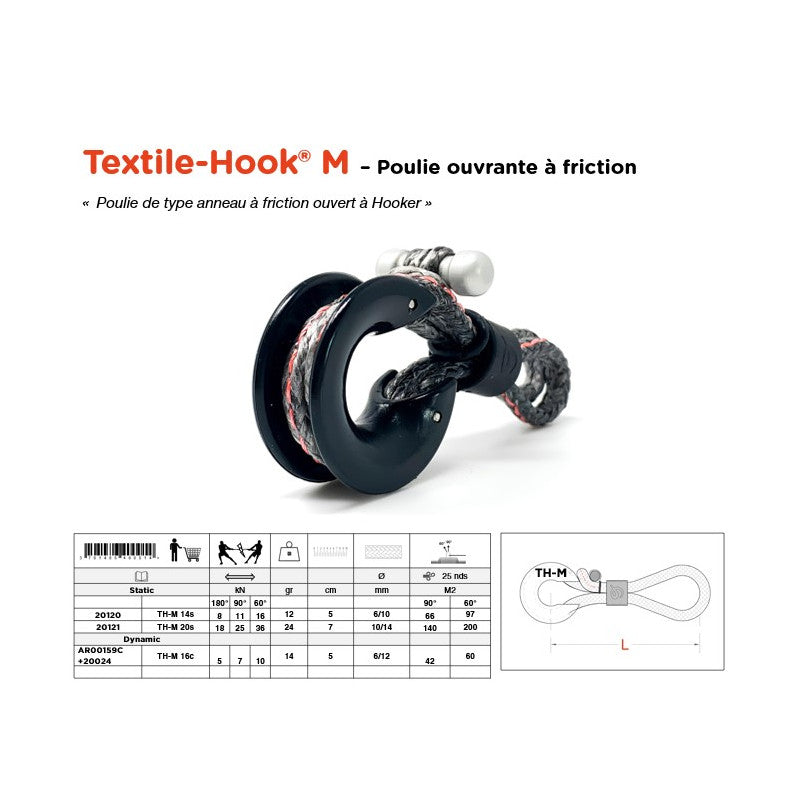

Product Details
|
Product Name |
Safe working Load |
Lenght | Ø Intern | Ø Rope Recommended |
Sail Aera |
| Direct | Ring | Haliard/Listening | 25 nds | ||
| Kg | cm | mm | mm |
upwind / downwind |
|
| TH M14 | 2500 | 5 | 14 | 6/10 | 90m² / 140m² |
| TH M20 |
3000 | 7 | 20 | 10/14 | 120m² / 180m² |
Avantages
- Opening friction ring system, mobile and versatile
- Weight/strength ratio
- Performance, lightness and reliability
- Reliable and maintenance free
Nodus and tricks
- Used at the foot of the mast, the Snatch-Block enables fast movement
- Prefer Textile Snatch block friction in deck plan because it works in horizontal position
