Hook opening pulley | HK® single HK22
Hook opening pulley | HK® single HK22
Couldn't load pickup availability

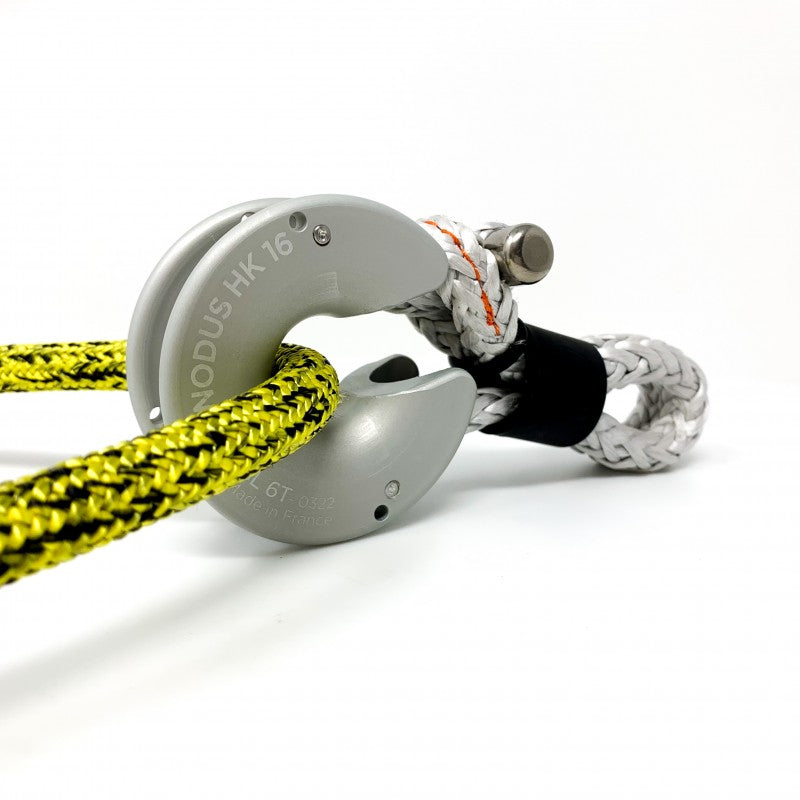

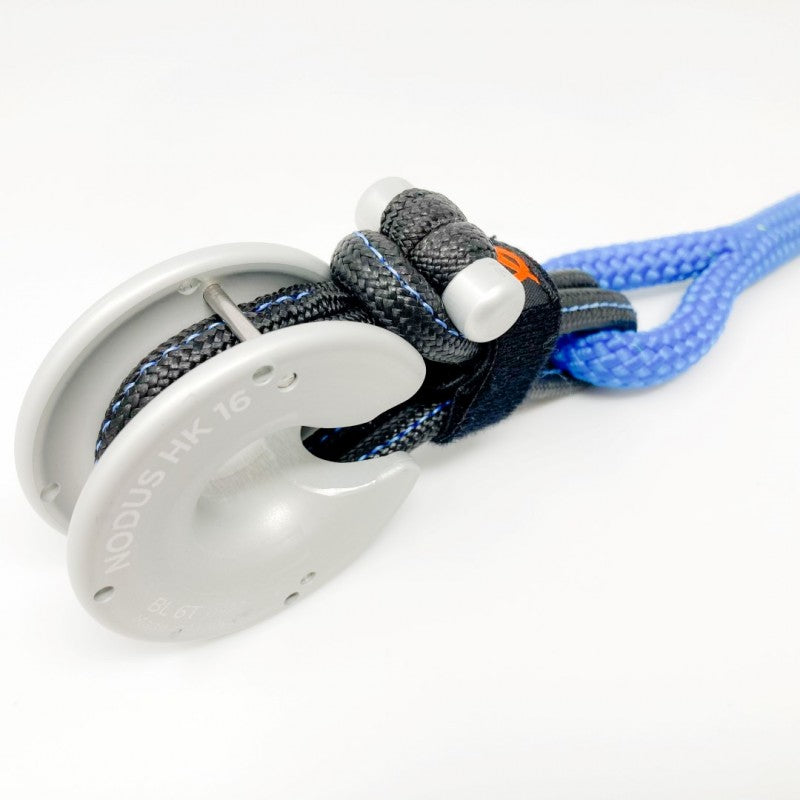

The Hook Nodus HK® 16, is a low-friction opening pulley ring for temporarily replacing a pulley or slightly deviating a maneuver such as a barber. An excellent alternative to conventional opening pulleys.
Control and efficiency
The Textile-Hook® friction opening block is designed for precise control and efficient return of sheets under tension. Its ability to quickly pass a rope in any situation facilitates maneuvering and optimizes performance.
Description
Hook-Nodus HK® is the lightest, strongest sheet control solution on the market for 16 mm, 22 mm or 32 mm rope.
An opening friction block that attaches easily to a spinnaker or genoa sheet, its textile snap hook closure prevents the rope from coming out, supplied with a Dyneema® overbraided shackle.
+ Application
- Controls and returns sheets under tension.
- Allows quick rope handling in any situation
- Barber hauler, in hauler, opening pulley
- Quick attachment: 3D genoa, spinnaker, 8.1 control.
+ Repairability
- Repairability category 3
Repairability index -(Link to explanatory table)

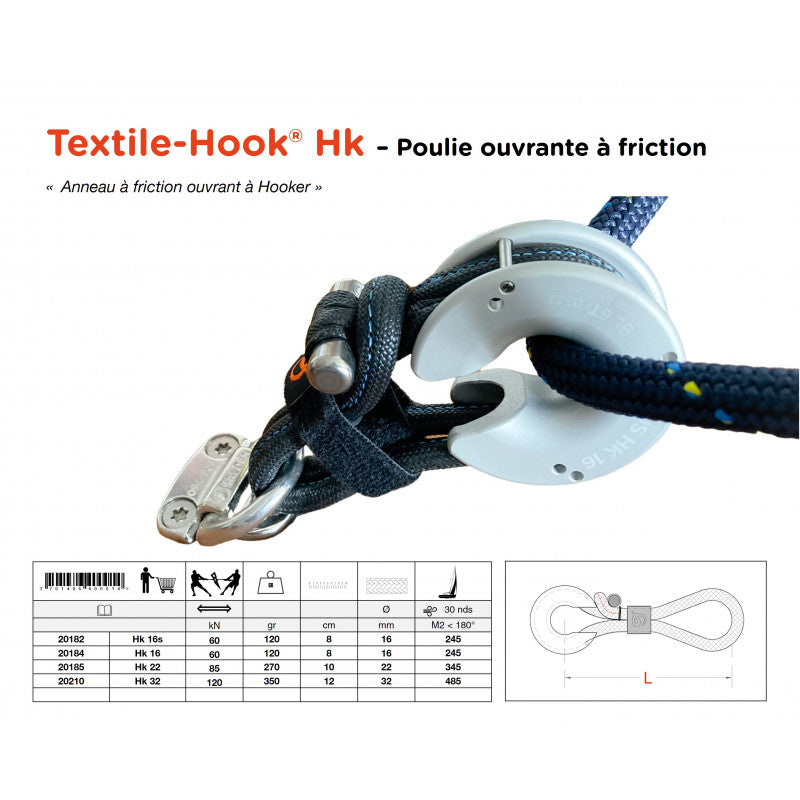

Data sheet
High-quality materials
- Body in hardened anodized 7075 aluminum for exceptional strength
- 100% Dyneema® SK78 or SK99 12fx core and sheath, pre-stretched and smeared for extra durability
- Soft thermoplastic TPE Block® ring for smooth, quiet operation
Versatility and adaptability

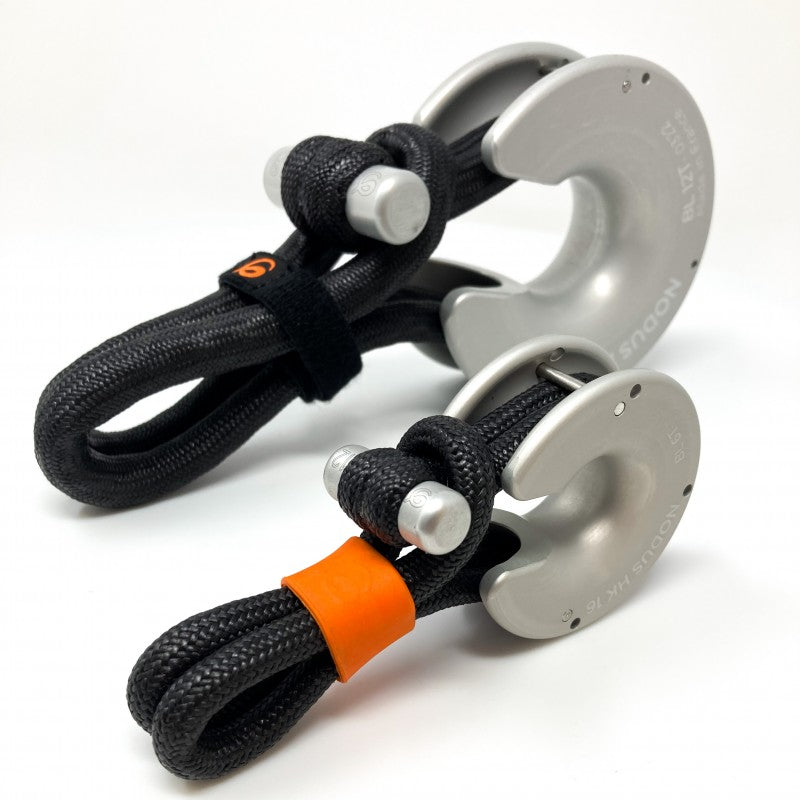

- Available in two ranges: M shackle and HL shackle
- Standard use with "Coating" or technical use with "Surgaine Dyneema® 48 fx" as an option
Features
- High breaking load
- Light weight
- Ease of use
- Abrasion and UV resistance
- Ideal for a wide range of uses
Further information
- Components:
- Body: 7075 aluminum
- Rope: high-density polyethylene (HDPE)
Product Details
Advantages
- Opening friction ring system, mobile and versatile
- Excellent weight/resistance ratio
- Efficient, lightweight
- Reliable and maintenance free
- Removable
- Captive, thanks to our double safety system : Velcro® & Bague Block
