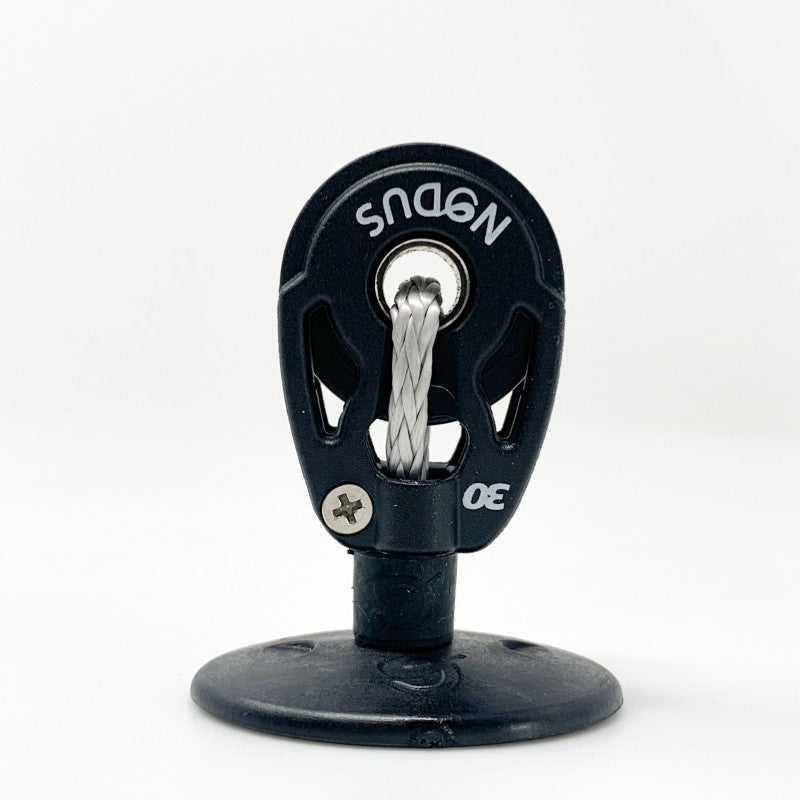

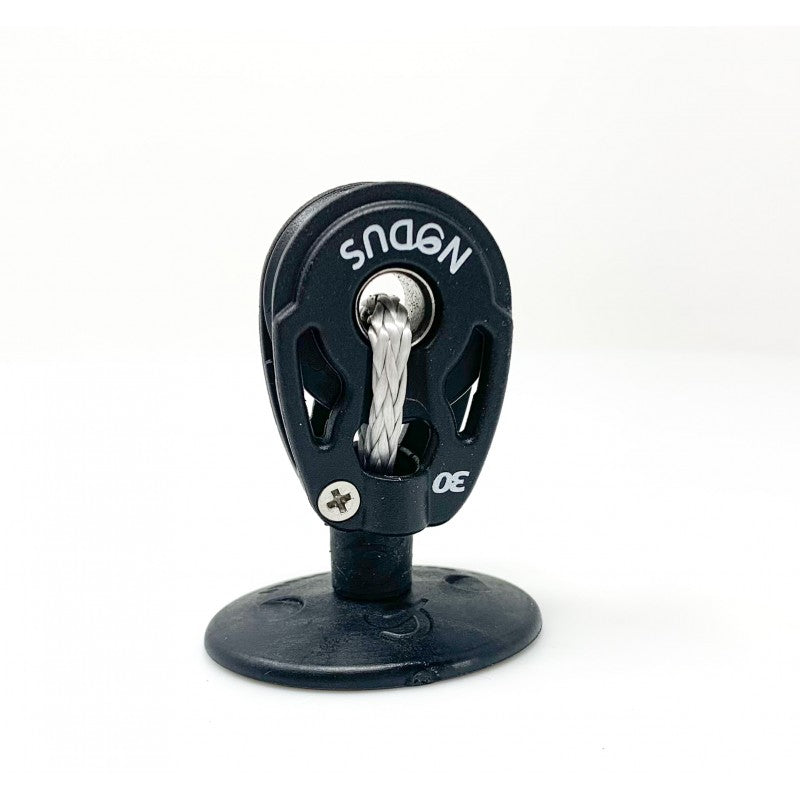

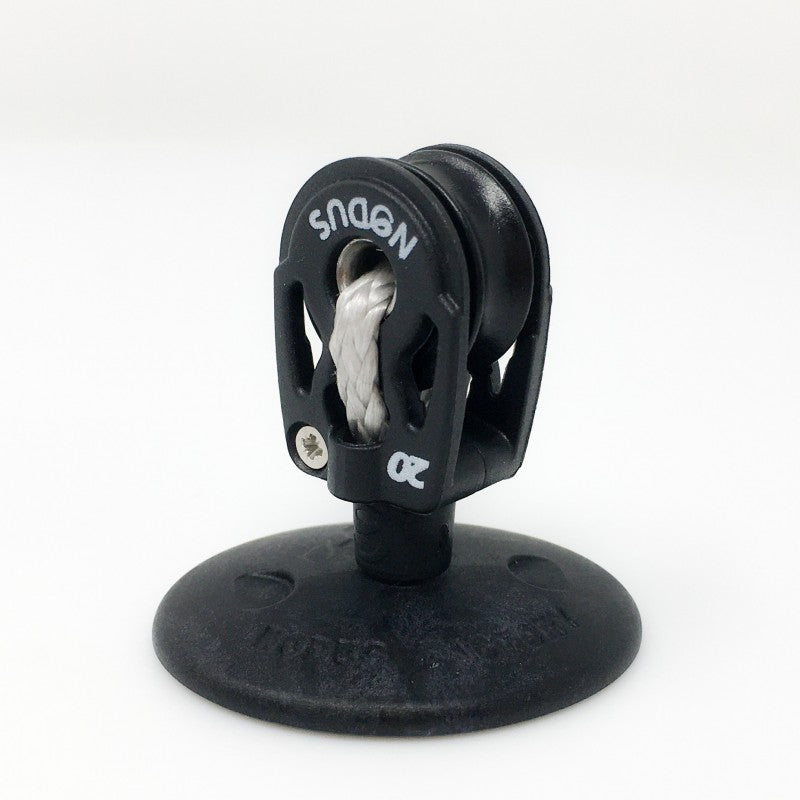

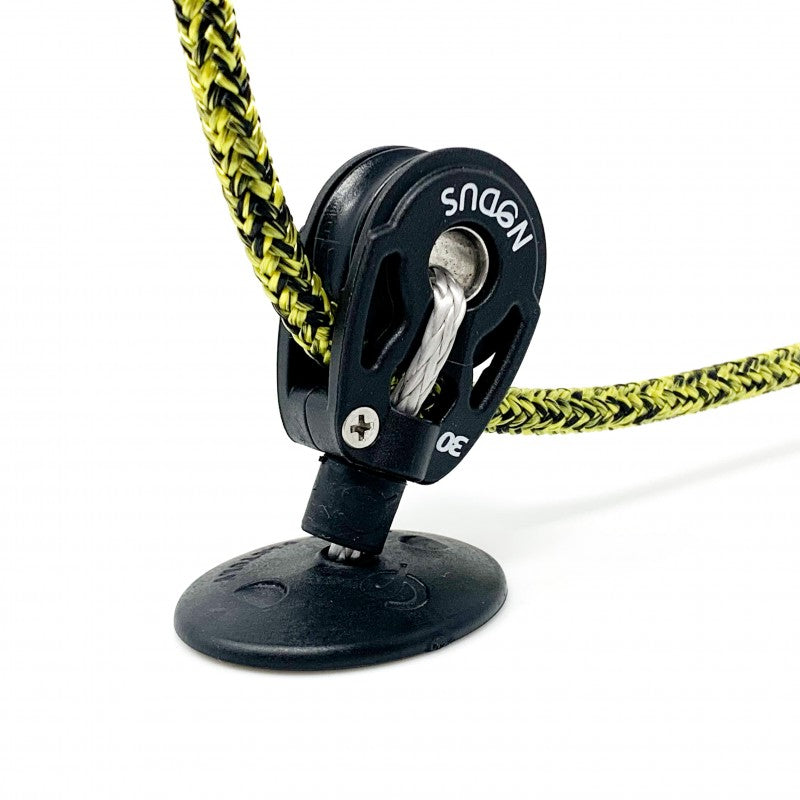

Fairlead with Block | Padeye Pad-Poulie® Pad-P 30
Fairlead with Block | Padeye Pad-Poulie® Pad-P 30
Couldn't load pickup availability
The HI-Tech® Pad-Pulley is an innovative fairlead with a self-aligning ball pulley.
Its unique design with a textile axle, automatically aligns your sheet for minimum friction.
Uses : For sheets and lines from 4 mm to 10 mm maximum
Sheet line
Furling line
Returns
Deck layout improvement
Option: Nodus Loc® glue - 1 tube (12ml) for 4 to 6 pads
Description
The Pad-Poulie® is designed for deflecting various types of rope (furling and reefing systems). This Hi-Tech ball threader is simply attached by glue or 2 screws.
- The Ball Pad-Pulley® offers improved performance, less friction and longer rope life with less chafing.
- Quick and easy to install on deck or mast without drilling, using Nodus-Loc® bi-component glue.
+ Application
- Friction-free deflection of ropes and halyards requiring frequent adjustment
- Allows ropes to be easily guided with little friction to cockpit cleats and jammers
Features:
- Breaking load: 2.50 kN to 3 kN (without screw) from 3.5 kN to 4.9 KN with 316L stainless steel screw and depending on support.
- Materials: Textile axle, stainless steel ball pulley, polymer body.
- Dimensions : Varies according to model
Data sheet
Features
- High-quality materials :
- Hi-Tech® pulley
- Body: HD polymer and HI-Tech® for optimum strength.
- Flanges: HD polymer for increased durability.
- Sheave: Composite I-Tech® & PA 6.6 for smooth, quiet operation.
- Connector: Dyneema® for abrasion and UV resistance.
- Double-row 316 stainless steel dynamic ball bearing: Provides smooth, quiet operation.
Padeye Pad-SX® - Articulated chainplate & textile lashing
- Padeye SX 45 in glass-filled technical PA
- Padeye SX 55 in PA11 bio-sourced carbon
- T-Bône TI6 eco-titanium length 20mm & length 25mm
- Textile Dyneema® 12 fx diameter 3 mm or 4 mm
Option :
- 316 L stainless steel screws: 2.9 mm / 18 mm (not supplied)
- Nodus-Loc® Bi-component glue (optional)
Properties :
- Strength: The Hi-Tech padeye and ball pulley are made of robust, weather-resistant materials.
- Lightweight: The system is compact, articulated and lightweight.
- Low coefficient of friction: Reduces rope wear and optimizes efficiency.
- Load alignment by textile connector: distributes the load evenly and preserves the rope.
- Durability: The system is designed for intensive use.
Ropes:
The Hi-Tech® Pad-Pulley is compatible with a wide range of ropes, including high-density polyethylene (HDPE), polyester, polypropylene and nylon.
The diameter of the rope must be compatible with the diameter of the pulley sheave.
Product Details
Advantages:
- Automatic alignment: The ball pulley automatically aligns with the sheet, reducing friction and wear.
- Easy installation: HI-Tech® Pad-Pulley can be bonded with Nodus-Loc® bi-component glue or screwed on.
- Versatile: The HI-Tech® Pad-Pulley can be used for a variety of applications, including sheets, halyards, sheaves and deck plan improvement.
- Lightweight and efficient: The HI-Tech® Pad-Pulley is lightweight and highly efficient.
- Robust and durable: The HI-Tech® Pad-Pulley is made from robust, weather-resistant materials.
